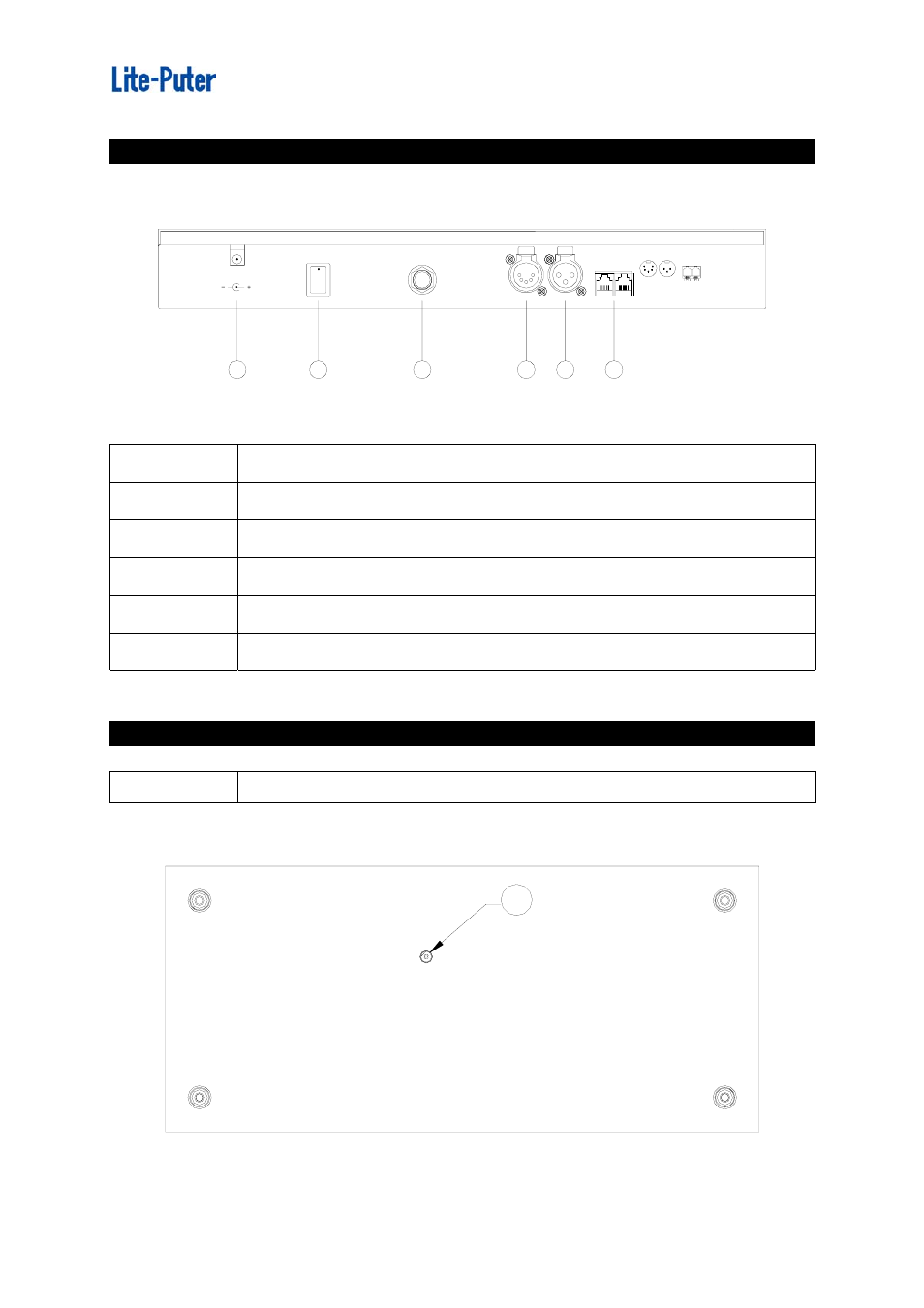

1-4 CX-1203 Rear panel
5
1
13
14
DC 12V
IN
OFF
1
17
16
15
18
DMX OUT
AUDIO IN
DMX OUT
5:NC
1:GND
1:GND
4:NC
2:Data-
3:Data+
3:Data+
2:Data-
4
3
2
3
2
4:GND
1
4
1
2
3
3
4
2
1:V+12V
2:Data+
3:Data-
CONTROL
ON
PUSH
PUSH
13
Power supply: DC 12V / 1A
14 Power
switch
15
Audio input: 100mV
16
DMX connector: XLR 5-PIN
17
DMX connector: XLR 3-PIN
18
DMX connector: PHONE JACK (RJ11)
1-5 CX-1203 audio sensitivity control
19
Audio sensitivity control
19
Lite-Puter
CX-1203 [EUM-A]
