OWC254 / OWC304

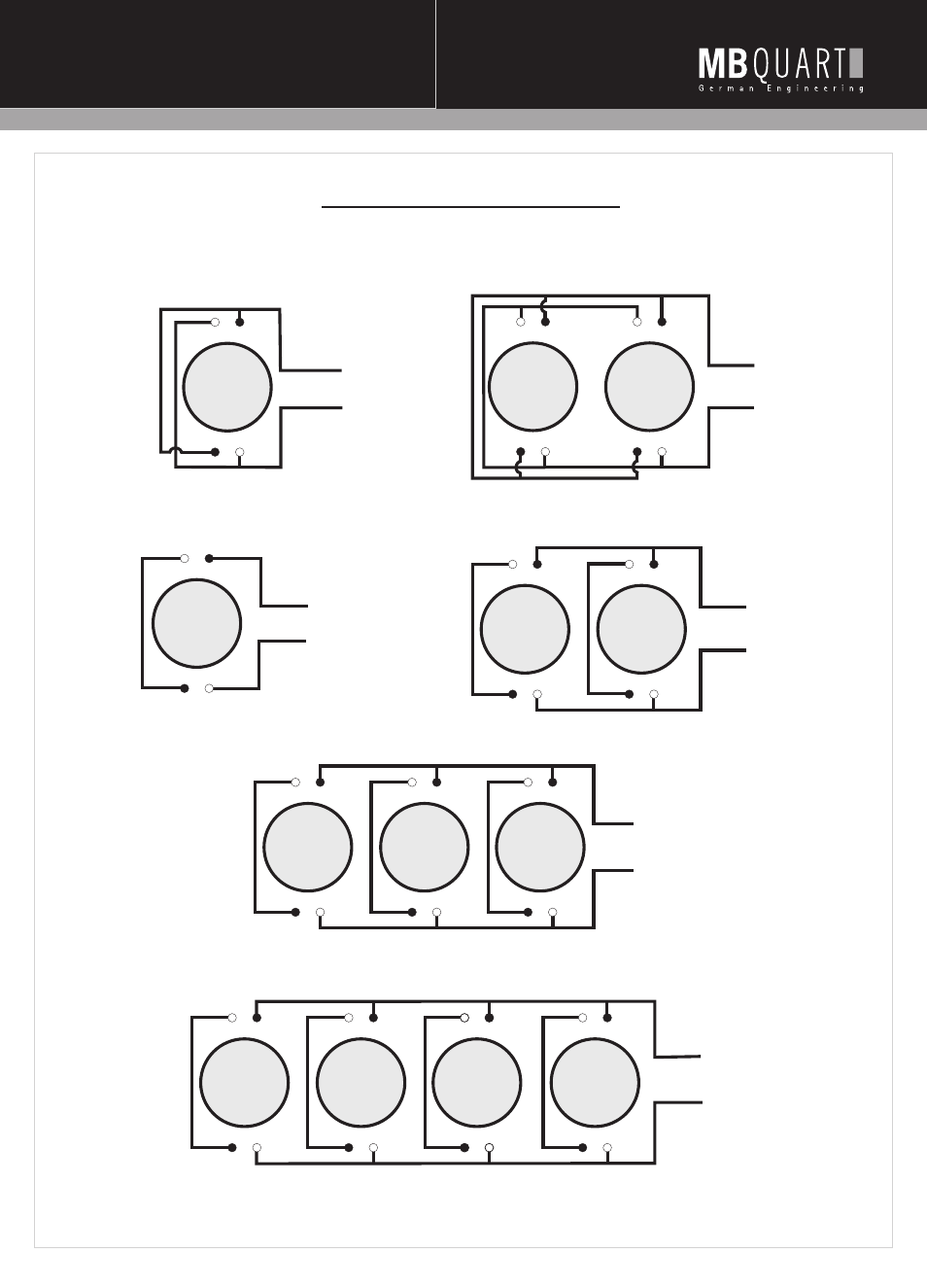

DVC 4-Ohm Coil Wiring

-

+

SERIES COILS

1+ 1-

2- 2+

8-Ohms

SERIES COILS / PARALLEL SUBS

1+ 1-

2- 2+

-

+

-

+

1+ 1-

2- 2+

2.66-Ohms

-

+

1+ 1-

2- 2+

1

2

3

SERIES COILS / PARALLEL SUBS

1+ 1-

2- 2+

-

+

-

+

1+ 1-

2- 2+

2-Ohm

1

2

-

+

1+ 1-

2- 2+

3

-

+

1+ 1-

2- 2+

4

PARALLEL COILS

-

+

1+ 1-

2- 2+

2-Ohms

1+ 1-

2- 2+

SERIES COILS / PARALLEL SUBS

-

+

-

+

1+ 1-

2- 2+

4-Ohms

1

2

PARALLEL COILS / PARALLEL SUBS

1+ 1-

2- 2+

-

+

-

+

1+ 1-

2- 2+

1-Ohm

1

2
