Mayline Cabinet Shelf User Manual
Cabinet/shelf assembly modular wall
PRINTED IN USA
1

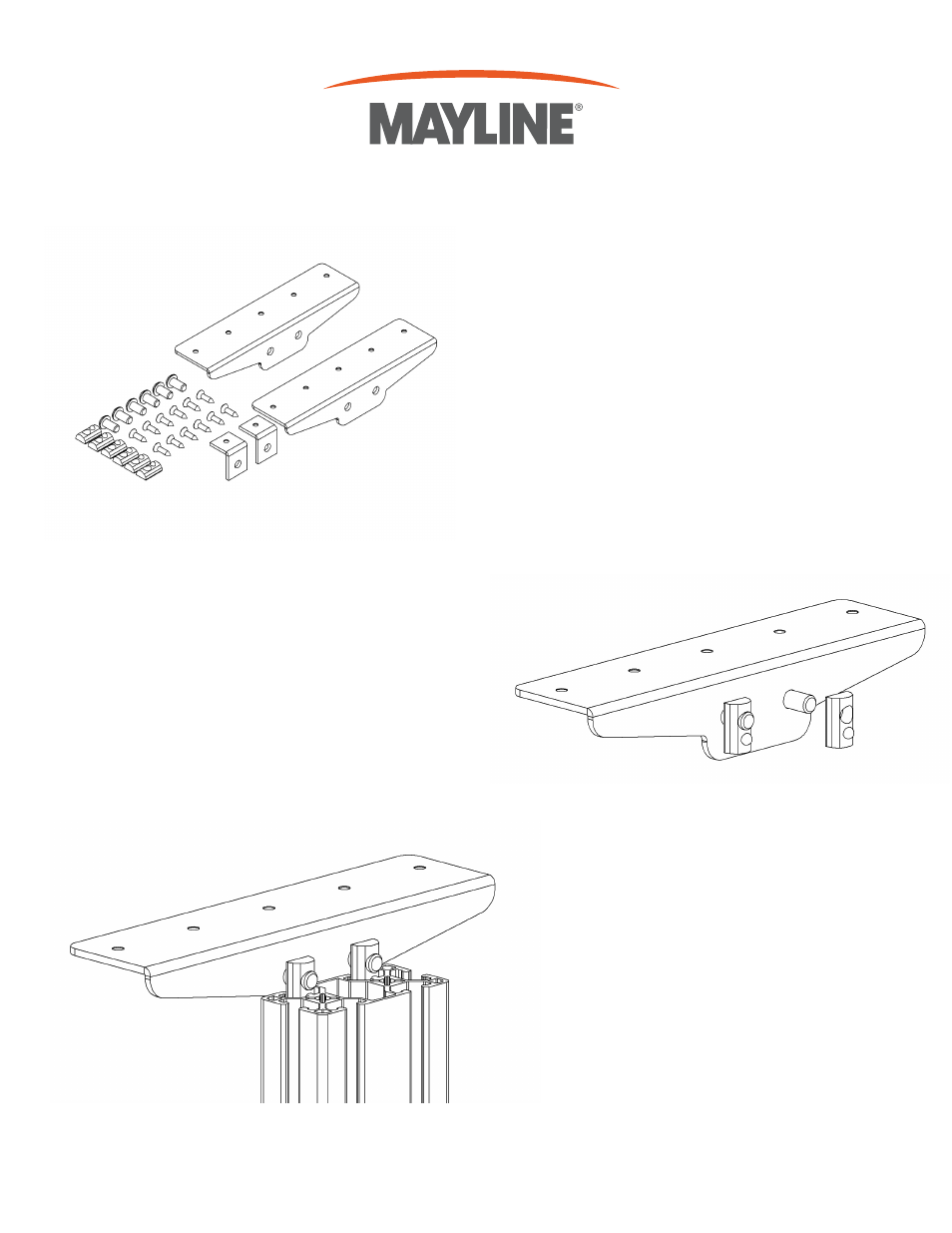

CABINET/SHELF ASSEMBLY MODULAR WALL
Hardware Bag - A891 9
Item
Qty Description
A
2 Modular wall bracket
B
2 Side clip
C
6 5/1 6 x 5/8 Soc button head screw
D
6 5/1 6 T-nut with ball
E
1 2 #1 0 x 3/4 Screw
A
B
C
1 . Assemble the bolt (item C) and T-nut (item D) to the
Modular wall bracket as shown. Do not tighten the nut.
Leave loose for assembly.
I863
4/1 4
E
D
2. Insert the bracket assembly into the top of
the upright as shown.
3. Slide down to desired location.
4. Repeat for other side.
5. Tighten the screws.
