Mayline Technology Wall User Manual
Mayline Furniture
PRINTED IN USA
1
TECHNOLOGY WALL EZTW

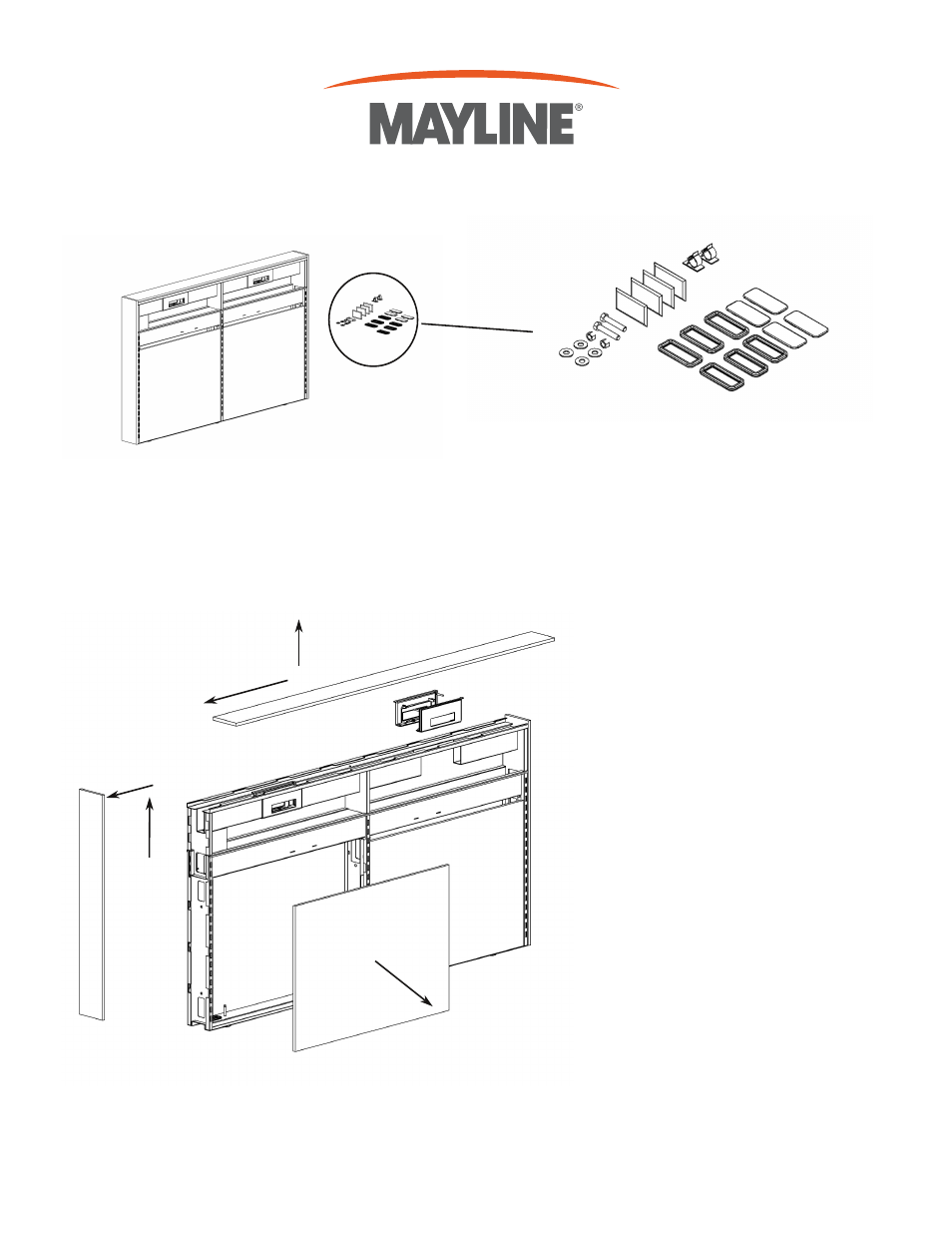

1 . Remove the side cladding by first
sliding up, then pulling out.
2. Remove the top cladding by
sliding the cladding to the side where
the side cladding was removed, then
lifting upward.
3. Remove the facing panel by
pulling outward.
I767 REV 2
9/4
1
2
2
1
1
Side Cladding
Top Cladding
Facing Panel
D
C
B
A
ITEM QTY DESCRIPTION
A
4
BLANK DATA CUTOUT COVER
B
2
GROMMETS
C
4
HOLE COVERS
D
2
WIRE CLAMPS
E
2
3/8"-1 6 X 2.0 HEX CAP SCREW
F
2
HEX NUT 3/8"-1 6
G
4
WASHER 3/8"
E
F
G
