Mayline TechWorks Tables User Manual
Page 2

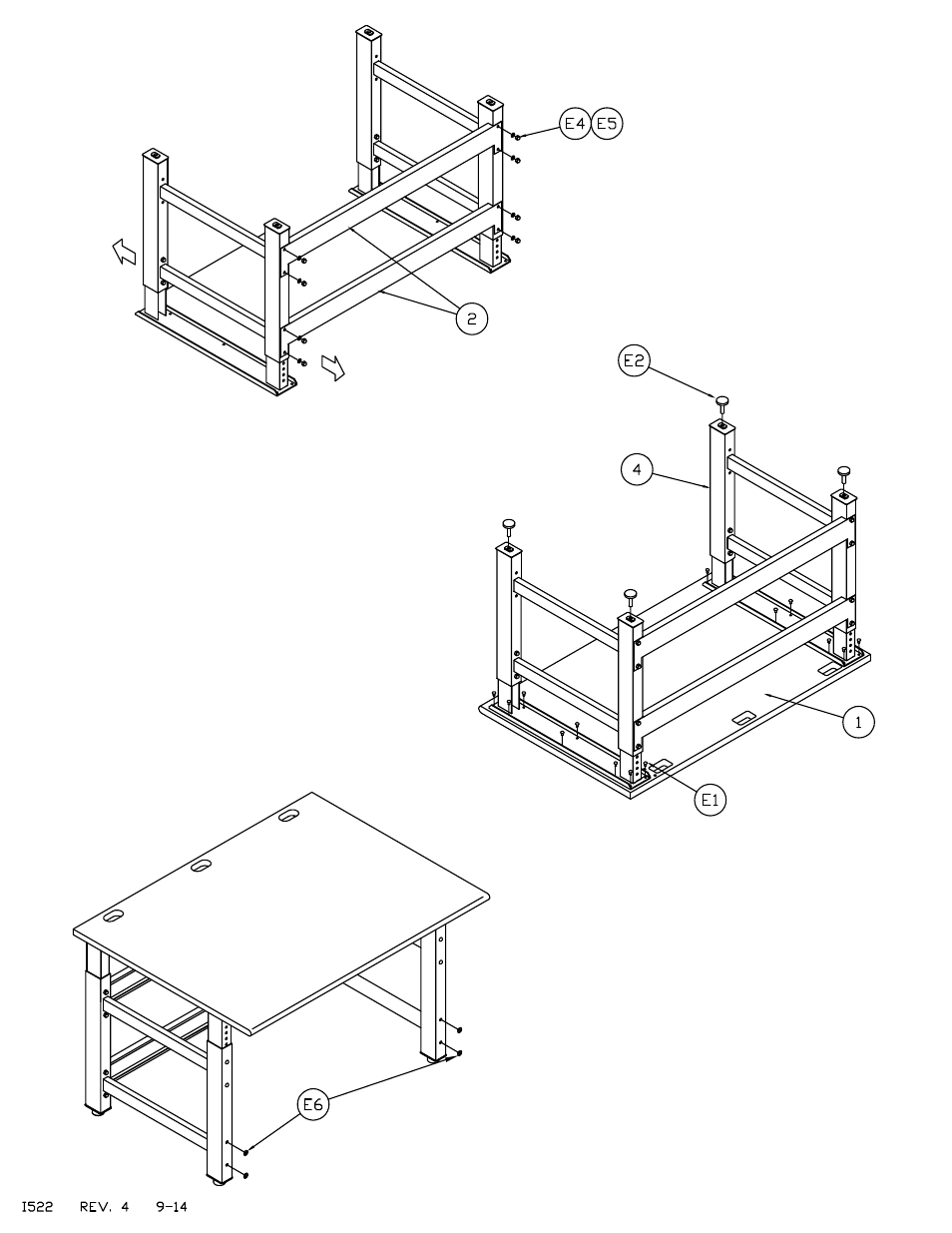

Fig. 3
5. Place Top (1) upside down.
Place leg assembly onto the Top.
Align holes in leg assembly with
inserts in the top. See Fig. 4
6. Fasten Leg Assembly to Top
using Screws (E1).
7. Screw Glides (E2) into threaded
holes in Lower Leg (4).
8. Tighten all hardware.
Fig. 4
9. Flip table into an upright position.
10. Insert Hole Plugs (E6) into
lower front of table legs.
FRONT
REAR
4. Place Spreaders (2) in position
over inserted screws at REAR as
shown in Fig. 3. Secure using Lock
Washers (E5) and Hex Nuts (E4) in
eight places. Do not tighten hardware
at this time.
