Mayline Corner Organizer Frame User Manual
Page 4
11. Attach Feet (4 and 5) to outer Uprights
(2) using Screws (E4). Do Not Tighten.
12. Using Screws (E1) attach feet to
worksurface by pushing feet tight against
the upright. Making sure upright is
perpendicular to floor.
13. Tighten Screws (E4).
14. Replace grommets into holes.
9. Place Connector (6) against corner
uprights and secure using Screws (E3)
and Nuts (E4).
10. Place Connector Cover (7) over
Connector and attach with Screws (E1).

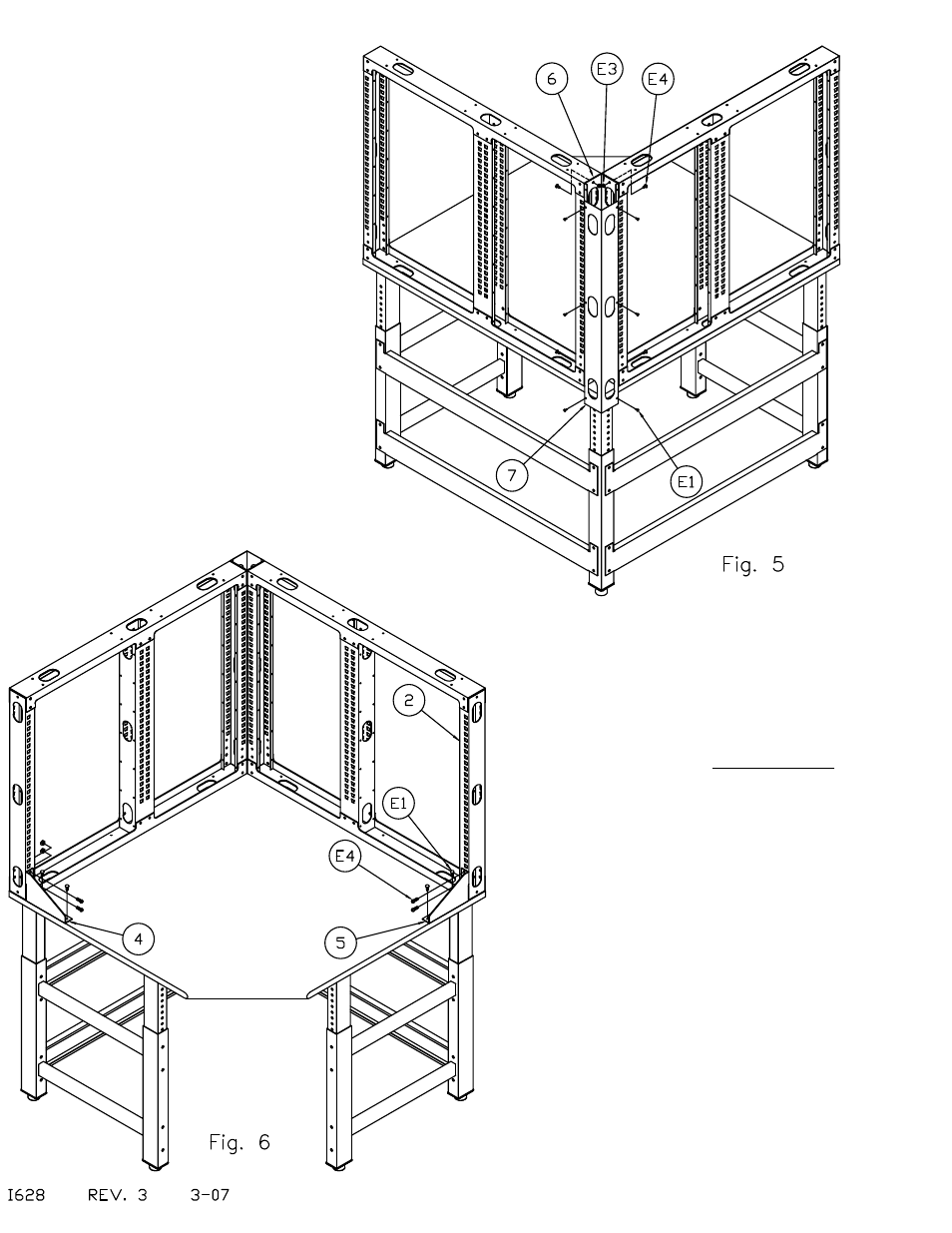

See Fig. 5
