Mayline Sliding Shelf User Manual
Page 2
(2)
1. Select the desired height where the shelf will be mounting in the
cabinet.

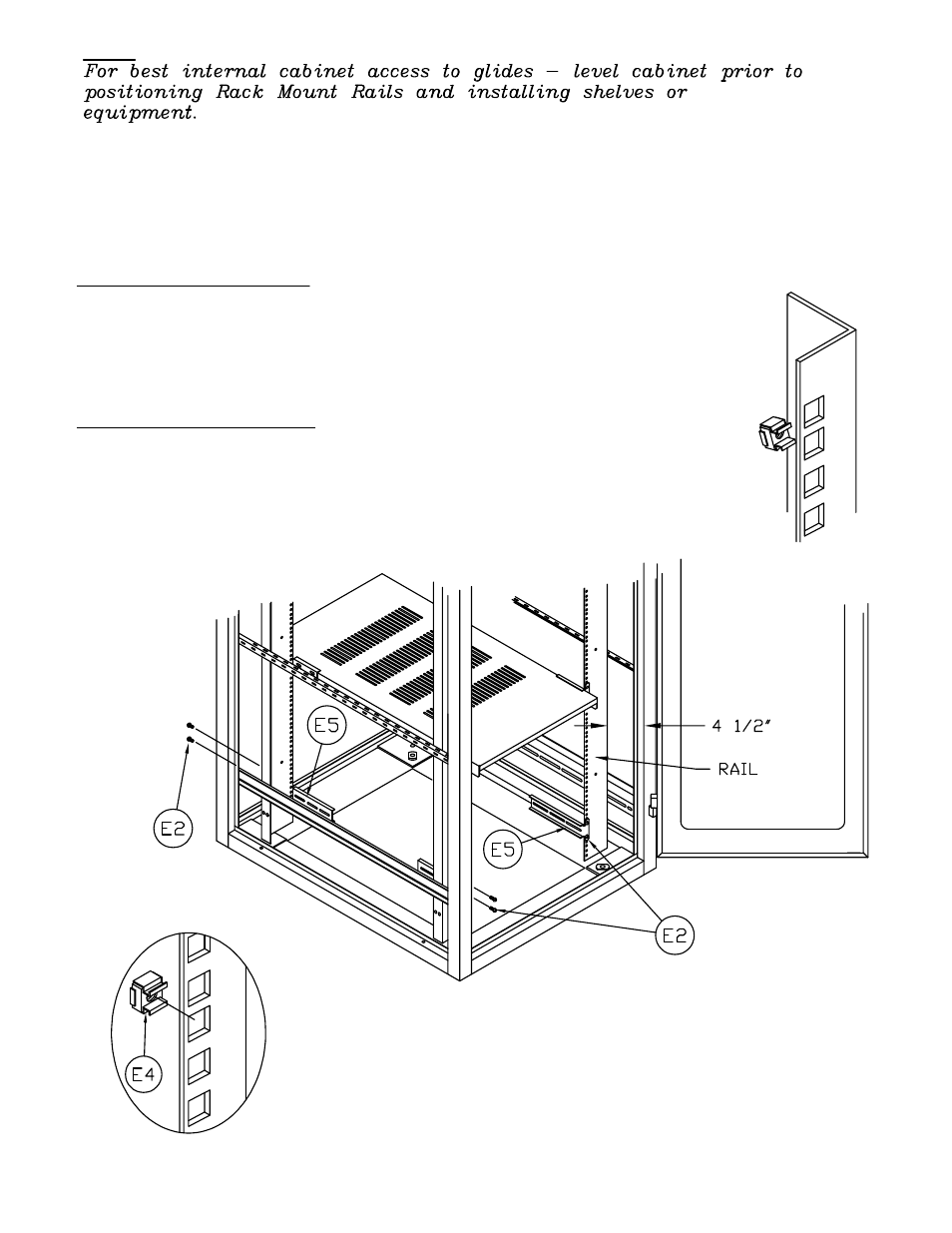

2. Install Cage Nuts (E4) into selected holes (two per support).
TO INSTALL CAGE NUTS (E4):
A.) Place bottom of Cage Nut through square hole from back side of rail
(see detail at right), allowing the lower portion of Cage Nut to grip the rail.
B.) Compress the upper portion of the Cage Nut with your thumb and
snap Cage Nut into place.
TO REMOVE CAGE NUTS (E4):
Compress Cage Nut with pliers.
3. Attach Shelf Supports (E5) with fasteners (E2) to rack mount rails in
cabinet.
NOTE:
