Mayline MVLCC Low Wall Cabinet Medina Series - Manual (Page 4)

6
5
7

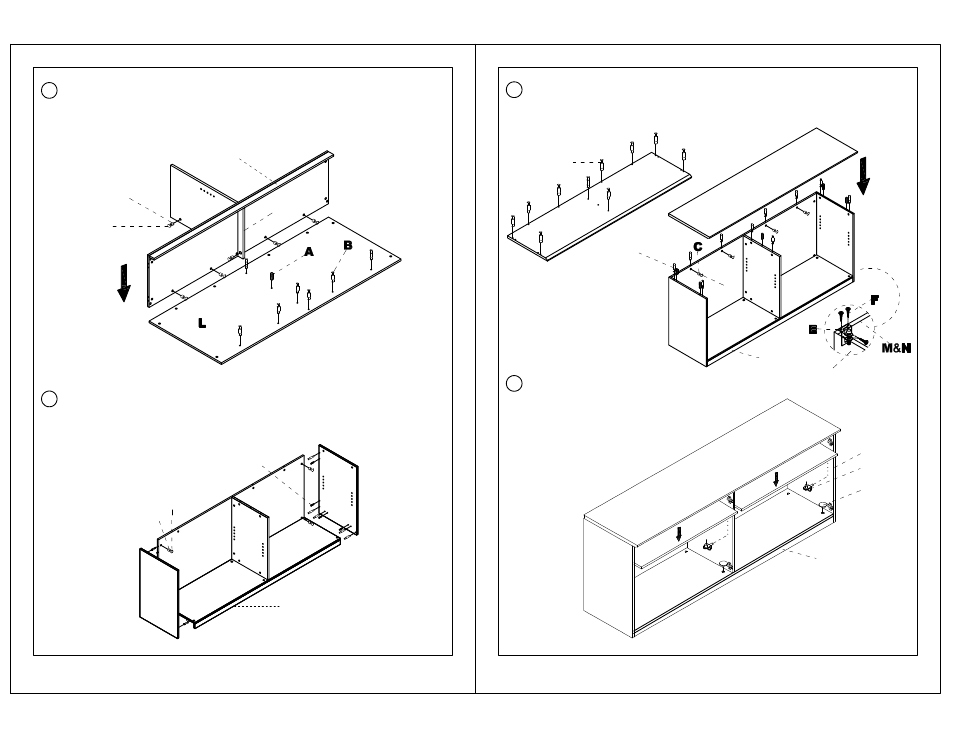

4 Insert Wood Dowels (A) into Back panel (L). Install the Cam Post (B) into Back panel
(L). Insert Cams (C) into center panel (O) and Bottom panel (I). Attach Back panel
(L) to center panel (O)
、 Bottom panel (I) and Bottom slat (K) by turning Cams (C).
Insert Wood Dowels (A) into Side panel (M & N). Install the Cam Post (B) into Side
panel (M & N). Insert Cams (C) into Back panel (L) Bottom panel (I) and Koe kick
(J). Attach Side panel (M & N) to Back panel (L) 、 Bottom panel (I) and Koe kick (J)
by turning Cams (C).
6 Insert Wood Dowels (A) into Top panel (P). Install the Cam Post (B) into Top panel
(P). Insert Cams (C) into Back panel
、 (L) Side panel (M & N) 、 Center panel (O).
Attach Top panel (P) to Back panel (L) 、 Side panel (M & N) 、 Center panel (O) by
turning Cams (C).
Install Shelf Support Pins (H) into Side Panels (M & N) and Center panel, Install
Adjustable Shelves (Q) .
