MARVEL Scientific 4EAF User Manual
Page 6
*24” (61 cm)
standard cabinet
depth
35-3/4”
(90.2 cm)
25-7/8” (65.7 cm)
* Depth dimension may vary depending on
each individual installation. A minimum depth
of 27-1/2” (69.9cm) is required with ample
provision for wiring.

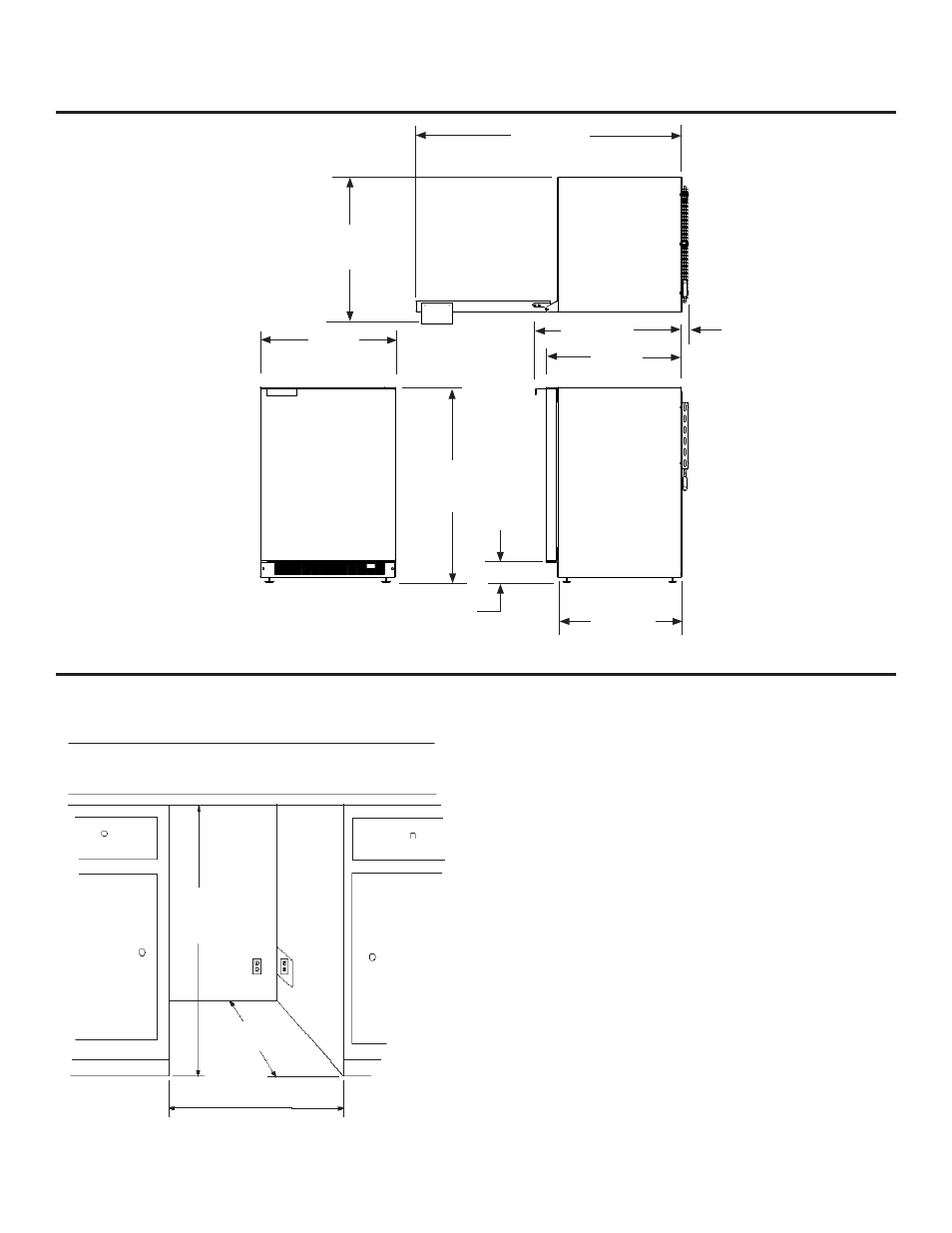

DIMENSIONS FOR 4EAF, 6EAR, 6ERF WITH SOLID DOOR
ROUGH IN OPENING FOR 4EAF, 6EAR, 6ERF WITH SOLID DOOR
23-7/8”
(60.7CM)
22”
(55.9cm)
24-3/32”
(64.19cm)
25-11/32”
(64.36cm)
33-3/4” to 34-3/4”
(85.7 to 88.3cm)
3” to 4”
(7.6 to 10.2cm)
47-3/32”
(119.61cm)
24-7/8”
(63.20cm)
1” (2.54cm)
