Lowell ACS2024-2C Series - Manual (Page 2)

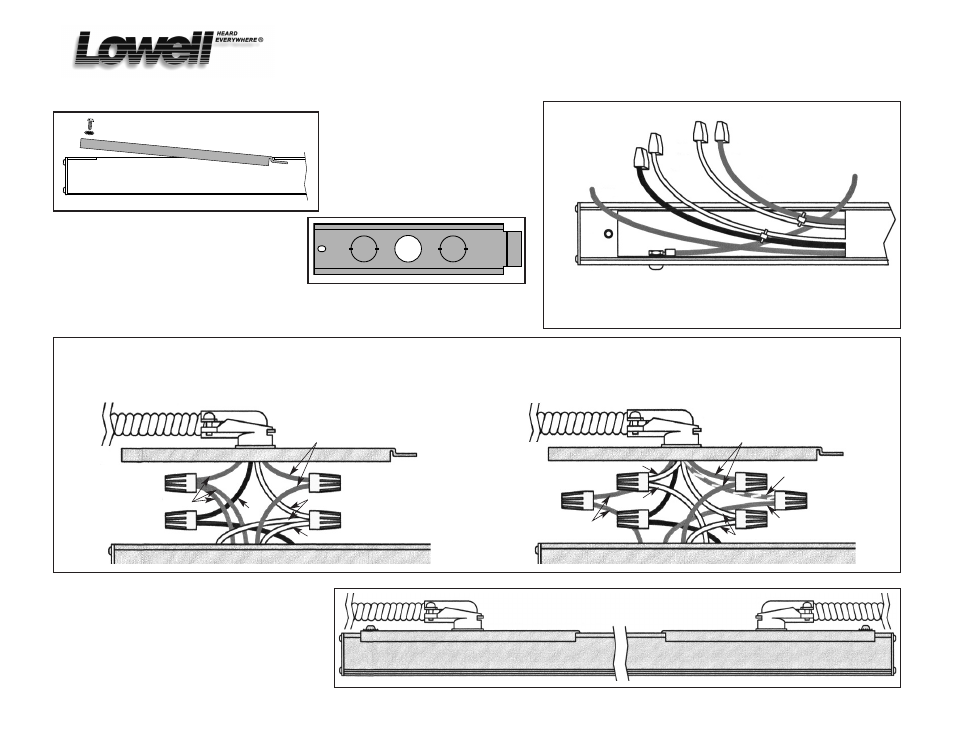

Remove cover
Remove knock-out(s) as needed
Pull out pigtails and
identify circuits
Multi-wire branch circuit (shared neutral)
Tuck wires inside chassis and
re-install cover assembly
Pigtails at opposite end can be
utilized as feed-through to
connect additional power strip.
Connect wires
(Two possible wiring options)
Independent circuits and isolated ground
Attach cover
Circuits must be on opposite phases to pre-
vent neutral oveload.
12-3 MC or equiv. with
appropriate connector
12-3 MC or equiv. with
appropriate connector
Isolated ground
connected to
receptacle ground
wire
Chassis ground wire
connected to safety
ground
Connect all
grounds together
ACS1524-2C, ACS2024-2C Series
15/20A Hardwired Mutli-Circuit AC Power Strips - ETL Listed
P/N 16099
pg 2 of 2
Printed in U.S.A. © 10-09-08
Circuit Two
(white recept.)
Chassis ground
(enclosure bonding)
Red
Green
Wht
Wht
Blk
Green
Receptacle
ground
Pull out pigtails, identify circuits.
NOTE: Factory installed push-in connectors suitable for SOLID wire ONLY. For stranded wire remove
and discard push-in connectors and use wire nuts or other suitable connectors (not included).
Green
Green w/yellow strips
Blk
Red
Lowell Manufacturing Company • 100 Integram Drive • Pacific, Missouri 63069 U.S.A. Call 800.325.9660, 636.257.3400 • Fax 636.257.6606 • Click www.lowellmfg.com
Green
Red
Green
Blk
Blk
Wht
Wht
Wht Wht
Wht
