Operation

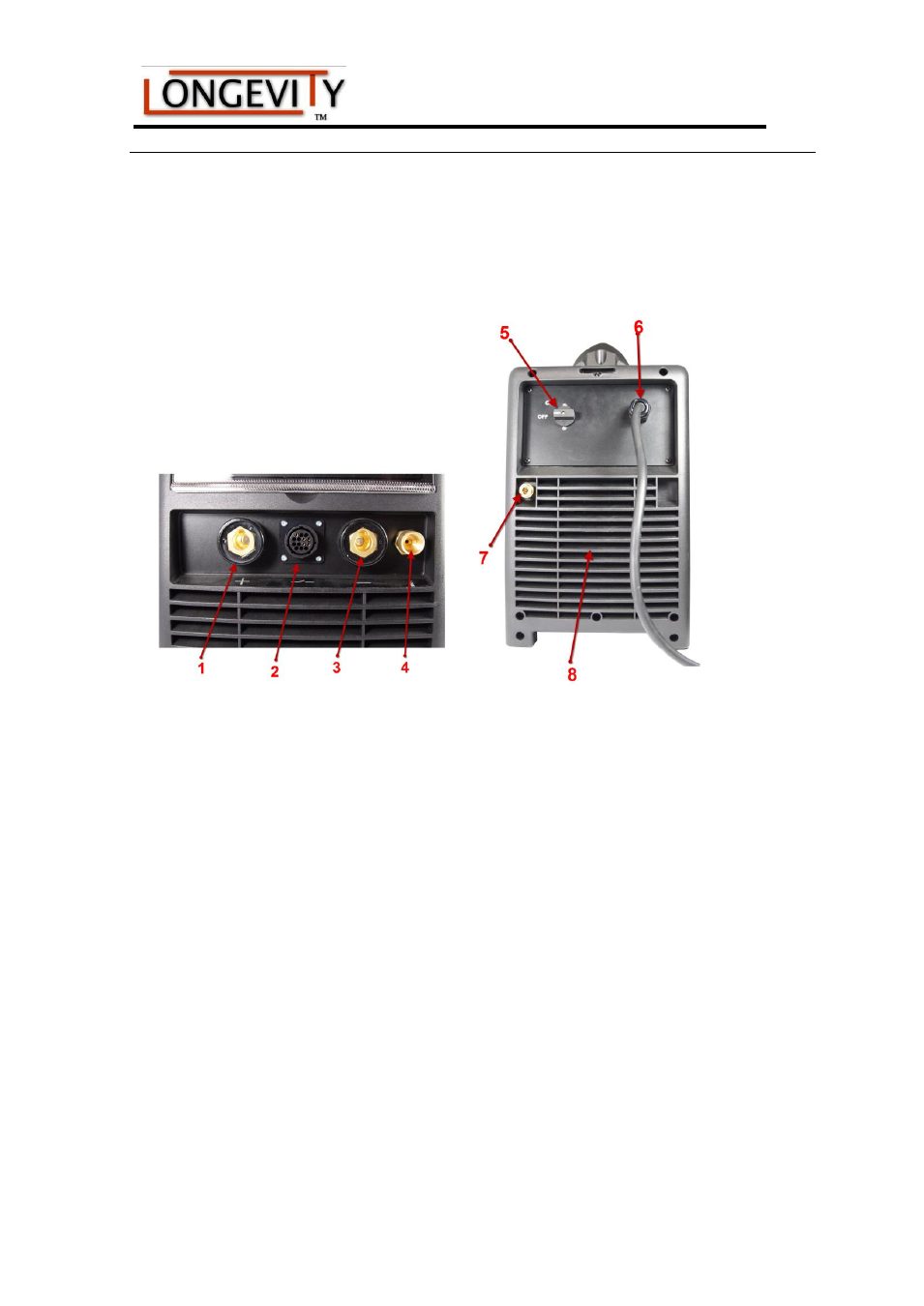

Layout for the panel
1 Positive Welding Terminal: Positive polarity output. It is important that the plug be inserted and
secured.
2 8 pin Control Socket: Is used to connect either to the trigger switch on the TIG torch, or to the
foot pedal
3 Negative Welding Terminal: Negative polarity output. It is important that the plug be inserted
and secured.
4 Shielding gas connector: Is connected to the gas input pipe of torch .
5 Power source switch: Switch to “ON”, the welder is turned on, while switch to “OFF”, the
welder is turned off.
6 Power source input: To connect to a 220v power source.
7 Shield gas input joint: Gas inlet for shielding gas
8 Fan: Is used for cooling the components and parts inside the welder.
