Cleaning, Replacement parts – Bunn WARMER STOVES WX1 User Manual

Page 2

CLEANING

The use of a damp cloth rinsed in any mild, non-abrasive, liquid detergent is recommended for cleaning all

surfaces on Bunn-O-Matic equipment.

REPLACEMENT PARTS

01908.0000.....Connector, Power Entry (WX1A & WX2A models)

40701.0001.....Cordset Assy (WX1 models)

40701.0006.....Cordset Assy (WX2 models)

04198.0000.....Feet (Set of 4) (WX1, WX1A and WX2 models)

24600.0000.....Feet (Set of 4) (WX2A models)

04226.0002.....Indicator Lamp, 125V (WX1 and WX2 models) (Use in .687” x 1.22” panel cut-out)

01089.0000.....Indicator Lamp, 240V (WX1A & WX2A models prior to July 1997) (Use in .687” x 1.22”

panel cut-out)

27691.0000.....Indicator Lamp, 250V (WX1A & WX2A models effective July 1997) (Use in .55” x 1.12”

panel cut-out)

04225.0002.....On/Off Switch (WX1 and WX2 models) (WX1A & WX2A models prior to July 1997) (Use in

.687” x 1.22” panel cut-out)

27689.0000.....On/Off Switch (WX1A & WX2A models effective July 1997) (Use in .55” x 1.12” panel cut-

out)

03656.0000.....Warmer Dish, Porcelain

01227.0000.....Warmer Element (WX1 and WX2 models)

01951.0000.....Warmer Element (WX1A & WX2A models)

05212.0000.....Warmer Retainer Plate

23325.0000.....Wiring Kit, Complete (WX1 models)

23326.0000.....Wiring Kit, Complete (WX2 models)

23327.0000.....Wiring Kit, Complete (WX1A models)

23328.0000.....Wiring Kit, Complete (WX2A models)

00707.0000.....Bushing, Strain Relief (WX1 and WX2 models)

32451.1 062012

WARMER

WHI

BLK

100 to 120 VOLTS AC

2 WIRE + GND

IND

BLK

GREEN

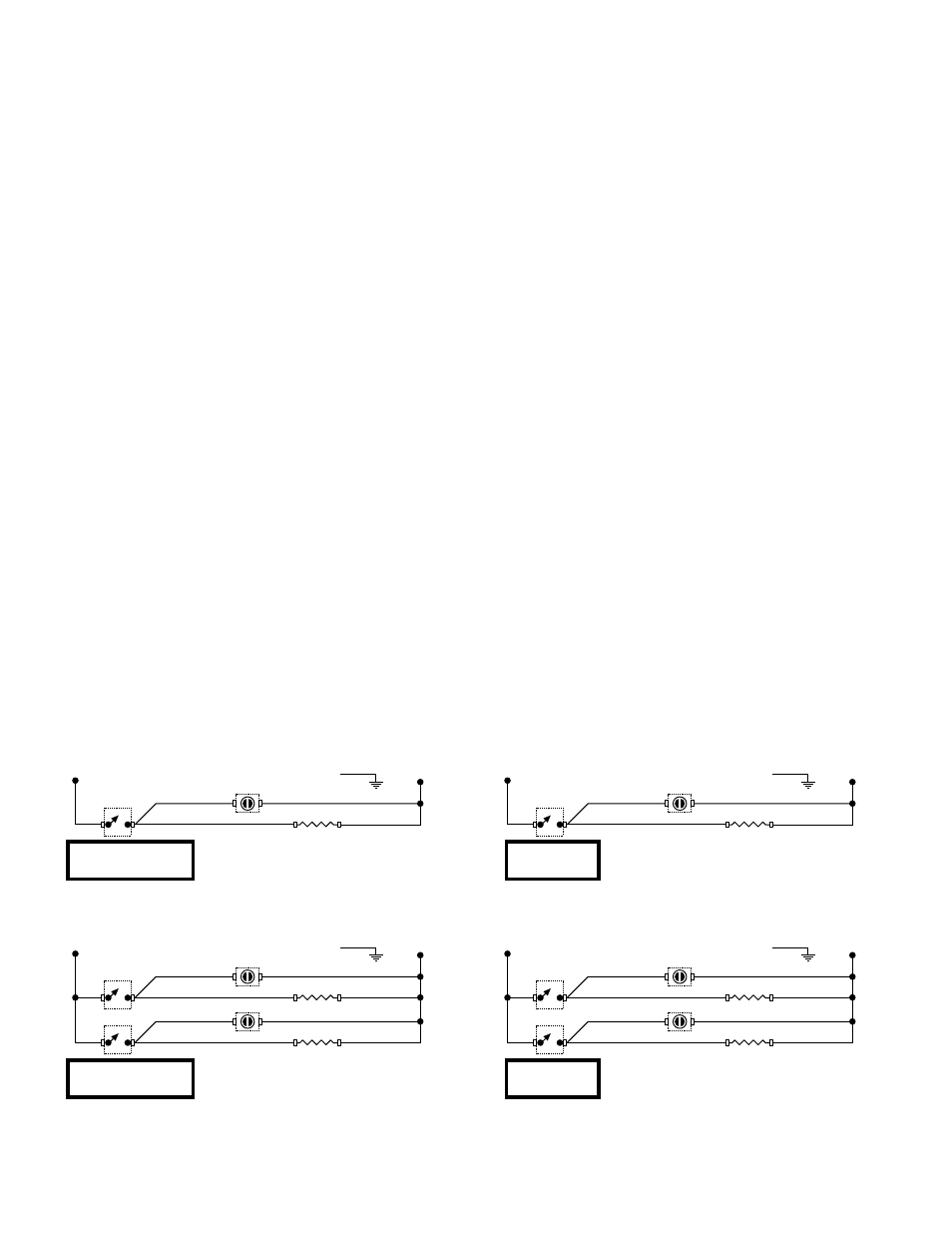

SCHEMATIC WIRING DIAGRAM WX1

WARMER

WHI

BLK

100 to 120 VOLTS AC

2 WIRE + GND

IND

BLK

GREEN

WARMER

WHI

BLK

IND

BLK

SCHEMATIC WIRING DIAGRAM WX2

WARMER

RED

BLK

230 VOLTS AC

2 WIRE + GND

IND

BLK

GREEN/YEL

SCHEMATIC WIRING DIAGRAM WX1A

WARMER

RED

BLK

230 VOLTS AC

2 WIRE + GND

IND

BLK

GREEN/YEL

WARMER

RED

BLK

IND

BLK

SCHEMATIC WIRING DIAGRAM WX2A
