21
VIDEO/Y C/Cb(B-Y) Cr(R-Y) S-VIDEO
R L (MONO)
AUDIO
VIDEO/Y C/Cb(B-Y) Cr(R-Y) S-VIDEO
R L (MONO)
AUDIO
VIDEO/Y C/Cb(B-Y) Cr(R-Y) S-VIDEO
R L (MONO)
AUDIO
VIDEO IN-1
VIDEO IN-2
MONIT
OR OUT
VIDEO EQUIPMENT
Video Cassette Recorder
DVD Player
Video Disc Player Satellite
TV Tuner
MONITOR
AUDIO
INPUT
AUDIO
OUTPUT S-VIDEO
OUTPUT
S-VIDEO
INPUT
SPEAKERS AUDIO AMP.
Video Camera
Y
OUTPUT
(BNC) VIDEO
OUTPUT
(BNC) C
OUTPUT
(BNC) Cb (B-Y)
OUTPUT
(BNC) Cr (R-Y)
OUTPUT
(BNC)
Y
INPUT
(BNC) VIDEO
INPUT
(BNC) C
INPUT
(BNC) Cb (B-Y)
INPUT
(BNC) Cr (R-Y)
INPUT
(BNC)

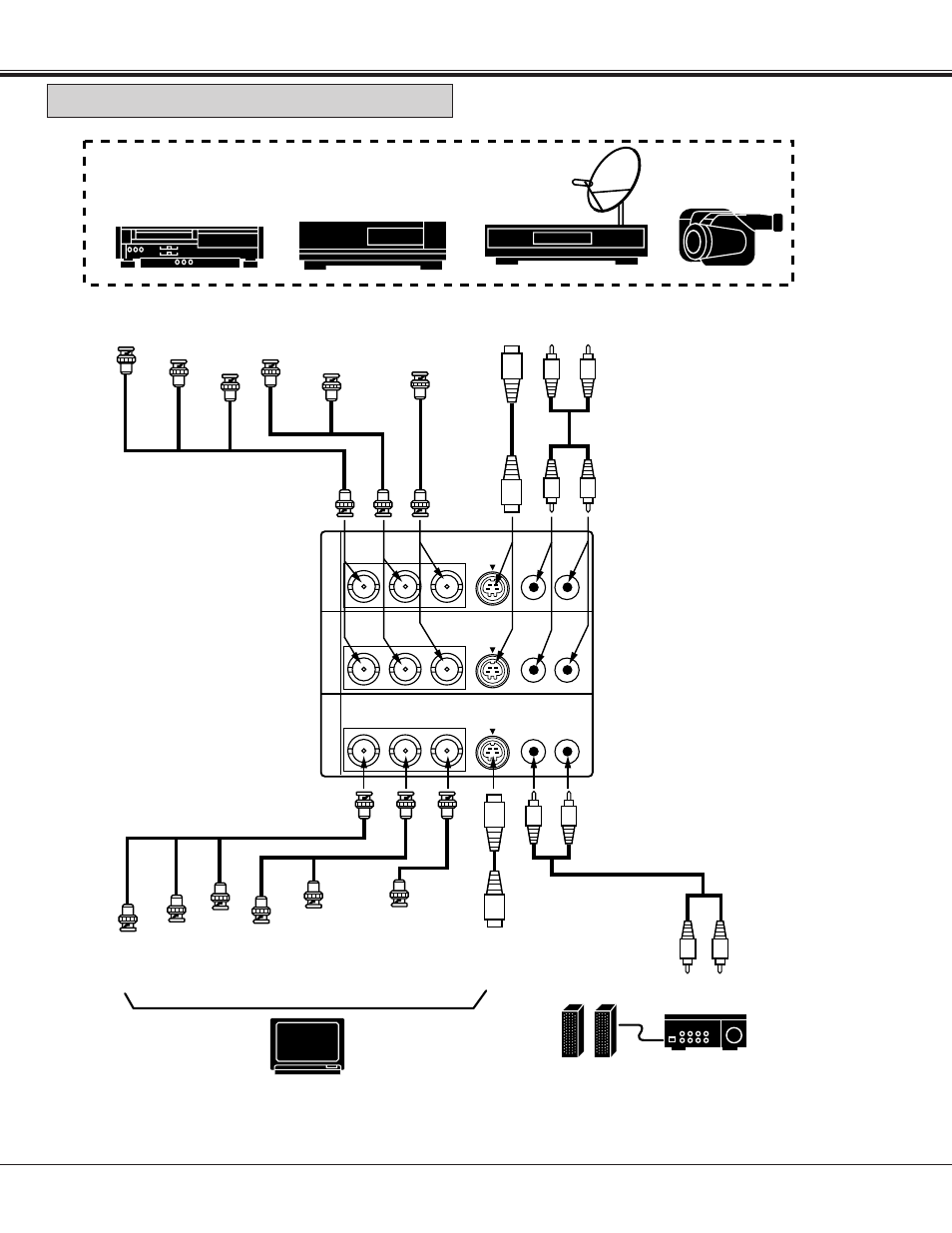

CONNECTING THE PROJECTOR
CONNECTING THE VIDEO EQUIPMENT
NOTE: When connecting the cable, the power cords of both the projector and the external equipment should be
disconnected from AC outlet. Turn the projector on before the peripheral equipment is switched on.
