Outdoor Fireplace Model No. WAF741SP
Appendix
A
© 2006 Blue Rhino Global Sourcing, LLC. All Rights Reserved. UniFlame ® is a registered trademark of Blue Rhino Global Sourcing, LLC. All Rights Reserved. WAF741SP-CHL-101 E
Parts List
1 Top
2 Cooking Grid
3 Spark Guard
4 Handle
5 Charcoal Grid
6 Bowl
7 Ash Door
8 Leg Plate Ring
9 Leg (3)

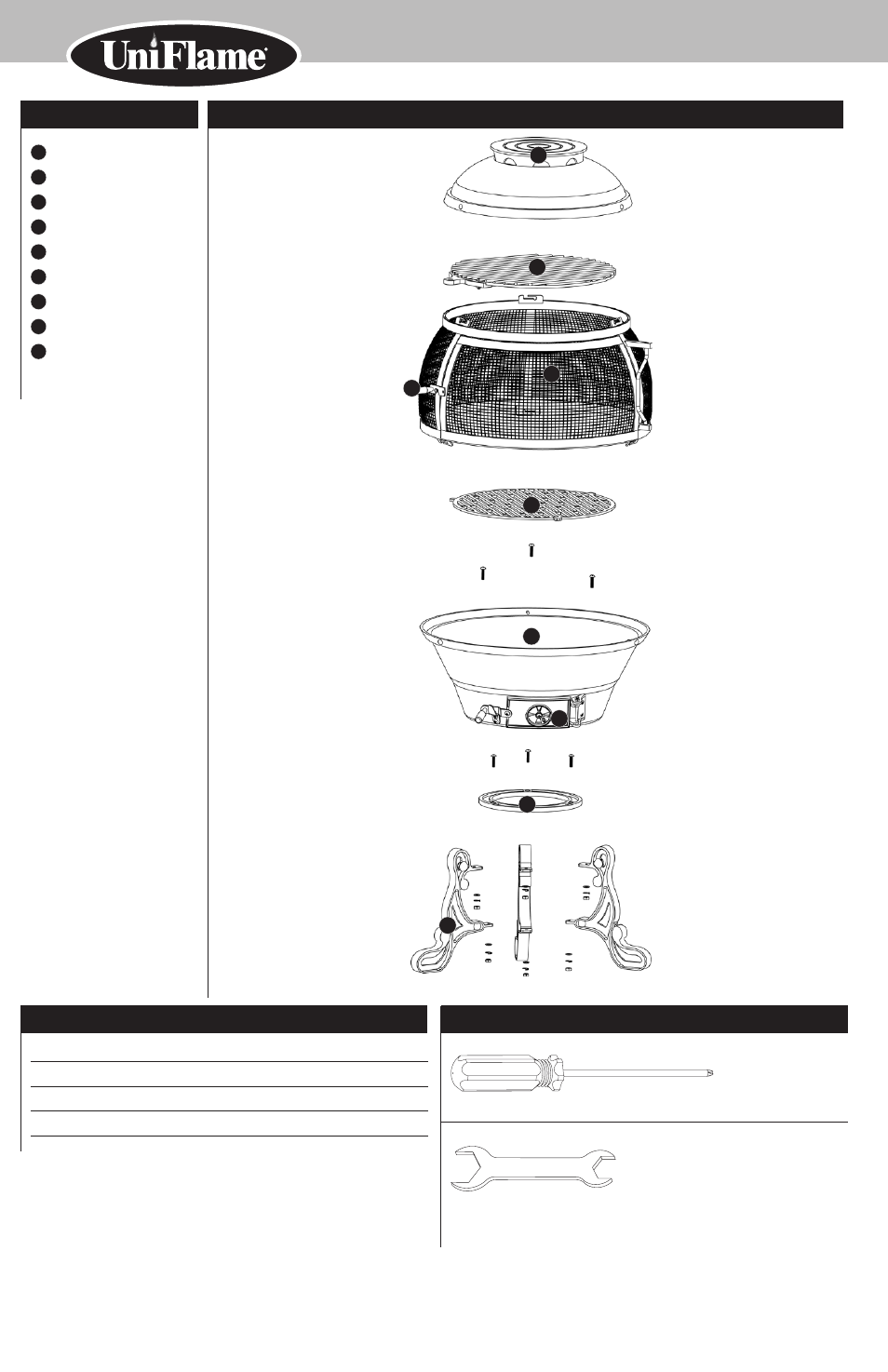

Exploded View
Hardware
A
Screw M6x25 Black Nickel Plated Phillips Truss Head 6 pcs
B
Nut M6 Black Nickel Plated 6 pcs
C
Washer M6 Black Nickel Plated 6 pcs
D
Lock Washer M6 Black Nickel Plated 6 pcs
Tools Required for Assembly (Included)
#2 Phillips Head Screwdriver
M8 Wrench
1
2
3
4
7
6
5
8
9
