13
4. Indicators and Connectors

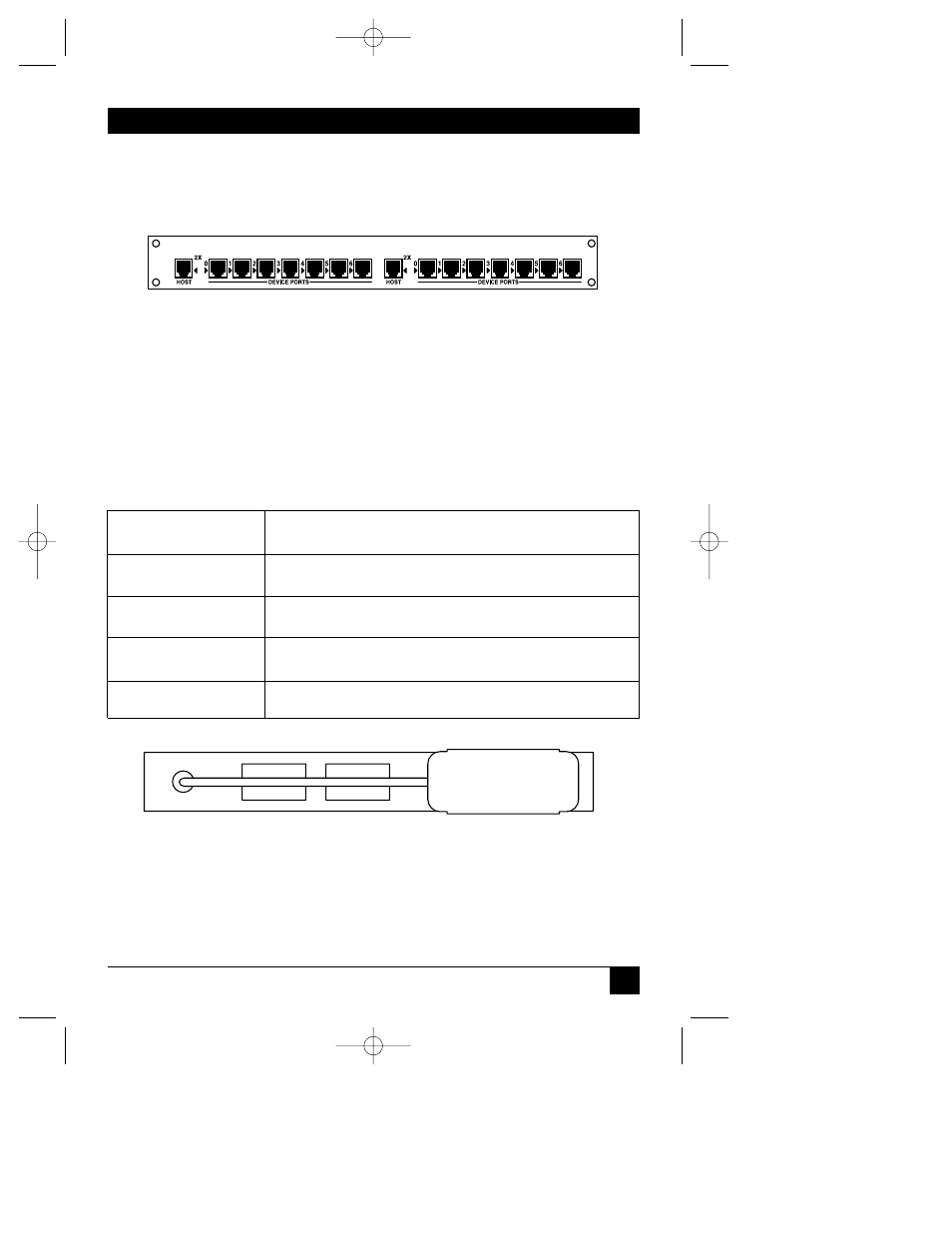

Figure 4-1. Front Panel of the Hub.
Table 4-1. LED Indicators and Connectors
Indicator or Connector
Function
Host Activity LED
Lights green when a signal is present in the host jack.
Device Activity LED
Lights green when a signal is present in a device jack.
Host Connector
UTP connection for the host (RJ-11 or RJ-45).
Device Connector
UTP connection for the device (RJ-11 or RJ-45).
Figure 4-2. Rear Panel of the Hub.
IIIIIIIIIIIIIIIIIIIIIIIIIIIIII
IIIIIIIIIIIIIIIIIIIIIIIIIIIIII
Active Star Hub
POWER
CHAPTER 4: Indicators and Connectors
Power
LED
DC Power
connection
Product
identification
label
FCC label
External
power supply
Host
Activity LED
and
connection
Host
Activity LED
and
connection
Device
Activity LEDs
and
connections
Device
Activity LEDs
and
connections
