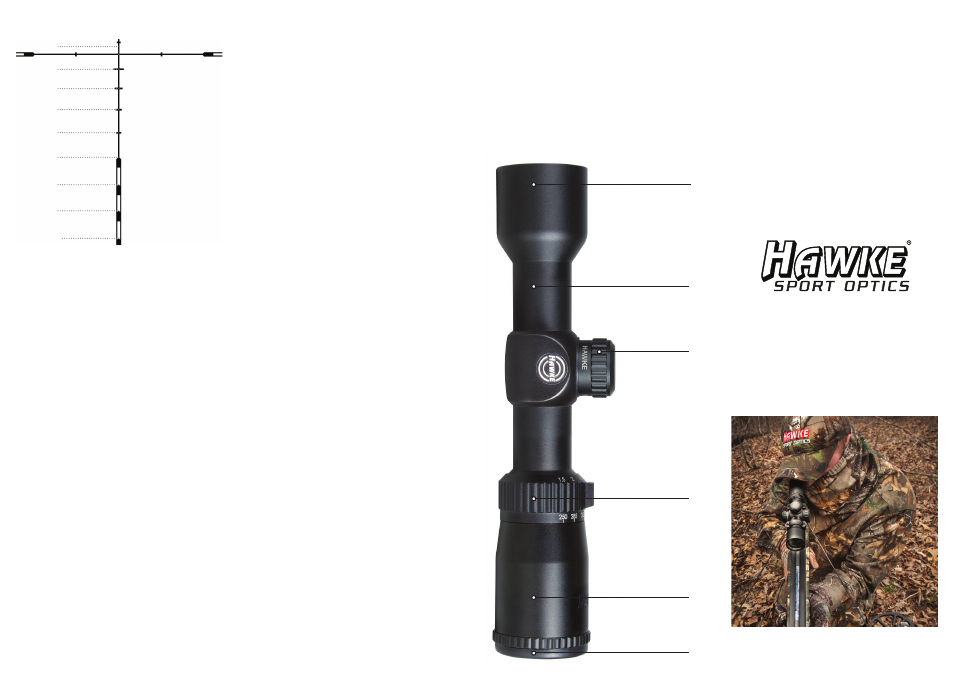

sCOPe feATURes

1. Objective lens
2. Ocular eyebell
3. Windage and elevation turrets
4. Crossbow speed ring
5. Fast focus ocular
6. mono-tube body

XB COMPACT MAP

1.5-5x32 CROssBOW sCOPe

UseR MANUAl

XB COMPACT MAP AIM POINTs

MAINTAINING YOUR sCOPe

Your scope is a precision instrument that
deserves a high level of care. Do not at-
tempt to disassemble or clean internally.

Keep the protective lens covers in place
when the scope is not in use.

The external optical surfaces should be
wiped clean occasionally with the lens cloth
provided or an optical quality lens paper.
Remove any external dirt or sand with
high pressure air and a soft brush to avoid
scratching the lens finish.

Wipe the scope with a damp cloth, then
with a dry cloth, then go over the metal
section of the scope with a silicone cloth in
order to protect against corrosion.

Always store the scope in a moisture-free
environment. Avoid storing the scope in
places such as the passenger compart-
ments of vehicles on hot days as the high
temperatures could adversely affect the
lubricants and sealants. Never leave the

scope where direct sunlight can enter
either the objective or the eyepiece lens as
damage may result from the concentration
(burning effect) of the sun’s rays.

BAllIsTIC ReTICle CAlCUlATOR (BRC)

The 1.5-5x32 XB Compact MAP reticle is
included in the free Hawke BRC software.
It is available for PC, MAC and iPhone and
can be downloaded from hawkeoptics.com
or the Appstore. The BRC allows users to
determine aim points when shooting cross-
bows with speeds from 250 fps - 425 fps.

sPeCIfICATION

Code.............................................................
Model..........................................................
Tube Diameter.............................................
Weight..........................................................

Code.............................................................
Model..........................................................
Tube Diameter..................................................
Weight..........................................................

Reticle......................................
Magnification............................................
Field of View (ft@100yds)....................
Click Value...............................................
Eye Relief............................................................
Length.............................................................
Waterproof...........................................................

Hawke Sport Optics is a registered trade-
mark. The XB Compact MAP reticle is ©
Hawke Sport Optics.

Hawke Sport Optics, 6015 Highview Drive,
Suite G, Fort Wayne, Indiana 46818, USA.

HK3261

1.5-5x32

30mm

12.6 oz.

HK3257

1.5-5x32

1 in.

11.8 oz.

XB Compact MAP

1.5x - 5x

75 - 22.5

1/2 M.O.A

3 in.

8.3 in.

Yes

WWW.HAWkeOPTICs.COM

R

1.

6.

3.

4.

2.

5.

20 yds

70 yds

80 yds

90 yds

100 yds

60 yds

50 yds

40 yds

30 yds
