XB30 SR
1-5x24 CROSSBOW SCOPe
USeR MANUAl
XB30 SR AIM POINTS
MAINTAINING YOUR SCOPe
Your scope is a precision instrument that
deserves a high level of care. Do not at-
tempt to disassemble or clean internally.
Keep the protective lens covers in place
when the scope is not in use.
The external optical surfaces should be
wiped clean occasionally with the lens cloth
provided or an optical quality lens paper.
Remove any external dirt or sand with
high pressure air and a soft brush to avoid
scratching the lens finish.
Wipe the scope with a damp cloth, then
with a dry cloth, then go over the metal
section of the scope with a silicone cloth in
order to protect against corrosion.
Always store the scope in a moisture-free
environment. Avoid storing the scope in
places such as the passenger compart-
ments of vehicles on hot days as the high
temperatures could adversely affect the
lubricants and sealants. Never leave the

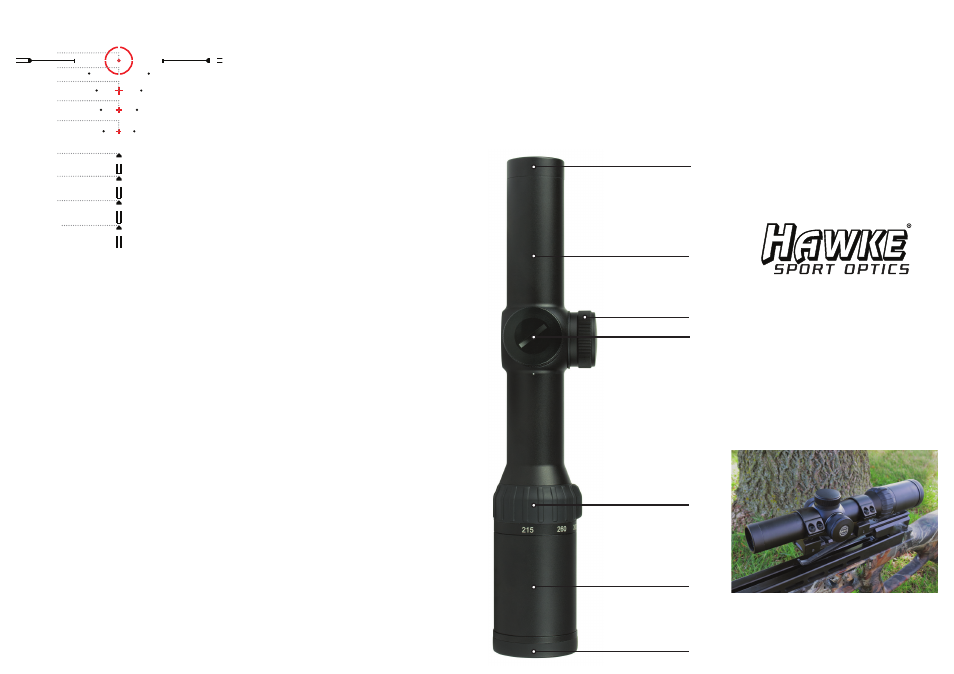

SCOPe feATUReS
1. Objective lens
2. Ocular eyebell
3. Windage and elevation turrets
4. Illumination control
5. Crossbow speed ring
6. Fast focus ocular
7. 30mm mono-tube body
scope where direct sunlight can enter
either the objective or the eyepiece lens as
damage may result from the concentration
(burning effect) of the sun’s rays.
BAllISTIC ReTICle CAlCUlATOR (BRC)
The 1-5x24 XB30 SR reticle is included in
the free Hawke BRC software. It is avail-
able for PC, MAC and iPhone and can be
downloaded from hawkeoptics.com or the
Appstore. The BRC allows users to deter-
mine aim points when shooting crossbows
with speeds from 215 fps - 450 fps.
MAGNIfICATION / fPS
1x = 215, 1.25x = 240, 1.5x = 260, 1.75x =
280, 2x = 300, 2.25x = 315, 2.5x = 330, 2.75x
= 345, 3x = 360, 3.25x = 375, 3.5x = 390,
3.75x = 400, 4x = 410, 4.25x = 420, 4.5x =
430, 4.75x = 440, 5x = 450.
SPeCIfICATION
Code.............................................................
Model...........................................
Reticle.........................................................
Illumination.......................................................
Magnification...............................................
Tube Diameter.............................................
Field of View (ft@100yds)..................
Click Value...............................................
Eye Relief............................................................
Length...........................................................
Weight..........................................................
Waterproof...........................................................
Hawke Sport Optics is a registered trade-
mark. The 1-5x24 XB30 SR reticle is © Hawke
Sport Optics.
Hawke Sport Optics, 6015 Highview Drive,
Suite G, Fort Wayne, Indiana 46818, USA.
20
30
40
50
60
70
80
90
100
HK3249
XB30 SR 1-5x24
XB30 SR
Red
1x - 5x
30mm
100 - 20.9
1/2 M.O.A
4 in.
10.6 in.
16.5 oz.
Yes
