Grayhill 6.5-inch VGA Display for Vehicles - Manual (Page 2)

specifications subject to change
6.5
[165,10]
www.grayhill.com
Grayhill, Inc.
561 Hillgrove Avenue phone: (708) 354-1040
LaGrange, Illinois 60525 fax: (708) 354-2820 Bulletin 1129
Rev 06/14

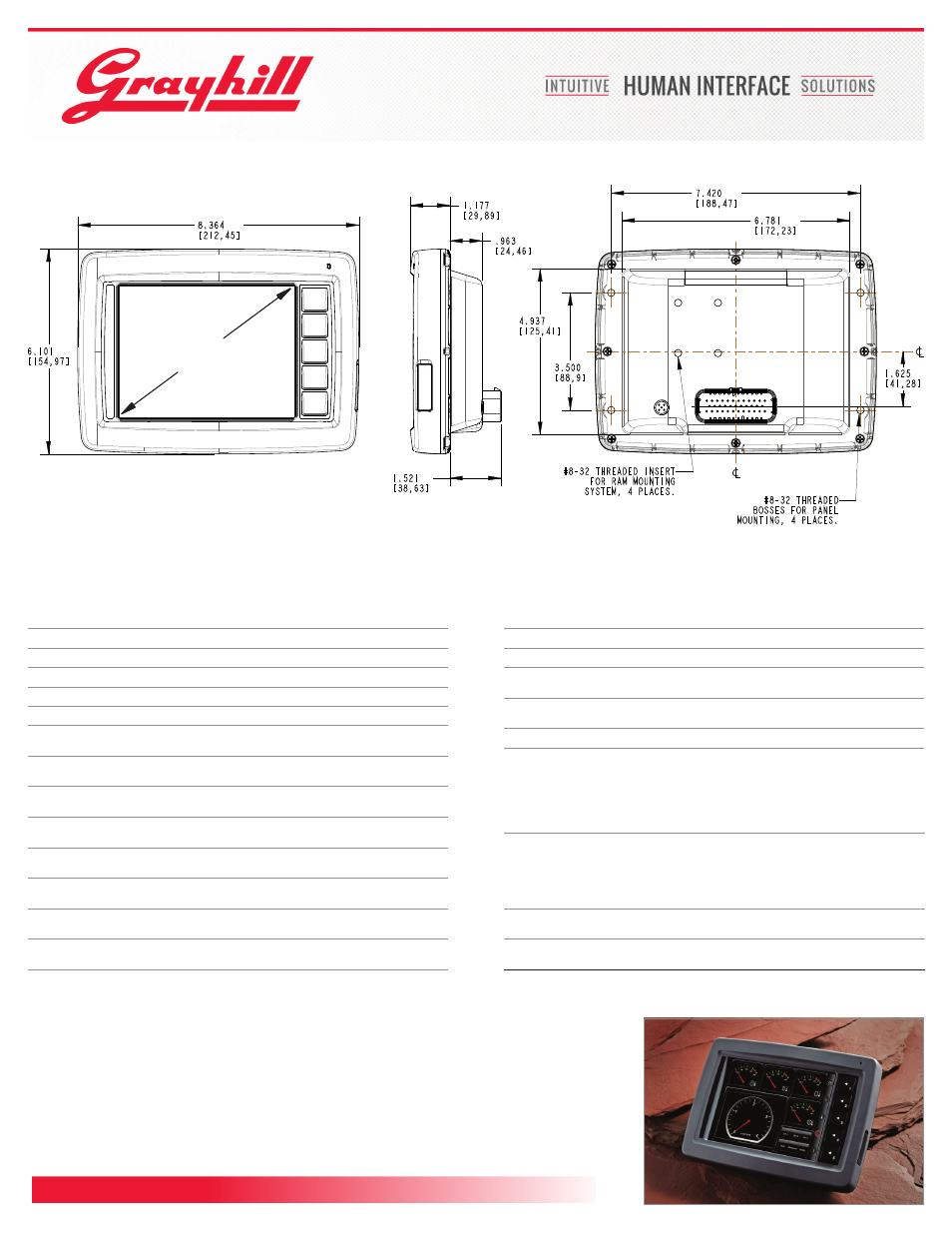

DIMENSIONS
Vibration, Random ANSI/ASAE
EP455 5.15.1
2h each axis @52.4m/s2 RMS overall accel-
eration and spectral power density of 2m2/
s3 from 50Hz to 2000Hz
Vibration, Sinusoidal ANSI/ASAE
EP455 5.15.2
A logarithmic sweep from 10Hz to 2000Hz
to 10Hz over a period of 20 minutes for
4 hours in each of 3 orthogonal axes with
amplitude 1.5mm from 10Hz to 40Hz and a
constant acceleration of 35m/s2 RMS from
40Hz to 2KHz
Shock / Crash Safety ANSI/ASAE
EP455 5.14
11ms half sine pulse of 490 m/s2 in 3
perpendicular axes
Drop ANSI/ASAE
EP455 5.14.2 Level 1
Drop component 400 mm onto a hardwood
benchtop on all practical edges.
MECHANICAL PERFORMANCE
Alternator Field Decay ANSI / ASAE EP455 Sec 5.11.2
ESD ANSI / ASAE EP455 Sec 5.12 Level 2
Radiated Immunity ANSI / ASAE EP455 Sec 5.16 Level 1
Broadband Radiated
Emissions
ISO14982 Sec 6.4
Narrowband Radiated
Emissions
ISO 14982 Sec 6.5
Conducted Emissions SAE J1113-41 Class 2
ELECTRICAL PERFORMANCE SPECIFICATIONS
(CONTINUED)
Maximum Load ANSI / ASAE EP455 Sec 5.1.1 T(min) = -40C, T(max) = +65C
Over-voltage ANSI / ASAE EP455 Sec 5.10.2 Level 1, extended to 36V
Reverse Polarity ANSI / ASAE EP455 Sec 5.10.3 extended to -36V
Short-circuit Protection ANSI / ASAE EP455 Sec 5.10.4 extended to 36V
Starting Profile ISO 16750-2 Sec. 4.6.3 12V, Code C / 24V Code E
Battery-less Operation ANSI / ASAE EP455 Sec 5.11.3 Level 1
Load Dump ISO 7637-2 Pulse 5b Us = 174V, Ri = 2 Ohms, Td = 350mS,
Us* = 70V
Switching Spikes ISO 7637-2 Pulse 3a and 3b Pulse 3a: Us = -200V, Pulse 3b: Us =
200V, 3000 reps
Wire Harness Induc-
tance
ISO 7637-2 Pulse 2a Us = 50V, t1 = 5s, 60 reps
Motor Shutdown
Transients
ISO 7637-2 Pulse 2b Us = 20V, t1 = 5s, Ri < .05 Ohms,
60 reps
Wire Harness Induc-
tance Switching
ISO 7637-3 Pulse a and b Pulse a: –80V, Pulse b: 80V, Class
A, 6 min.
Inductive Load Switch-
ing
ANSI / ASAE EP455 Sec 5.11.4 Level 1
Mutual Coupling
(Power)
ANSI / ASAE EP455 Sec
5.11.6.1
Level 2
Mutual Coupling (Sig-
nal/ Input)
ANSI / ASAE EP455 Sec
5.11.6.2
ELECTRICAL PERFORMANCE SPECIFICATIONS
WEIGHT
2.2 lbs.
POWER CONSUMPTION
8.5 W typical
MOUNTING INFO
Use M6 Nut (1mm pitch)
Max Torque 25 in-lbs
