Oit ca ble routing 6, Other steps to im prove noise im mu nity 6, Oit cable routing – B&B Electronics MAP450D User Manual

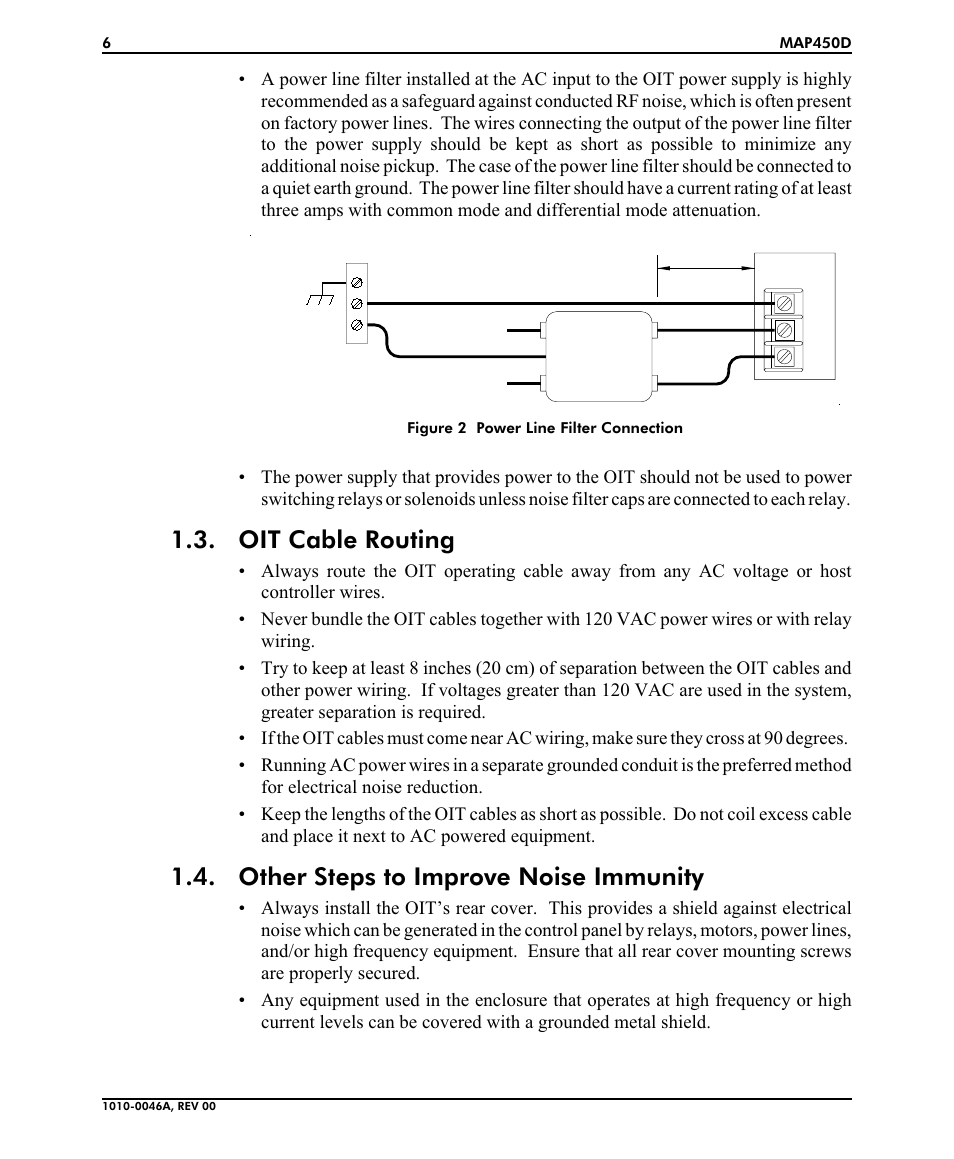

Page 6: Other steps to improve noise immunity

Text mode
Original mode

Oit ca ble routing 6, Other steps to im prove noise im mu nity 6, Oit cable routing | Other steps to improve noise immunity | B&B Electronics MAP450D User Manual | Page 6 / 20
