Page 13 of 25 General Machine Products Co., Inc.

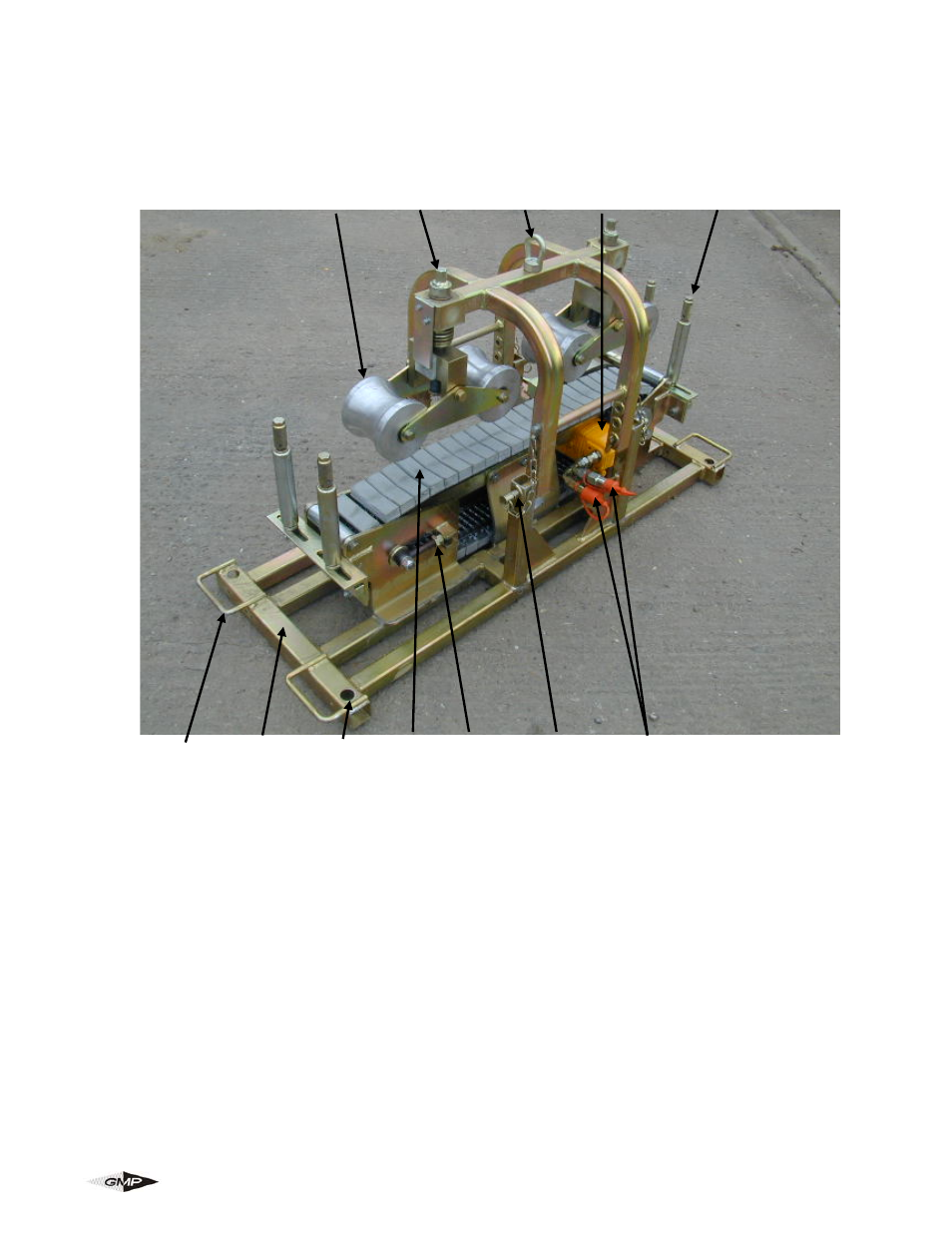

9.0 EQUIPMENT LAYOUT
1 BASE FRAME
2 DRIVE BELT
3 VERTICAL END ROLLER (CABLE GUIDE)
4 UPPER ROLLER ASSEMBLY
5 UPPER ROLLER ADJUSTING SCREW
6 LIFTING
HANDLE
7 UNIT LIFTING EYE BOLT
8 GROUND ANCHOR / CABLE PUSHER RESTRAINING HOLE
9 HYDRAULIC
MOTOR
10 HYDRAULIC HOSE CONNECTIONS
11 UPPER ROLLER FRAME RETAINING PIN
12 DRIVE CHAIN ADJUSTING NUT
4 5 7 9 3
6 1 8 2 12 11 10
