4.0 SPECIFICATION
Max. Pulling Capacity 1100 lbs (500 kg)
Rope Speed Max. 200 ft/min (60 m/min)
Capstan Diameter 32” (813 mm)
Dimensions: Length: 123” (3124 mm)
Overall Width: 69” (1753 mm)
Height: 57” (1450 mm)
Weight: 1400 lbs. (635 kg)
Track: 60” (1676 mm)
Tire Size: F78-14 205/75D14
Coupling: Lunette Ring (Pintle hook)

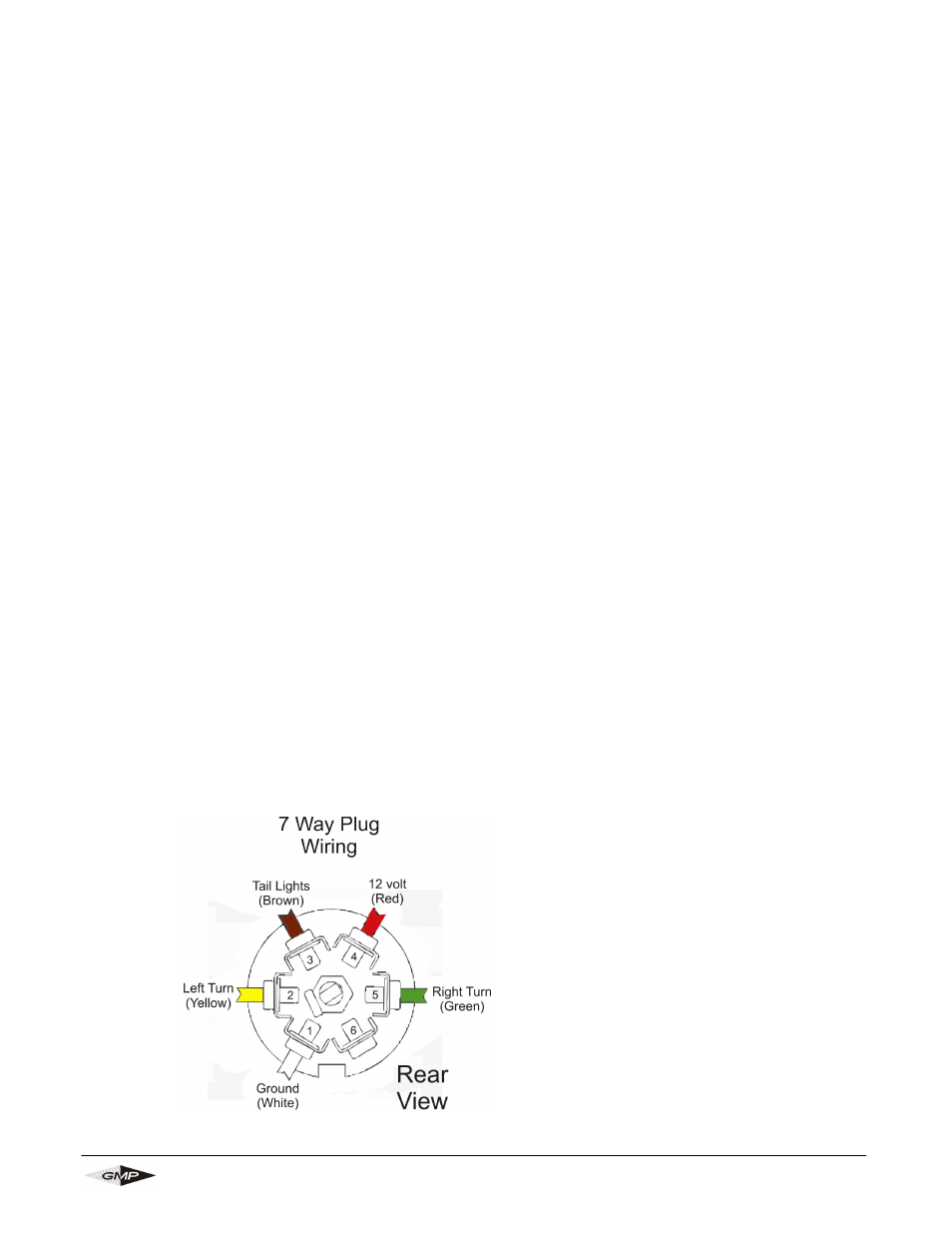

Lighting Adapter: 7-Way (others available by request)
Power Supply:
Honda GX390 13 HP, Recoil Start, Overhead Valve, Cast Iron
Cylinder Sleeve, 1.5 Gallon tank
Load Indication:
Calibrated gauge bezel
Main Drive: Fixed displacement tandem pumps to fixed displacement high
torque motors.
Gear Box: In-line planetary gearbox (capstan drive)
Gear Oil Grades: MobileLube HD Plus 85W-140
Refer to the instruction manual supplied with the gearbox for
alternative oil types and grades
Controls: (a) Pay-in / pay-out spring centered control valve.
(see section 8) (b) Detented take-up drum drive control valve.
(c) Tension control knob
(d) Tension indicator
Hydraulic Circuit: Closed circuit system with full filtration and overload protection
Hydraulic Oil Tank Capacity: 16.5 Gal. (63 Liters)
Hydraulic Oil Grade: Tellus T-32
