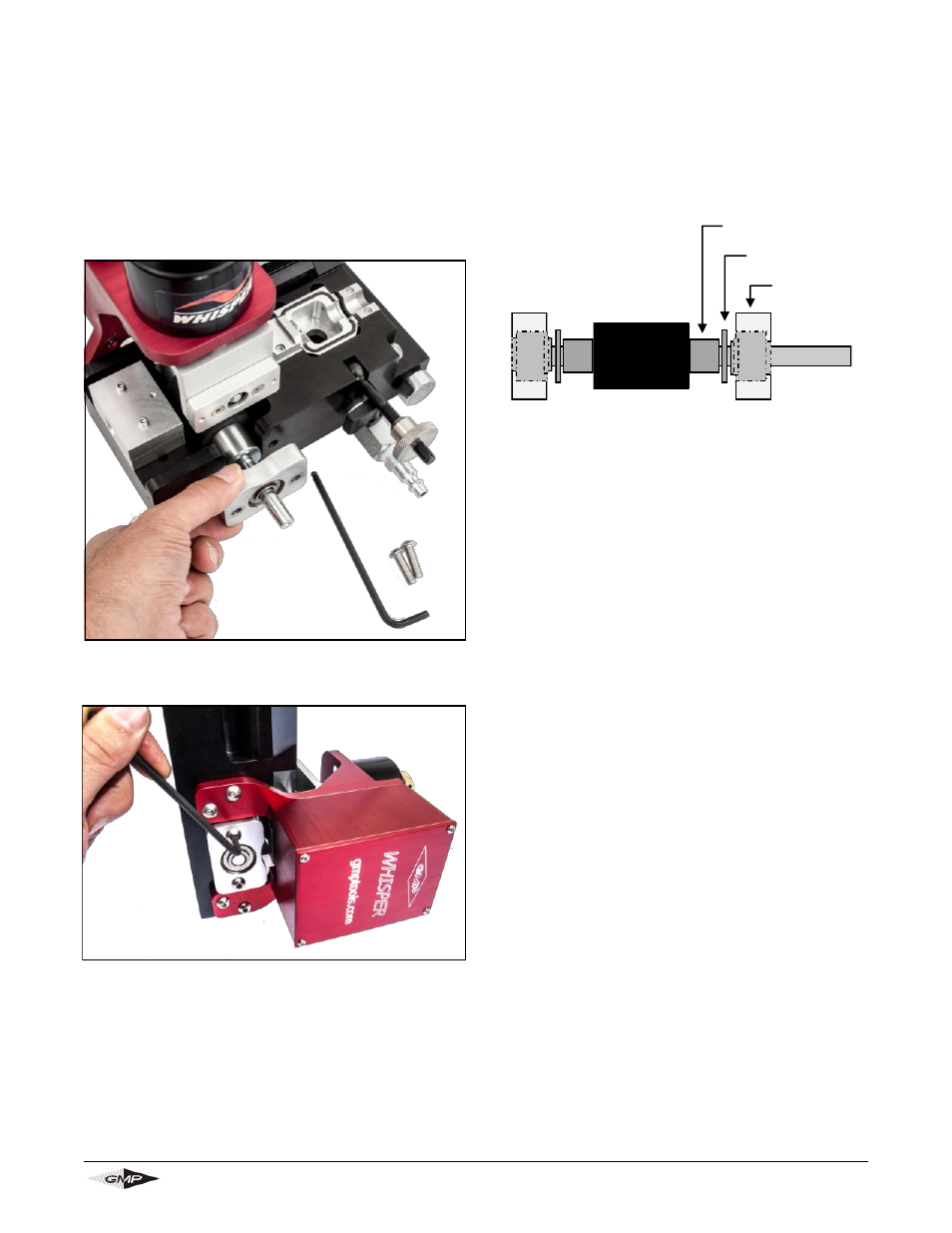

C. Drive Shaft Bearing Support
The drive shaft bearing supports are specific to the size of the fiber that you're blowing in or-
der to maintain the center distance of the fiber running through the machine.
Slide the bearing block over the shaft
(dimple side up and bearing surface even
with block towards outside) and secure
with 2 screws.
Install the spacer and the flat washer
Repeat on the other side.
Bearing
Block
Roller/Shaft Assy
Washer
Spacer
