1
2
3A
4
5
6
7
8
9
10
11
3B
12
13

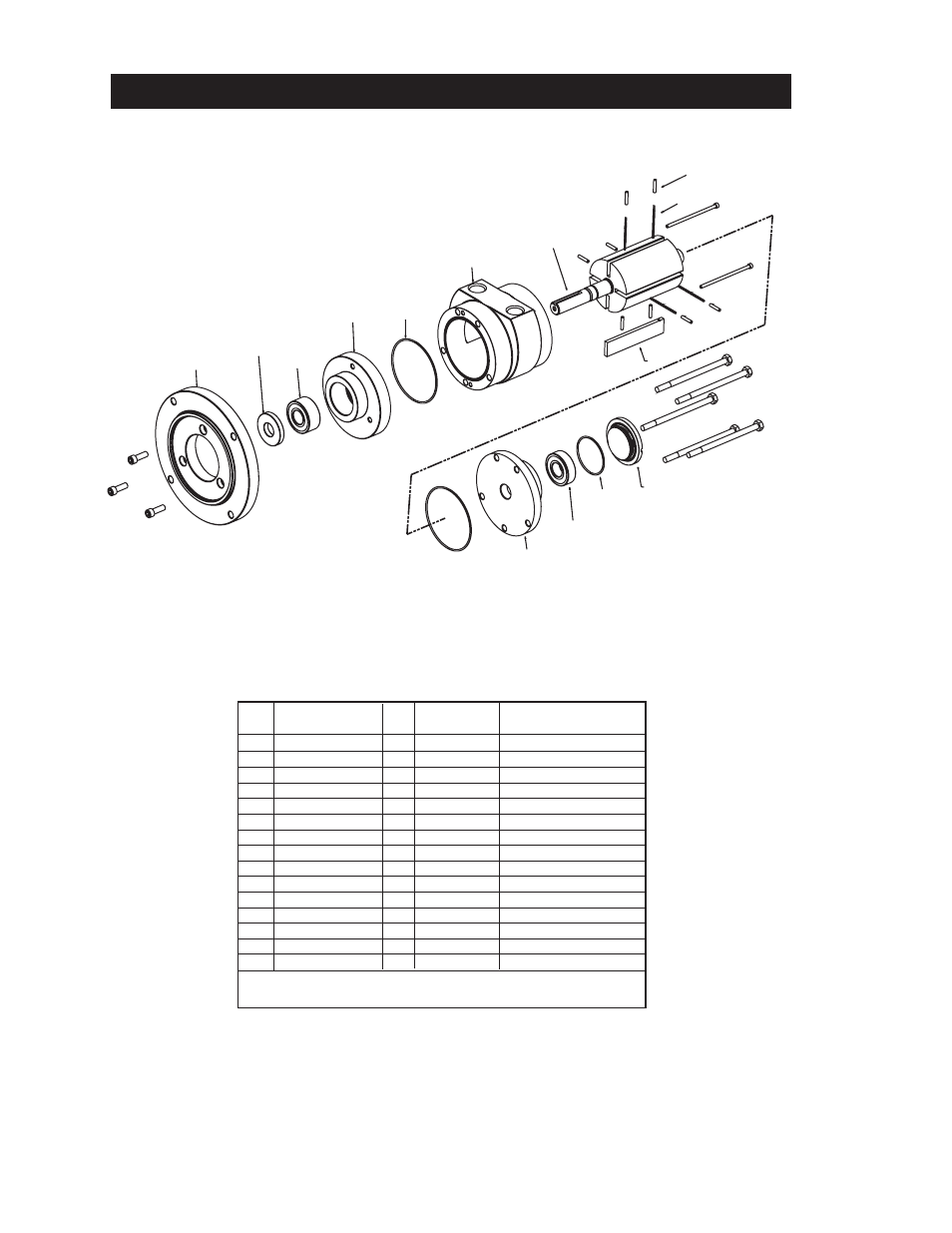

EXPLODED PRODUCT VIEW, PARTS & ORDERING INFORMATION 6AM SERIES
To avoid injury, exhaust air should be
plumbed away or appropriate muffler
should be used
REF# DESCRIPTION QTY FACE MOUNT NEMA 56C FLANGE MOUNT
6AM-NRV-200SS 6AM-NRV-201SS
1 FLANGE 1 AS128
2 ∆ SEAL 1 AS132 AS132
3A DRIVE END BEARING 1 AD638C AD638C
3B DEAD END BEARING 1 AS131 AS131
4 DRIVE END PLATE 1 AS139 AS139
5 ∆ O-RING, BODY 2 AS130 AS130
6 BODY 1 AS134 AS134
7 ROTOR ASSEMBLY 2 AS135 AS135
8∆ VANE 4 AS137 AS137
9 DEAD END PLATE 1 AS122 AS122
10∆ O RING END CAP 1 VG2145 VG2145
11 END CAP 1 AS123 AS123
12 PUSH PIN 8 AM467 AM467
13 SPRING 4 AM466 AM466
*** ∆ SERVICE KIT 1 K281SS K281SS
*** Items not shown
∆ Denotes parts in the service kit
6AM SERIES
8
