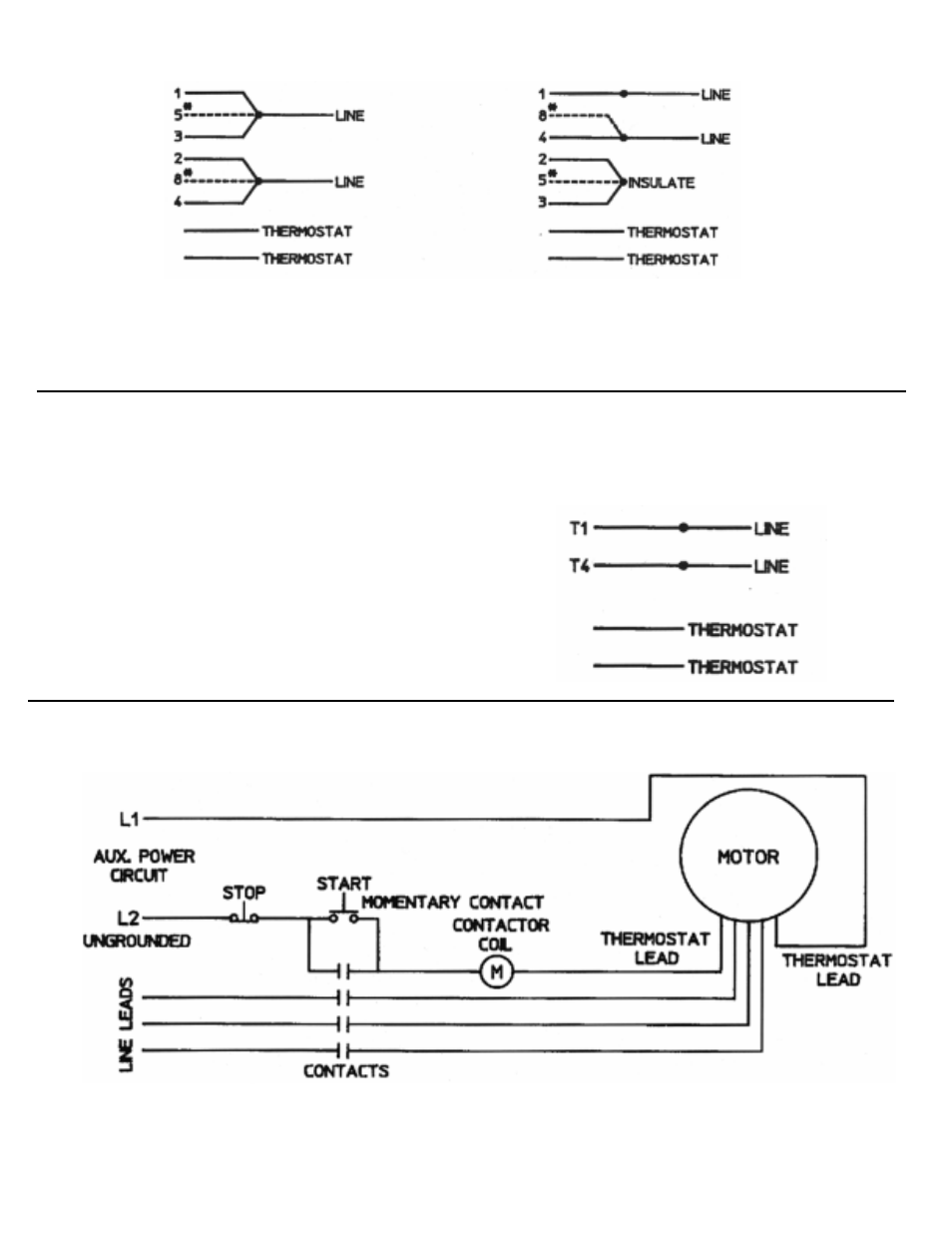

Motor Wiring Diaphragm for R5125Q-50 & R4P115N-50
LOW VOLTAGE HIGH VOLTAGE
*R5125Q-50 Blowers produced after September 1992 (Serial No. 0992)
do not have motor leads 5 & 8.
Motor Wiring Diaphragm forR6130Q-50 & R6P155Q-50
Connect Thermostat to Motor Proection Circuit
Connection for Thermostat Motor Protection
Thermostats to be connected in series with control as shown. Motor furnished with automatic thermostats
rated A.C. 115-600V. 720VA circuit shown is for 3 phase motor. Single phase motor has two line leads in
the above circuit.
4
