WIRINg
There are multiple ways to connect a US-Series ampli-
fier to other audio equipment. The US-Series features
balanced inputs and link outputs, which allows you to
connect both balanced and unbalanced signals.
For speaker connections, you can use either binding
posts or Speakon™ connectors.
NOTe: Use speaker wires with the lowest
gauge available. The thicker the speaker wires
are, the less output signal you will lose.
19

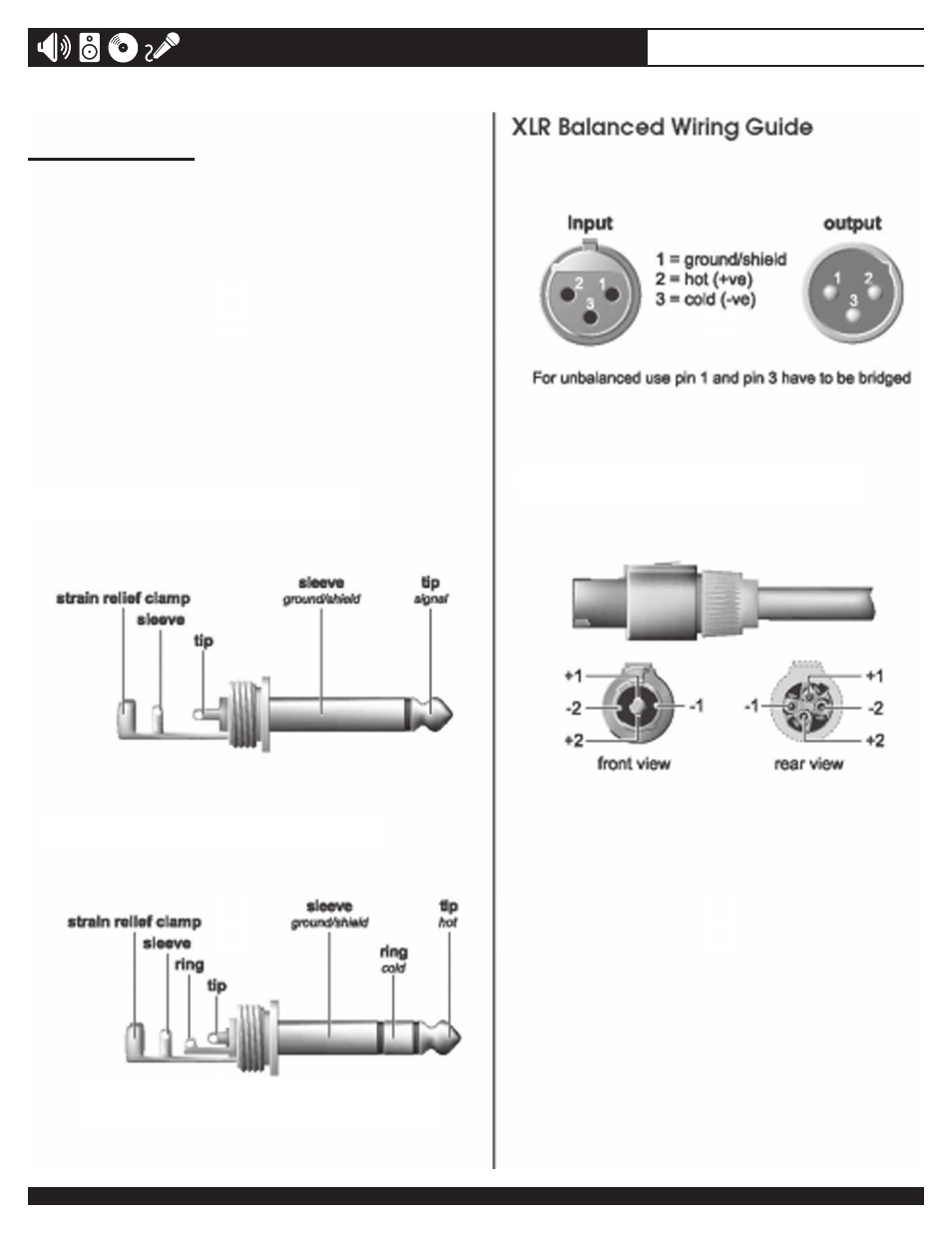

UNBAlANCed 1/4” CONNeCTOR
BAlANCed 1/4” CONNeCTOR
SPeAkON TM OUTPUT CONNeCTOR
NOTe: For connections of unbalanced sources
via balanced cables / plugs, the ring and
sleeve have to be bridged at the TRS plug.
