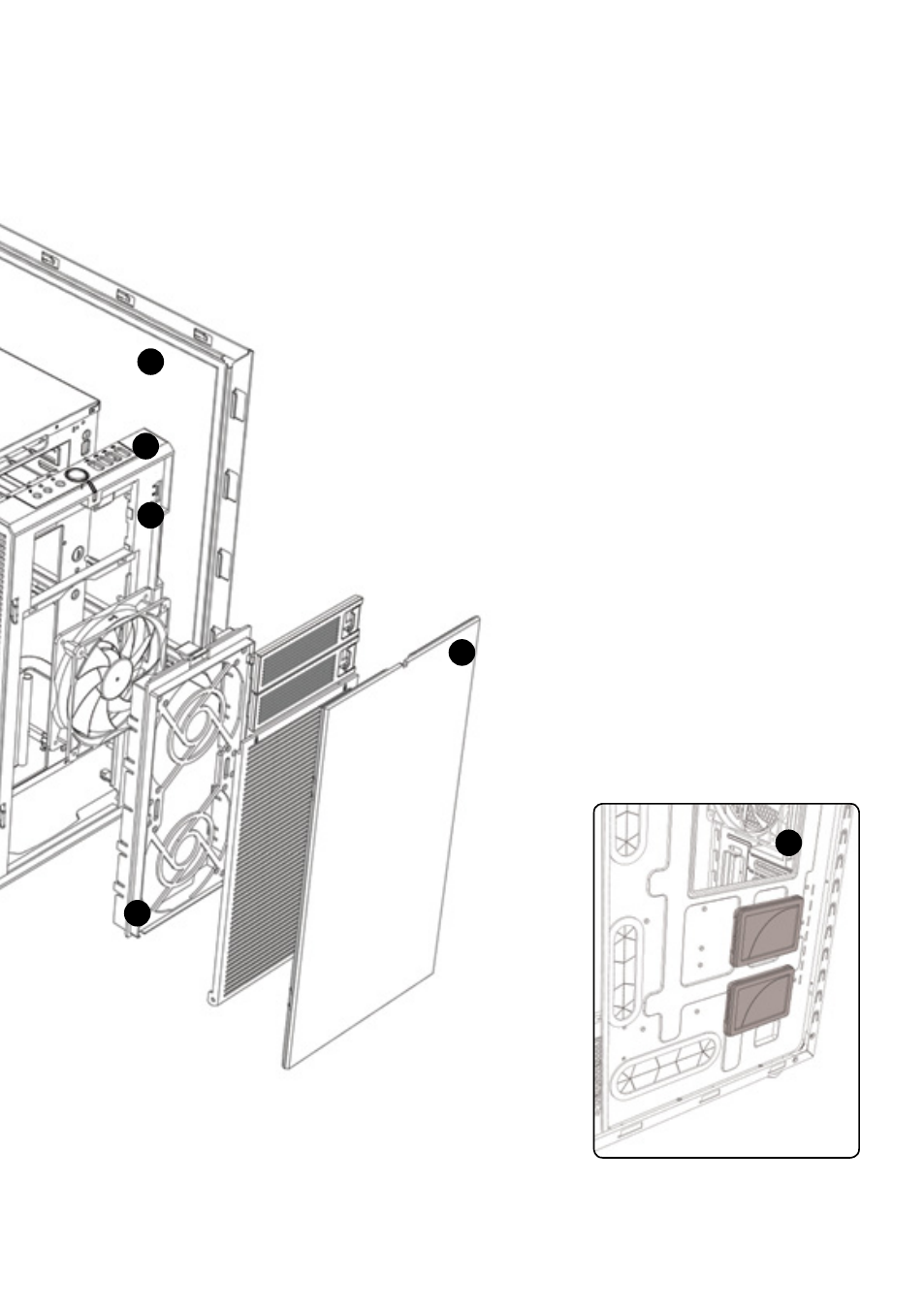

Exploded View DEFINE R4
1. Frontpanel
2. Mounting bracket for fans including
fan filter
3. USB 2.0 and USB 3.0
4. Removable upper hdd cage
5. Lower hdd cage
6. hdd mounting bracket
7. Bottom dust filter
8. ModuVent
9. Noise damping material
10. Air intake
11. Fan controller switch
12. Placement for SSD drives **
** SSD drives have to be mounted before motherboard is mounted.
In order to be able to secure screws.
1
2
3
9
11
12
Backside of motherboard tray
