Standard Cable Assemblies

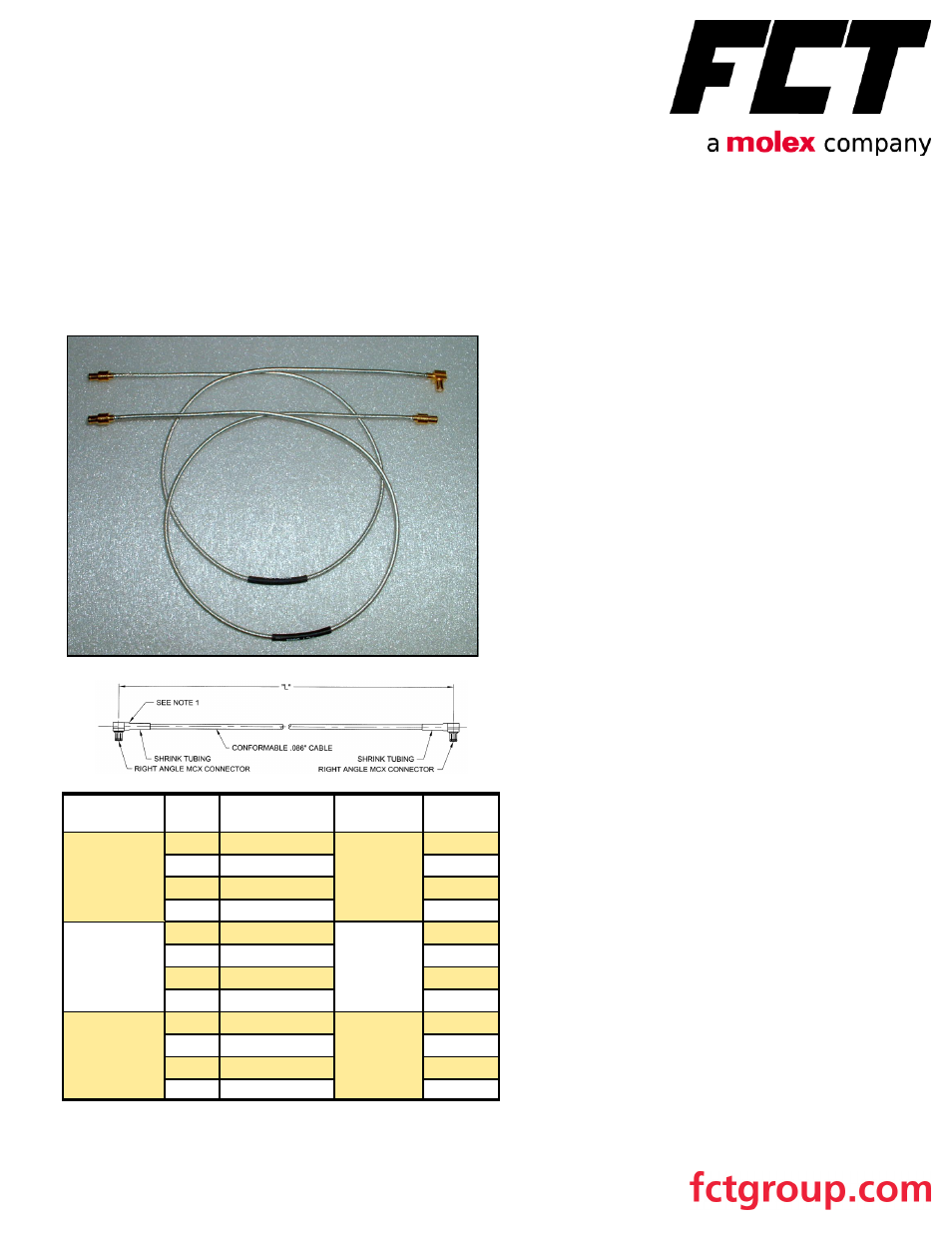

50Ω MCX 0.086” Conformable Jumpers
for DC to 6Ghz applications
FCT Electronics has produced RF cable assem-
blies supporting many types of applications for
over 20 years.
To better support customers involved in product
development activities, FCT has developed a
series of common configurations in standard
lengths with high guaranteed performance crite-
ria.
FCT standard MCX cable assemblies use gold
plated brass connectors that have been opti-
mized using Ansoft’s HFSS suite of software for
excellent electrical performance.
Each assembly is tested for VSWR and IL to
ensure actual performance meets FCT specifi-
cations using an HP Network Analyzer.
All products are built by FCT using RoHS com-
pliant materials and processes.
FCT still remains available to support custom
lengths, configurations and meet electrical and
mechanical criteria as specified by customers,
but now these standard options just might take
some of the strain out of cable sourcing.
In addition to these standard 50 Ω MCX assem-
blies, FCT also has a complete range of MCX
connectors.
Configuration Length FCT Order Part #
VSWR(<)
IL(
2Ghz/6GHz
MCX Str. Male
to
MCX Str. Male
3in.
25P103C25P1 -003
1.17:1 @2Ghz
1.22:1 @6Ghz
0.20/0.30
6in.
25P103C25P1 -006
0.30/0.55
12in.
25P103C25P1 -012
0.40/0.70
18in.
25P103C25P1 -018
0.60/1.00
MCX Str. Male
to
MCX R/A Male
3in.
25P103C25P2 -003
1.17:1 @2Ghz
1.22:1 @6Ghz
0.20/0.30
6in.
25P103C25P2 -006
0.40/0.60
12in.
25P103C25P2 -012
0.45/0.80
18in.
25P103C25P2 -018
0.65/1.00
MCX R/A Male
to
MCX R/A Male
3in.
25P203C25P2 -003
1.16:1 @2Ghz
1.20:1 @6Ghz
0.20/0.30
6in.
25P203C25P2 -006
0.40/0.50
12in.
25P203C25P2 -012
0.45/0.70
18in.
25P203C25P2 -018
0.65/1.00
