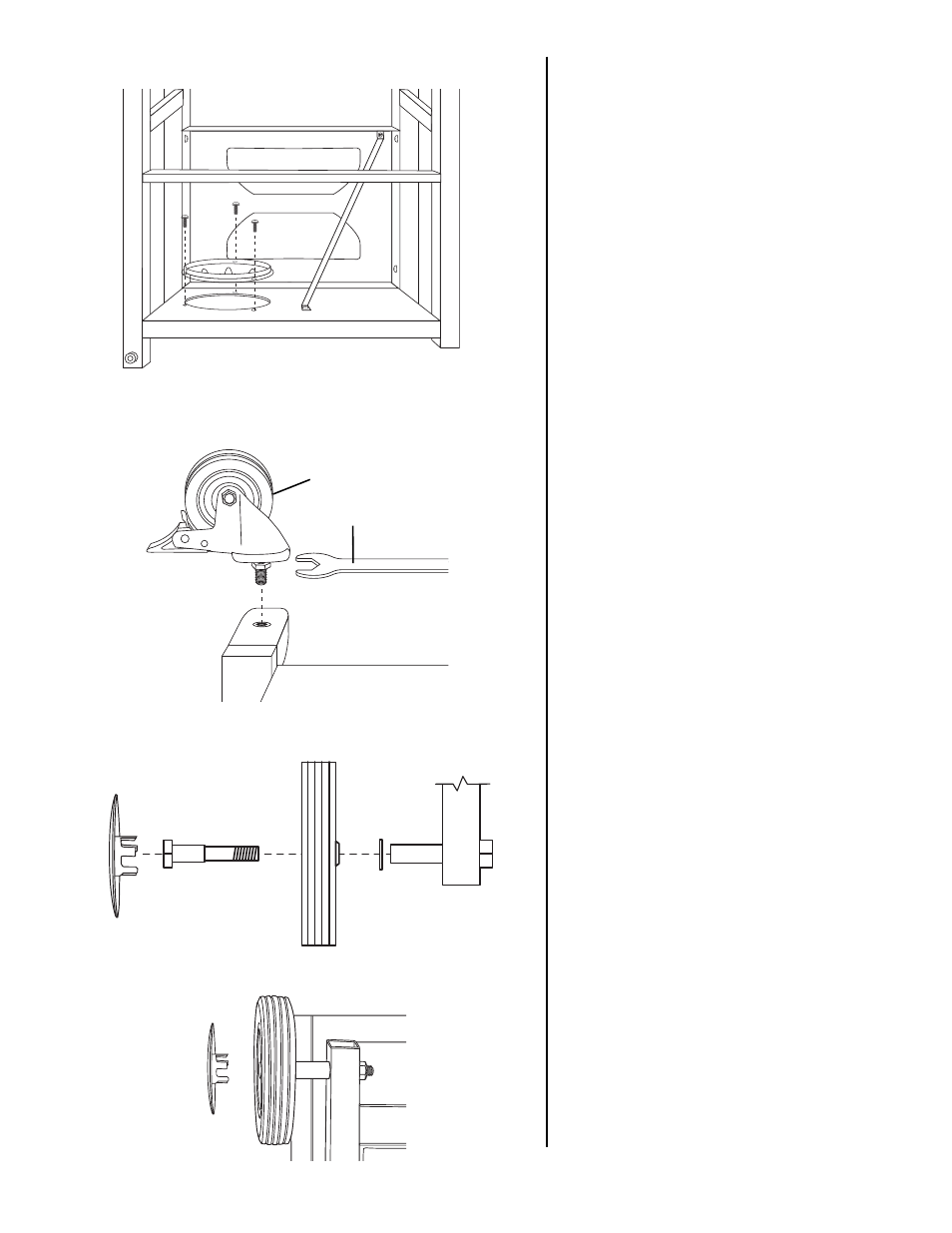

Step 5
Attach tank holder onto cart base by
using three M6 X 12mm bolts
(black).
Note: With the help of a friend, turn
the cart assembly over. Try to
minimize the stress to the
legs.
Step 6
Attach locking casters to the bottom
of the legs. Tighten caster bolts
securely using hex nut wrench
provided in parts pack.
Step 7
Install the wheels as illustrated, by
inserting the wheel axle bolts
through the wheels, washers and
right side cart leg axle holes. Tighten
axle bolts securely using hex nut
wrench provided in parts pack.
Step 8
Snap wheel hubcaps onto the
outside of wheels as illustrated.
24
Locking Caster
Hex Nut Wrench
Leg
Wheel
Washer Wheel axle
bolt
Hubcap
