Page 13: Parts lists & exploded views, Figure b

CO1-G
Full Size Gas Convection Oven

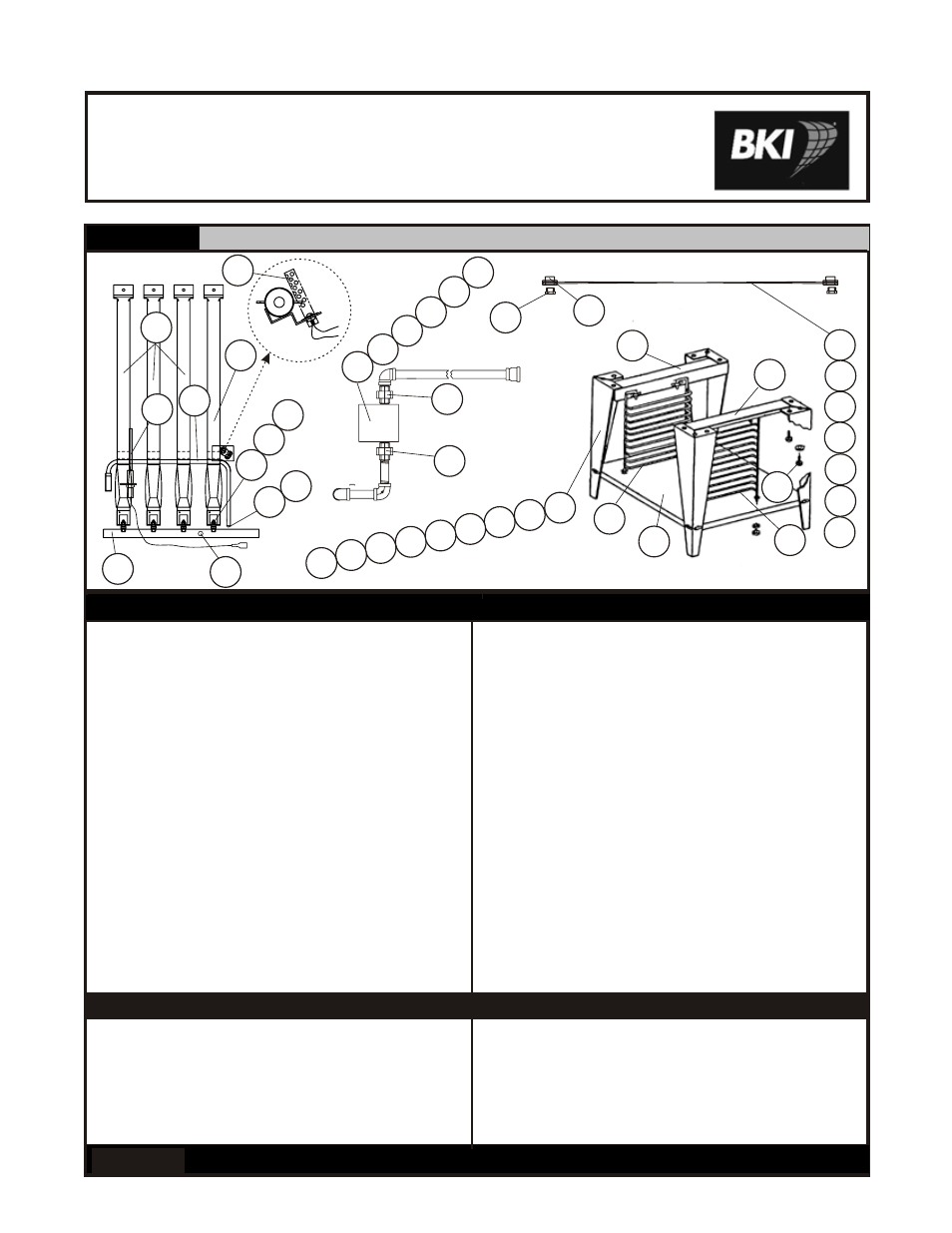

Figure B
Burners / Valve / Door Chain / Legs
(864) 963-3471
(864) 963-5316
(800) 927-6887
fax
US & Canada
web address
OUT
IN
IN
Safety Valve
Legs & Open Rack Stand
Door Chain Assy
Steam Option (Not Shown)
Item
Part #
Description
Item
Part #
Description
Burners
7
8
9
10
11
1
2
4
5
6
12
13
14
15
16
17
18
19
20
21
25
23
24
24
22
26
27
28
29
30
31
32
33
34
35
36
37
38
41
42
43
39
40
3
1
S1050Y
30" Leg (Set of 4)
23
N3068P 1/8" Pressure Tap Nozzle Assy
2
Q4017V Leg Bolt, Set (For 4 Legs)
24
N3026A 1/2" Union
3
S1217Y
24 1/2" S/S Leg (Set/4) Used w/Casters
25
R3158A Carry-Over
4
S1252T
24 1/2" S/S Leg (each) Used w/Casters
26
L5090A
Burner (3)
5
S1081X
Casters, 4" (Set of 4)
27
L5091X
Burner w/Ignitor Bracket (1)
6
S1022X
Caster, 4" (No Lock), each
28
M1323X Flame Rod (Flame Sensor)
7
S1023X
Caster, 4" (w/Lock), each
29
M2140X Igniter, 24V
8
K1357E
Mounting Plate (for Casters) each
30
R3164X
Combination Valve (Natural)
9
S1049Y
6" Bullet Legs (Set of 4)
31
R3165X
Combination Valve (LP)
10
S1049A
6" Bullet Legs (each)
32
R3178P Combination Valve, CE (Natural)
11
E3148X
Top Right Angle,
Open Rack Stand
33
R3179P Combination Valve, CE (LP)
12
E3149X
Top Left Angle,
Open Rack Stand
34
R1116A
Manifold
13
T3051X
Left Rack Support,
Open Rack Stand
35
S3228A
Flange Bearing (4)
14
T3052X
Right Rack Support,
Open Rack Stand
36
S3231X
Door Chain Assy (Complete)
15
T8075X
Bottom Shelf w/Hdwr,
Open Rack Stand
37
S3226A
Door Chain Rod (Short)
16
R3180A #48 Burner Orifice Spud (Nat)
38
S3227A
Door Chain Rod (Long)
17
R3175A #57 Burner Orifice Spud (LP)
39
S3145X
Sprocket
18
R3176A 1.15mm Burner Orifice Spud CE (LP)
40
S3112X
Roller Chain #35
19
R3161X
#71 Carry-Over Orifice Hood (Nat)
41
S3224A
Chain Connection Link #41
20
R3160X
#78 Carry-Over Orifice Hood (LP)
42
S3223A
Turnbuckle 1/4-20x3"
21
M1233X LP Kit (for Combination Valve)
43
Q2039A 1/4-20 Hex Nut, Left Hand Thread (2)
22
M1343A Natural Kit (for Combination Valve)
N/S
M1114X
Solonoid Valve
N/S
N5815A 1/4 Tubing x 9"
N/S
M1115X
Coil (For Solonoid Valve)
N/S
N1019X
Steam Injection Nozzle
N/S
N3039A 1/8 Brass Coupling
N/S
M1175X
Steam Timer, 115V
N/S
N3040A 1/8 Brass Elbow
N/S
M1231A Steam Timer, 208/240V (Export)
N/S
N5831A 1/8x4" Brass Nipple
N/S
M1176X
Steam Potentiometer
N/S
N3041A 1/8NPT-1/4 Compression Fitting
N/S
M1049X Momentary Switch (Steam)
N/S
N5814A 1/8x2 3/8 Nipple
13
9. PARTS LISTS & EXPLODED VIEWS
PO Box 80400 ♦ Simpsonville, SC ♦ 29680-0400
Note: When ordering, ALWAYS specify Part #, Model #, Serial #, Voltage/Phase & type of Gas.
