Model number 15614 15618
Voltage rating 14.4 V 18 V
No load speed 1 n
0
0-450/min n
0
0-500/min
No load speed 2 n
0
0-1900/min n
0
0-2000/min
Impact rate 29,000 BPM 31,000 BPM
Maximum Capacities
Chuck size
1/2" 1/2"
Screw sizes #16 x 3" #14 x 4"
Mild metal 1/2" 5/8"
Hard wood 1-1/4" 1-5/8"
Soft wood 1-3/4" 2"
Battery pack BAT040 BAT025, BAT026,
& BAT140 BAT180 & BAT181
Charger BC001-6 & BC016 BC003, 4, 6, & BC016
BC130 & BC230 BC130 & BC230
Voltage rating 120 V 60 Hz 120 V 60 Hz
BC006 charger requires 12 V DC input
NOTE: ONLY USE CHARGERS LISTED ABOVE
Functional Description and Specifications
Disconnect battery pack from tool before making any assembly,
adjustments or changing accessories. Such preventive safety measures
reduce the risk of starting the tool accidentally.
! WARNING
Cordless Hammer Drills

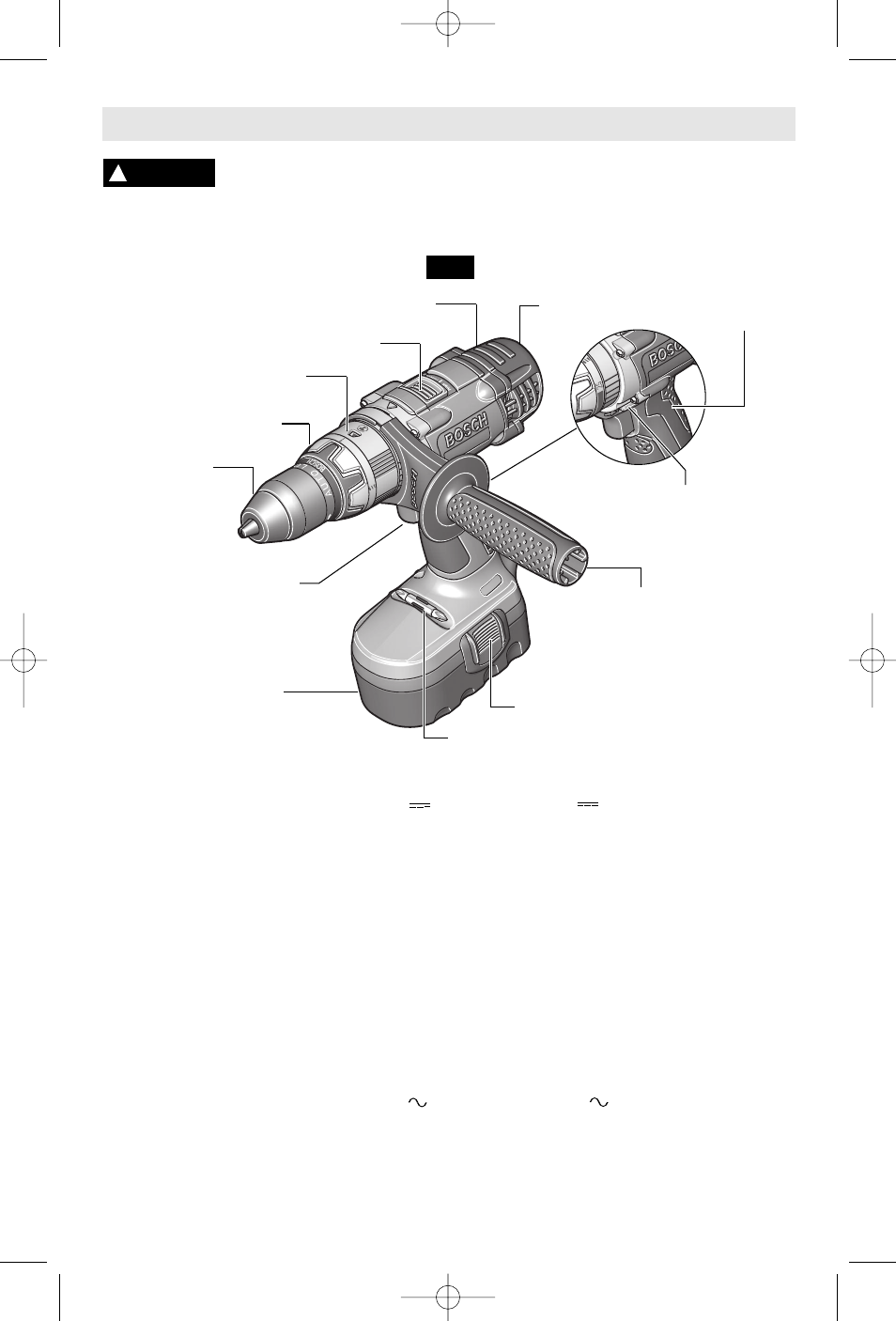

FIG. 1
BATTERY PACK
BATTERY RELEASE TABS
BRUSH COVER VENTILATION OPENINGS
GEAR SHIFTER
RUBBERIZED
GRIP
BIT STORAGE AREA
KEYLESS
CHUCK
ADJUSTABLE CLUTCH
MODE SELECTOR RING
VARIABLE SPEED
TRIGGER SWITCH AUXILIARY
HANDLE
FORWARD/REVERSING
LEVER & TRIGGER LOCK
