Outdoor Patio Heater Model No. EWTS8119L Contact 1.800.762.1142 for assistance. Do not return to place of purchase.
page no.
3
Parts List
1 Finial*
2 Dome*
3 Dome Brace*
4 Plastic Insulator*
5 Upper Pole*
6 Heat Reflector*
7 Bulb Clip (4)*
8 Halogen Bulb*
9 Wire Guard*
10 Post*
11 Fuse Cap*
12 Fuse (250V, 15A)*
13 Lower Body Assembly*
14 Power Cord*
15 Weight Plate*
16 Inner Support Post
* Pre-assembled

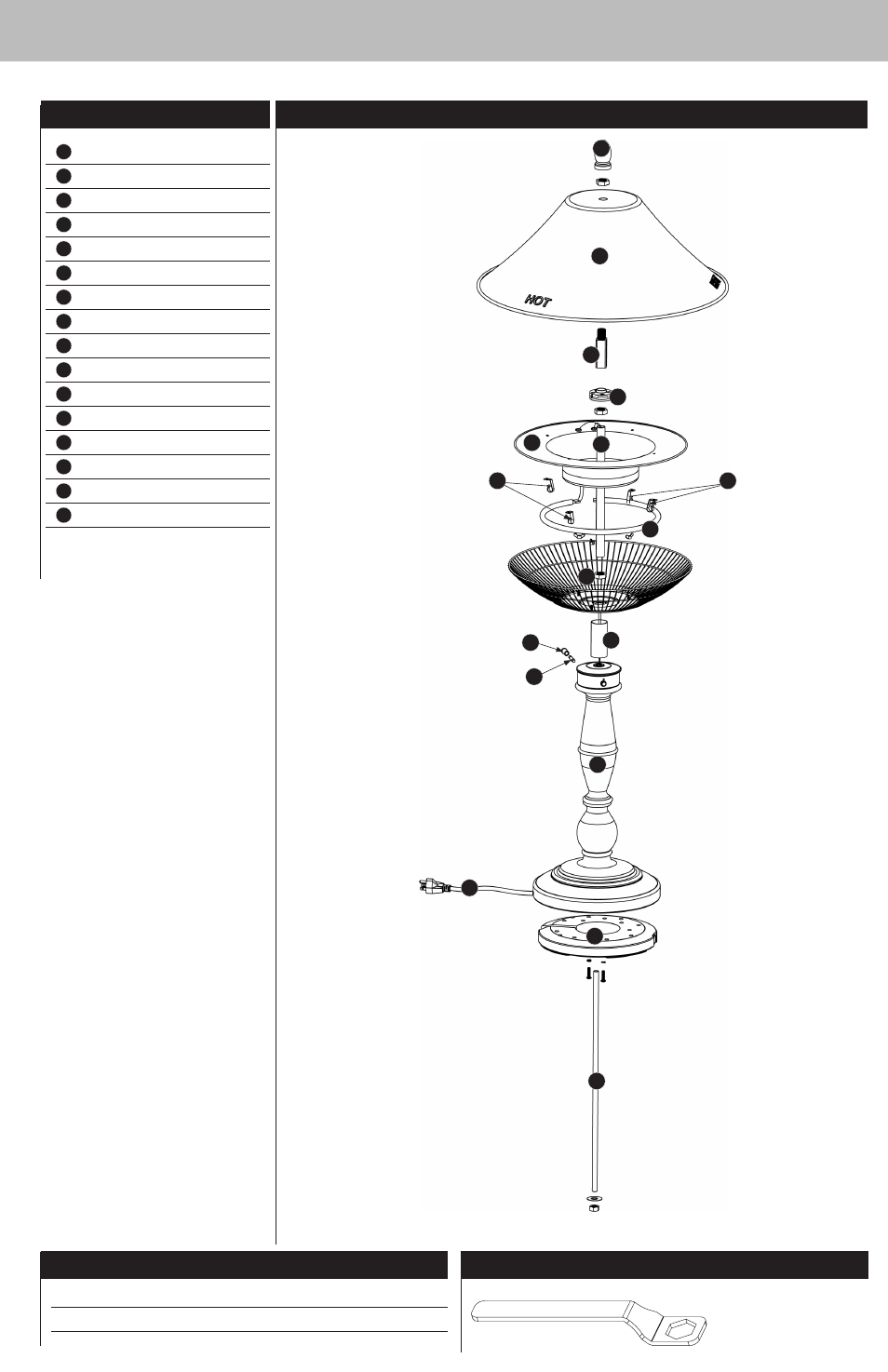

Exploded View
Hardware
A
Nut M10 Nickel Plated 2 pcs
B
Washer ø10 Nickel Plated 1 pc
Tools Required for Assembly (Included)
Wrench
4
1
2
14
10
6
9
12
8
13
16
11
5
3
15
7 7
