Connections
3-3 5975847 BARCOGRAPHICS 1208S 220197

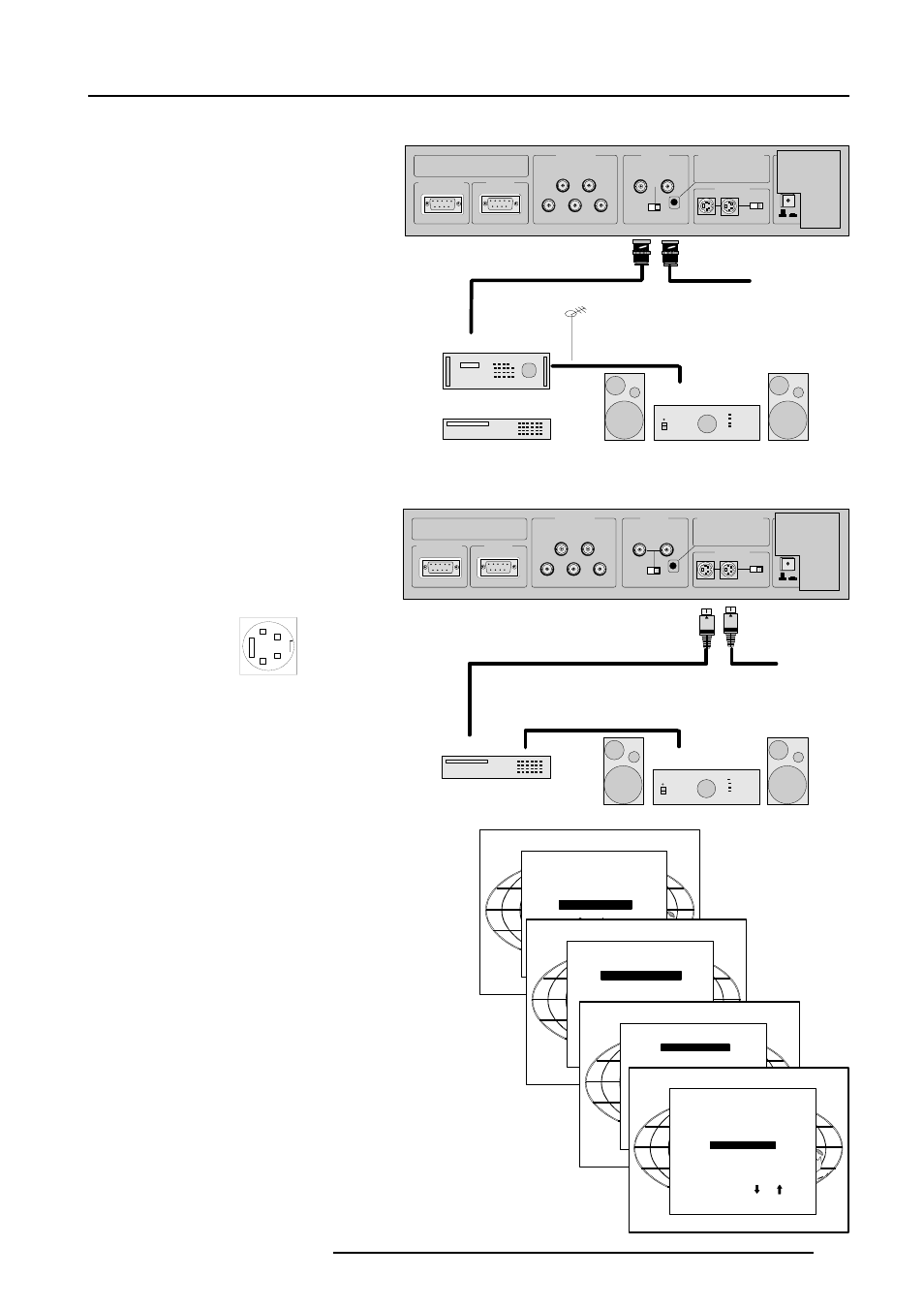

Connecting a Composite Video source to port 1.
Video input selection :
with the RCU or the build in RCU : press digit button 1
* Note : if using the loop-through Video output, then set the
Termination Switch to the "OFF" position.
Connecting a S-Video or Video source to port 2.
Separate Y-luma/C-chroma signals for higher quality playback of Super VHS signals.
Highlight Port 2 : Video and press ENTER to toggle between VIDEO
or S-VIDEO.
Press EXIT to return.
Press ADJUST to return to operational mode.
Select with or
then
to return.
ADJUSTMENT MODE
Select a path from below :
GUIDED
RANDOM ACCESS
INSTALLATION
SERVICE
IRIS
Source 02
Select with or
then
to return.
Choose a setup pattern
from below :
SELECTED SOURCE
GENLOCKED PATTERN
INTERNAL # PATTERN
Source 02
Select with or
then
to return.
RANDOM ACCESS
ADJUSTMENT MODE
PICTURE TUNING
GEOMETRY
CONVERGENCE
FOCUSING
COLOR SELECT
ORBITING
CONTR. MODULATION
SOFT EDGE
Select with or
to accept
to return.
PICTURE TUNING
COLOR BALANCE
SYNC : FAST
PORT2 : S-VIDEO
LINE DOUBLER : ON
Highlight 'Picture Tuning' and press ENTER .
Select 'Selected source' and press ENTER .
Input selection
with the RCU or the build in RCU : press digit button 2
Depending on the priority setting in the Picture Tuning
menu, Video or S-Video can be displayed.
If the setting is not correct, start up the adjustment mode by
pushing on th
ADJUST key.
Select 'Random Access' and press ENTER .
* Note: When using the Port 2 loop-through output, set the Termina-
tion Switch in the "OFF" position.
1
2
3
4
4 pin connector configurations:
For S-video:
Pin 1: earth(ground) luminance
Pin 2: earth(ground) chrominance
Pin 3: luminance signal(Y)
1Vpp ± 3dB
Pin 4: chrominance signal(C)
300mVpp ± 3dB
For video:
Pin 1: earth(ground) video
Pin 2: not connected
Pin 3: video signal
Pin 4: not connected
75 ohm
OFF ON
PORT 1
(VIDEO) PORT 4/5
(RGB - HV)
Comp/H sync V sync
R G B
PORT 3 PORT 6 REMOTE
COMMUNICATION
PROJECTOR MODE POWER/MAINS
PORT 2
(S-VIDEO)
75 ohm
ON OFF
GREEN : operational
RED : stand-by
358
TV tuner, e.g. TVDM40 stereo
VCR
Audio amplifier
Composite
video
to next projector or
to a monitor
Composite video signals from a VCR, OFF air signal
decoder, etc..
75 ohm
OFF ON
PORT 1
(VIDEO) PORT 4/5
(RGB - HV)
Comp/H sync V sync
R G B
PORT 3 PORT 6 REMOTE
COMMUNICATION
PROJECTOR MODE POWER/MAINS
PORT 2
(S-VIDEO)
75 ohm
ON OFF
GREEN : operational
RED : stand-by
359
VCR S-VHS
Audio amplifier
Luma/Chroma
to next projector or
to a monitor
