P L e A S e R e A d A N d S AV e T H e S e
I M P O RTA N T S A F e T Y I N S T R u C T I O N S
A S S e M b LY I N S T R u C T I O N S
battery Replacement
1. Locate the battery compartment on the back of the
remote control handset. Insert a small object (such as
a pin or paper clip) into the hole of the battery cover
lock (see Figure 3) and slide out the battery cover.
2. Remove old battery.
3. Place new battery into battery compartment.
4. Slide battery compartment into the remote control
handset until the Battery Cover Lock is securely latched.
5. For your convenience, a remote control holder is
integrated into the back of the heater housing.
NOTeS:
• THIS PRODUCT CONTAINS A BUTTON BATTERY. IF
SWALLOWED, IT COULD CAUSE SEVERE INJURY IN JUST 2
HOURS. SEEK MEDICAL ATTENTION IMMEDIATELY.
• Remove the battery from the equipment when it is not
being used for an extended period of time.
• Remove the used battery promptly.
• Do not discard used batteries into household trash
containers. Contact your local government for disposal or
recycling practices in your area.
FCC STATeMeNT
Potential for Radio/Television interference
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2)
this device must accept any interference received,
including interference that may cause undesired
operation.
This product has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15
of the FCC rules.
These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
The product generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is
no guarantee that the interference will not occur in a
particular installation. If the product does cause harmful
interference to radio or television reception, which can be
determined by turning the product on or off, the user is
encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the product and the
receiver.
• Connect the product into an outlet on a circuit
different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV
technician for help.
• Changes or modifications not expressly approved by
the party responsible for compliance could void the
user’s authority to operate the equipment.
TeCHNICAL SPeCIFICATIONS
• Amps: 12.5
• Wattage: 1500W (+5% –10%)
• Working voltage: 120V AC/60Hz
ASSeMbLY INSTRuCTIONS
NOTe: A Phillips screwdriver is required for assembly.
Unpack your heater from the box, being careful to
remove all parts from plastic bags and remaining
packaging. Please save the carton for off-season storage.
Your heater is packed with separate base in the box.
Carefully remove all parts from plastic bags. To prevent
scratches, place all parts onto a cloth before assembly.
Follow the below instructions for Base assembly:
base Assembly
Step 1: Run the power cord through the center of the
base. To assemble the base to the unit, first
make sure the side marked “Rear” is facing
the back of the heater. Line up holes of the
base with holes of the heater bottom, and
secure with 4 provided screws. Refer to Figure
1.
Step 2: Lace the power cord through the cord minders
on the underside of the base. Refer to Figure 2.
Step 3: Turn the heater right side up on a flat level
surface prior to beginning operation.
Remote Control
Unpack the remote control from box. This includes one
lithium battery, CR2025/3V. Please note this remote
control will not work through walls. Remove battery
before discarding the remote.
NOTe: REMOVE THE PROTECTIVE COVER FROM THE
BATTERY PRIOR TO BEGINNING OPERATION.
When using electrical appliances, basic safety precautions
should always be followed to reduce the risk of fire,
electric shock, and injury to persons, including the
following:
1. Read all instructions before using this heater.
2. This heater is hot when in use. To avoid burns, do not
let bare skin touch hot surfaces. If provided, use
handles when moving this heater. Keep combustible
materials, such as furniture, pillows, bedding, papers,
clothes, and curtains at least 3 feet (0.9 m) from the
front of the heater and keep them away from the
sides and rear.
3. Extreme caution is necessary when any heater is
used by or near children or invalids and whenever
the heater is left operating and unattended.
4. Always unplug heater when not in use.
5. Do not operate any heater with a damaged cord or
plug or after the heater malfunctions, has been
dropped or damaged in any manner. Discard heater,
or return to authorized service facility for
examination and/or repair.
6. Do not use outdoors.
7. This heater is not intended for use in bathrooms,
laundry areas and similar indoor locations. Never
locate heater where it may fall into a bathtub or
other water container.
8. Do not run cord under carpeting. Do not cover cord
with throw rugs, runners, or similar coverings. Do not
route cord under furniture or appliances. Arrange
cord away from traffic area and where it will not be
tripped over.
9. To disconnect heater, turn controls to off, then
remove plug from outlet.
10. Do not insert or allow foreign objects to enter any
ventilation or exhaust opening as this may cause an
electric shock or fire, or damage the heater.
11. To prevent a possible fire, do not block air intakes or
exhaust in any manner. Do not use on soft surfaces,
like a bed, where openings may become blocked.
12. A heater has hot and arcing or sparking parts inside.
Do not use it in areas where gasoline, paint, or
flammable liquids are used or stored.
13. Use this heater only as described in this manual. Any
other use not recommended by the manufacturer
may cause fire, electric shock, or injury to persons.
14. Always plug heaters directly into a wall outlet/
receptacle. Never use with an extension cord or
relocatable power tap (outlet/power strip).
15. When unplugging, be sure to pull by the plug and
not the cord.
16. If the heater will not operate, see specific instructions
on Auto Safety Shut-off.
17. DO NOT attempt to repair or adjust any electrical or
mechanical functions on this unit. Doing so will void
your warranty. The inside of the unit contains no user
serviceable parts. All servicing should be performed
by qualified personnel only.
18. Discontinue use if plug or outlet is hot. It is
recommended that the outlet be replaced if plug or
outlet is hot to touch.
19. The heater must not be located immediately below a
socket-outlet. Do not use this heater in the
immediate surroundings of a bath, a shower or a
swimming pool.
SAVe THeSe
INSTRuCTIONS
F e AT u R e S - O P e R AT I O N S
THIS APPLIANCe HAS A POLARIzed PLug (one blade is wider than the
other). To reduce the risk of electric shock, this plug is intended to fit in a
polarized outlet only one way. If the plug does not fit fully in the outlet,
reverse the plug. If it still does not fit, contact a qualified electrician to
install the proper outlet.
dO NOT ATTeMPT TO MOdIFY THIS PLug OR deFeAT THIS
SAFeTY FeATuRe IN ANY WAY.
OPeRATINg INSTRuCTIONS
1. Carefully remove your heater from the box. Please
save the carton for off-season storage.
2. Place heater on a firm, level surface.
3. Plug heater into a standard outlet. Once plugged in,
the Power Light will illuminate.
NOTe: Avoid overloading your circuit by not using other
high wattage appliances in the same outlet. At 1500
watts, this unit draws 12.5 Amps.
Mode Control
Press the Mode Button ( /Mode) on the control panel
to select your desired heat settings. Each press of the
button will cycle through the below settings and the
selected setting will appear on the LCD. To operate with
the remote control, first press the Power Button ( ) on
the remote and then press the Mode Button to cycle
through the below settings:
HI - HIgH Heat
The heater will run continuously at 1500W.
LO - LOW Heat
The heater will run continuously at 750W.
- eco-Smart TM
Setting
The heater will now cycle between high (at 1500W) and
low (at 750W) heat settings to provide heat.
Thermostat Control
The next press of the Mode Button ( /Mode) will
activate the thermostat setting, and the LCD will display
"80°" as the default temperature setting.
Your heater is equipped with a digital thermostat that
allows you to set your heater to a precise comfort level
(65°F-85°F) by pressing the Up ( ) and Down ( )
Button on the control panel or remote control. The LCD
Display will show the selected temperature reading. When
the preset temperature is reached, the heater will shut off
and cool down for 10 seconds. When the room
temperature drops below the preset temperature, the
heater will automatically turn on again to maintain the
preset temperature level.
FrostProtect™ Setting
Your heater is equipped with FrostProtect™. The
heater will turn on automatically when the room
temperature drops below 40°F. To activate FrostProtect™,
press the Down ( ) Button until the LCD Display show
“40” and the FrostProtect™ icon ( ) will appear
on the LCD Display.
- Fan Only Setting
Press the Mode Button ( /Mode) again to activate Fan
Only setting. The heater will run at fan-only operation
without heat output.
NOTe: To shut unit off at any time, press and hold the
Mode Button ( /Mode) on the control panel for 2
seconds or press the Power Button ( ) on the remote
control to shut off the heater or keep pressing the Mode
Button ( /Mode) until the LCD Display goes OFF.
NOTe: It is normal for the heater to cycle ON and OFF as
it maintains the preset temperature. To prevent the unit
from cycling, you need to change the thermostat setting.
The digital thermostat has memory; it will remember the
last temperature setting before the heater is turned off.
However, if the heater is unplugged, the digital
thermostat will no longer remember the previous
temperature setting. You will need to reset the digital
thermostat if the heater is unplugged.
CAuTION: FRONT GRILL IS HOT WHEN UNIT IS IN
OPERATION.
Set Timer
This heater is equipped with 24-Hour Auto Shut-off Timer
feature. This allows you to program your heater to shut
off automatically after running a defined time interval
(from 0 to 24 hours).
1. Press the Timer Button ( ) on the control panel
once to activate the Timer.
2. Press the Up ( ) and Down ( ) button to adjust
from 0 to 24 to select your desired time interval for
the heater to shut-off automatically. The selected
hour will appear on the LCD Display and the "Hr" icon
will blink in 3 seconds to indicate that the selected
timer is activated. The LCD Display will return to show
the preset temperature and mode setting.
3. To cancel the Timer feature, press the Timer Button
( ) twice within 5 seconds.
Oscillation
Press the Oscillation Button ( ) either on the control
panel or remote control to activate or stop the oscillation
feature.
NOTe: Please do not manually turn the heater on the
base. It is designed to turn only by motorized oscillation.
CLeANINg/MAINTeNANCe
Always unplug the heater before cleaning and allow the
heater to cool down.
1. Clean the unit with a soft cloth moistened with a mild
soap and water solution.
2. NEVER use abrasive or flammable solvents to clean the
unit.
3. After cleaning, be sure to completely dry the unit with a
cloth or towel.
4. Store heater in a cool, dry location.
5. It is recommended that you store the unit in its original
carton.
TIP: Over time, dust may accumulate on the front grills.
This can be removed by wiping the unit with a damp
cloth.
AuTO SAFeTY SHuT-OFF
This heater is equipped with a technologically-advanced
safety system that requires the user to reset the heater if
there is a potential overheat situation. When a potential
overheat temperature is reached, the system will
automatically shut the heater off. It can only resume
operation when the user resets the unit.
ReSeT INSTRuCTIONS
If your heater shuts down:
1) Stand the unit upright.
2) Unplug unit.
3) Wait 30 minutes for unit to cool down.
4) Plug in and operate normally.
NOTe: If the heater is plugged in again and Mode Button
( /Mode) is pressed within the 30-minute cool down
period, heater will run at High Heat setting, but shut down in
2 seconds with the Power Light flashing. Please repeat the
above 4 steps to reset the heater again and ensure to allow
sufficient time for the thermostat to cool down.
Tip Over Shut-Off:
When the unit is accidentally knocked over, it will instantly
shut off. The unit may also shut off if it is moved or bumped.
To reset, simply place the heater in an upright position, and it
will operate normally.
NOTe: If unit does not turn on when placed in the upright
position, press the Mode Button ( /Mode) on the control
panel or press the Power Button ( ) on remote control
once and heater will resume operation.
F e AT u R e S - O P e R AT I O N S
C L e A N I N g / M A I N T e N A N C e
A u T O S A F e T Y S H u T- O F F

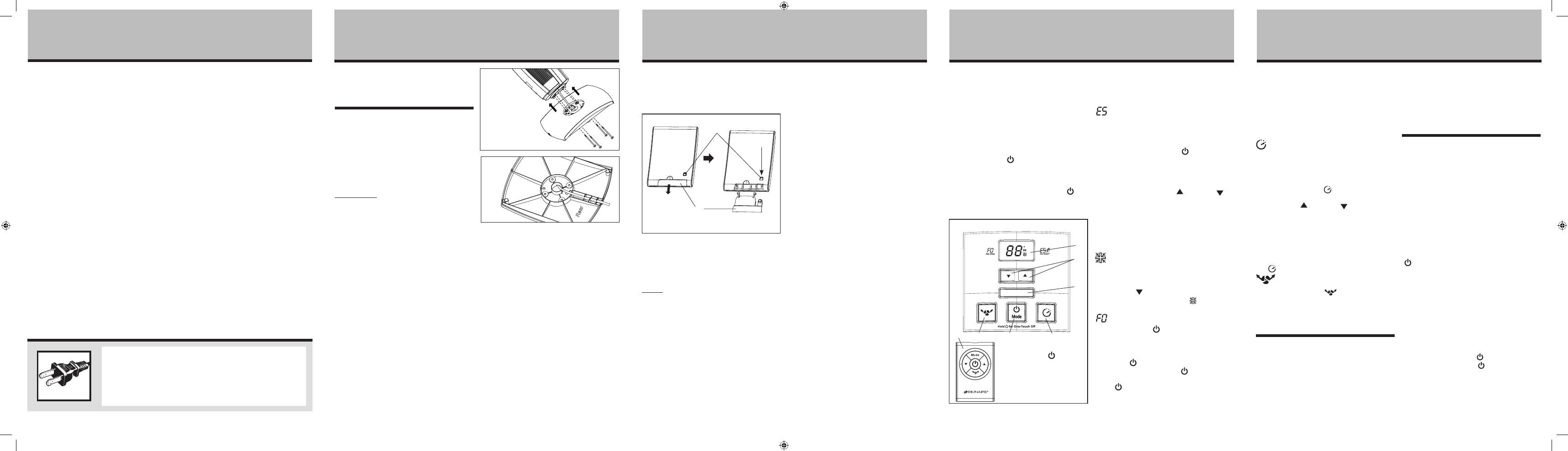

Figure 2
Figure 1
A Oscillation Button
B Mode Button ( /Mode)
C Timer Button
D Power Light
E Up/Down Button
F LCD Display
G Remote Control
Figure 4
A C B
D
E
F
G
A
B
A. Battery Cover Lock
B. Battery cover
Insert pin here
Figure 3
BCH9208-U_11EM2.indd 2 7/15/11 11:52 AM
