BIOSTAR Motherboard
2
1
1
1
3
1
3

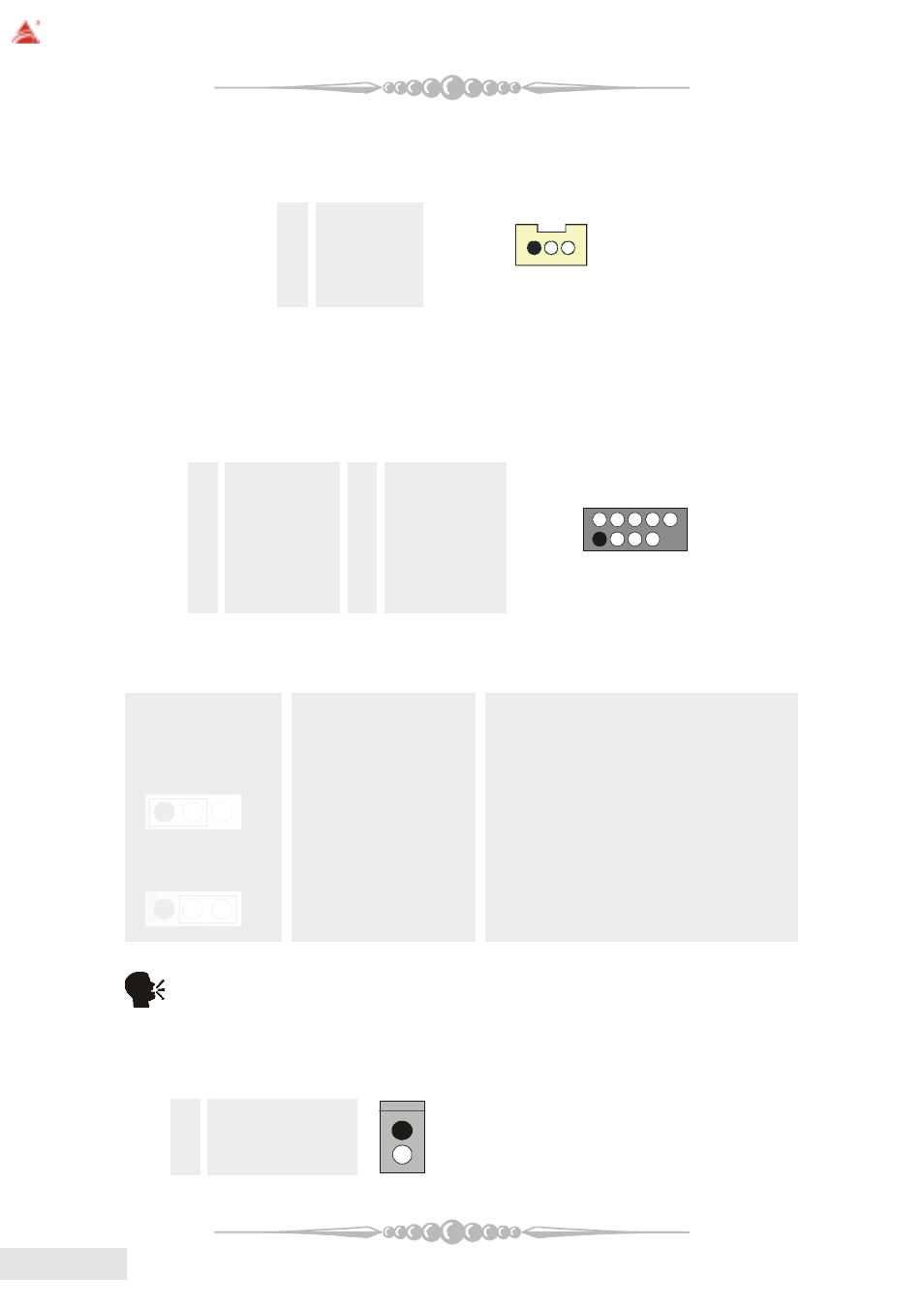

(8) Wake On LAN Header: JWOL1 (optional)
This connector allows you to connect to a LAN card with Wake On LAN
function. You can wake up the computer by remote control through a local area
network.
(9) Front USB Header: JUSB1/ (JUSB2: optional)
The motherboard provides one/(two) USB 2.0 Pin Header. USB 2.0 technology
increases Data transfer rate up to a maximum throughput of 480 Mbps, which
is 40 times faster than USB 1.1, and is ideal for connecting high-speed USB
interface peripherals such as USB HDD, digital cameras, MP3 players, printers,
modems, etc.
Pin Assignment
Pin Assignment
1
+5V(fused)
2
+5V(fused)
3
USBP-0/(-6)
4
USBP-1/(-7)
5
USBP+0/(+6) 6
USBP+1/(+7)
7
Ground
8
Ground
9
KEY
10 NC
(10) Power Source Selection for USB: JUSBV1/JUSBV2/JUSBV3v (optional)
JUSBV1/JUSBV2
Assignment
Description
JUSBV3
Pin 1-2 close
+5V
JUSBV1: 5V for J1394_USB1
JUSBV2: 5V for JUSBLAN1
JUSBV3: 5V for JUSB1 port.
Pin 2-3 close
+5V Standby Voltage
5V standby to power on.
Note: In order to power-on USB devices function, "JUSBV1/JUSBV2/
JUSBV3" jumper cap should be placed on pin 2-3 respectively.
(11) Case Open Connector: JCI1 (optional)
Pin Assignment
1
Ground
2
Case Open Signal
JWOL1
1
Pin Assignment
1
+5V_SB
2
Ground
3
Wake up
