6

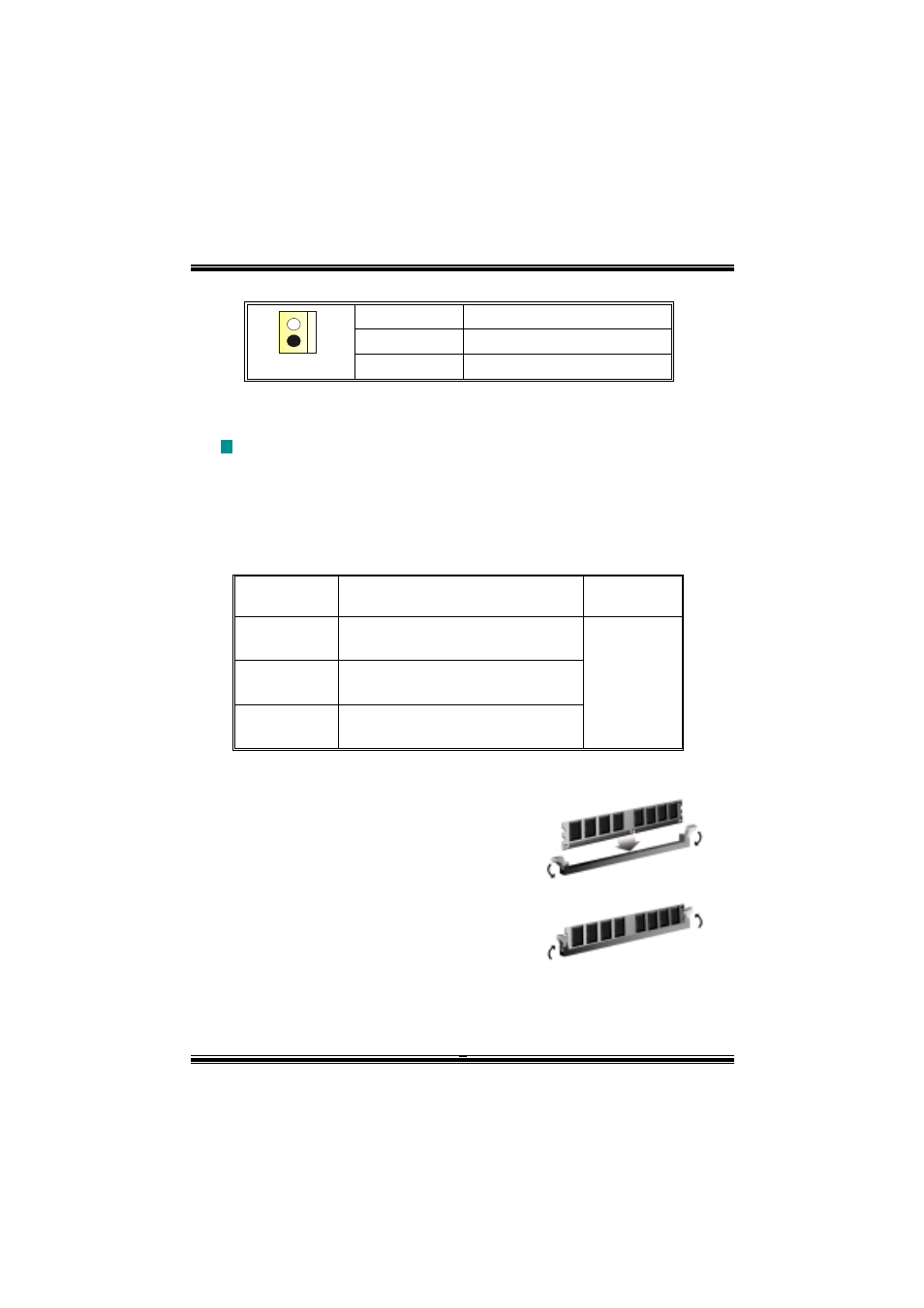

North Bridge Fan Header: JNFAN1
Pin No. Assignment
1 Ground 1
JNFAN1 2 +12V
DDR DIMM Modules: DIMMB1-2, DIMMA1
For Dual-channel DDR (128-bit) high performance, at least 2 or more
DIMM modules must be installed. (It has to be the combination of
DIMMA and DIMMB.) With only one DIMM installed, the memory
performs only at 64-bit.
DRAM Access Time: 2.5V Unbuffered DDR 266/333/400 MHz Type required.
DRAM Type: 64MB/ 128MB/ 256MB/ 512MB/ 1GB DIMM Module (184 pin)
Total Memory Size with Unbuffered DIMMs
DIMM Socket
Location
DDR Module Total Memory
Size (MB)
DIMMB1 64MB/128MB/256MB/512MB/1GB
*1
DIMMB2 64MB/128MB/256MB/512MB/1GB
*1
DIMMA1 64MB/128MB/256MB/512MB/1GB
*1
Max is
3GB
***Only for reference***
Installing DDR Module
1. Unlock a DIMM slot by pressing the
retaining clips outward. Align a DIMM on
the slot such that the notch on the DIMM
matches the break on the slot.
2. Insert the DIMM firmly and vertically into
the slot until the retaining chip snap back in
place and the Dimm is properly seated.
