12

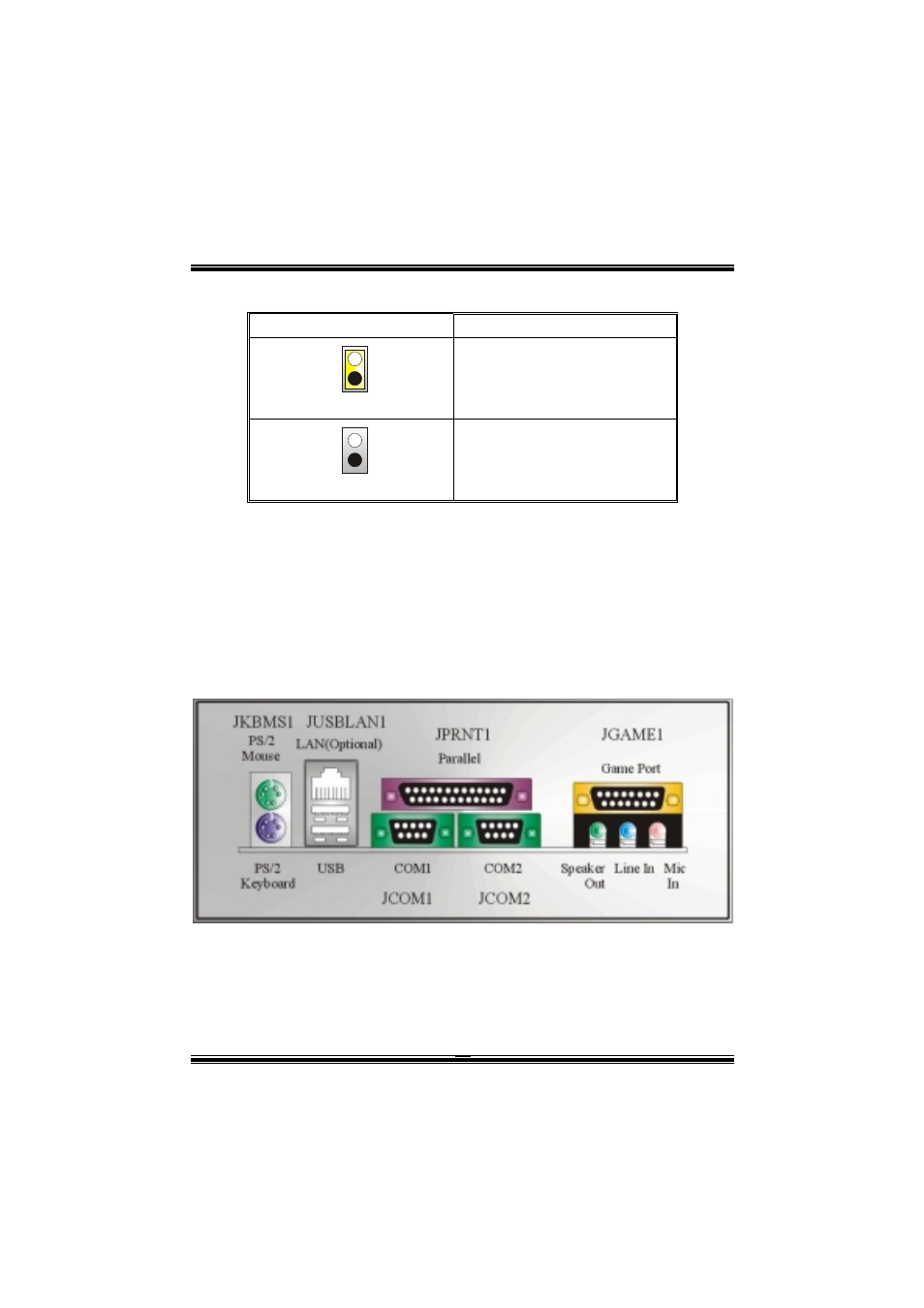

System Operation Mode: JCLK3













Note: When overclock function failed and system is unable to boot-up, please
follow the instruction below:

1.

Turn off the system.

2.

Closed the JCLK3 jumper.

3.

Turn on the system.

4.

Enter CMOS setup menu and load defaults settings.

5.

Turn off the system.

6.

Open the JCLK3 jumper.

7.

Turn on the system.

Back Panel Connectors






JCLK3 Assignment

1

Pin 1-2 Close

User Mode (default)

(133/ 166/ 200 MHz)

1

Pin 1-2 Open

Safe mode

(100 MHz)
