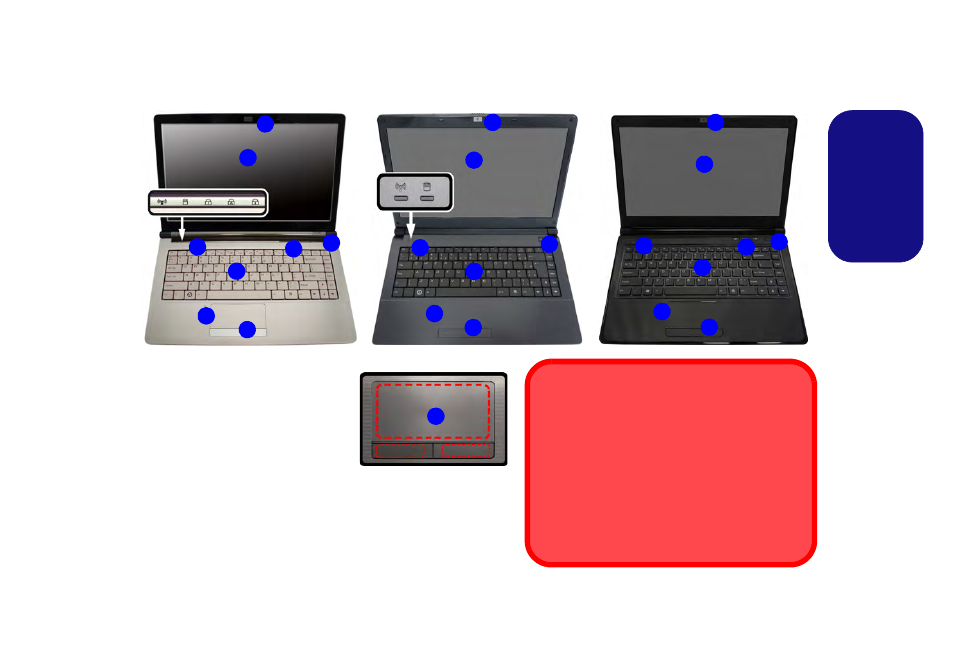

System Map: Front View with LCD Panel Open (Model A)
4
6
3
5
7
1
Note that the Touchpad
and Buttons valid opera-
tional area is that indicat-
ed within the red dotted
lines above.
8
6
3
5
7
1
8
Design I Design II
14” (35.56cm)
2 2
8
Figure 2
Front View with LCD Panel Open
(Model A)
1. PC Camera (Optional)
2. LCD
3. Power Button
4. Hot-Key Buttons (Designs I & III
Only)
5. LED Status Indicators
6. Keyboard
7. Built-In Microphone
8. Touchpad & Buttons
14” (35.56cm)
4
6
3
5
7
1
8
Design III
2
14” (35.56cm)

Wireless Device
Operation Aboard Aircraft
The use of any portable electronic transmission de-
vices aboard aircraft is usually prohibited. Make sure
the wireless modules are OFF if you are using the
computer aboard aircraft.
Use the key combinations to toggle power to the 3G/
WLAN/Bluetooth modules, and check the LED indi-
cator/visual indicator to see if the modules are pow-
ered on or not (see
Table 5 on page 10 ).
