System Map: Front, Left, Right, Rear & Bottom Views (Model B)
2
1
7
8 4 6
3
Left
Right
5
Front
Rear
10
13 11
14
12
6
9
16
15
7
Bottom
17
18
7
18
19
7
7
7
15

USB 3.0 Port
The USB 3.0 ports
are colored
blue. USB 3.0 will
transfer data much
faster than USB
2.0, and is back-
wards-compatible
with USB 2.0.
6

Disc Emergency Eject
If you need to manually
eject a disc (e.g. due to
an unexpected power in-
terruption) you may push
the end of a straightened
paper clip into the emer-
gency eject hole. Do not
use a sharpened pencil
or similar object that may
break and become
lodged in the hole.

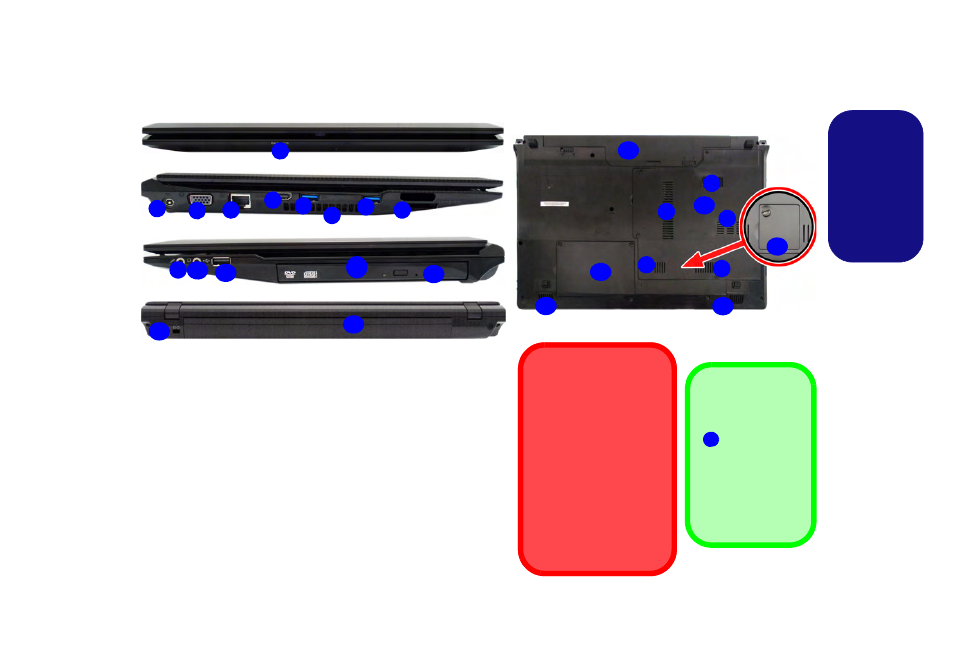

Figure 7 - Front, Left, Right, Rear & Bottom Views (Model B)
1. LED Power Indicators
2. DC-In Jack
3. External Monitor Port
4. RJ-45 LAN Jack
5. HDMI-Out Port
6. 2 * USB 3.0 Ports
7. Vent
8. Multi-in-1 Card Reader
9. Microphone-In Jack
10. Headphone-Out Jack
11. USB 2.0 Port
12. Optical Device Drive Bay
13. Emergency Eject Hole
14. Security Lock Slot
15. Battery
16. Component Bay Cover
17. Hard Disk Bay Cover
18. Speakers
19. USIM Card Cover
(Optional)
