When playback function is running, 4 channel keys select camera to be
displayed as single full screen and the MODE key makes quad display
mode.
VCR
ENTER
VCR
ENTER
ZOOM
MODE
Playback Exit Single Quad
Audio Display (Only with Audio color Quad system)

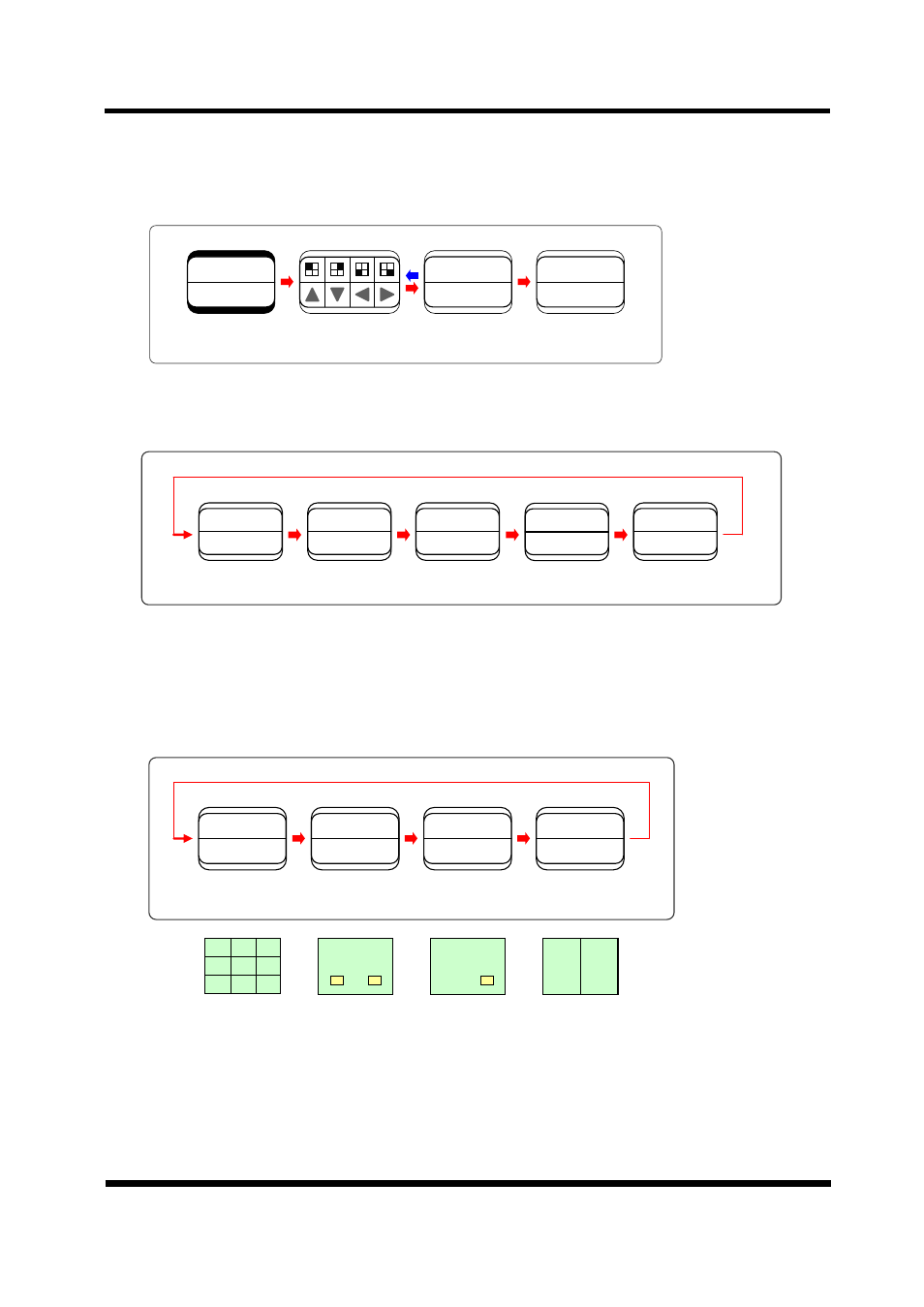

The display modes are circulated as the following sequence.
VCR
ENTER
Audio 1 Audio 4 Audio 2 Audio 3
VCR
ENTER
VCR
ENTER
VCR
ENTER
VCR
ENTER
Exit
Multi Channel Display
The display modes are circulated as the following sequence, Non-realtime
8 Split, 2 Picture-in-Picture, 1 Picture-in-Picture and Dual Split for each
MODE key.
ZOOM
MODE
ZOOM
MODE
8 Split 2 PIP
ZOOM
MODE
1PIP
ZOOM
MODE
Dual Split
UP and DOWN key selects the channel in 2 Picture-in-Picture, 1 Picture-
in-Picture and Dual Split mode, and then the selected channel boundary is
blinked. The camera in the selected channel can be chosen by LEFT and
RIGHT key
