6

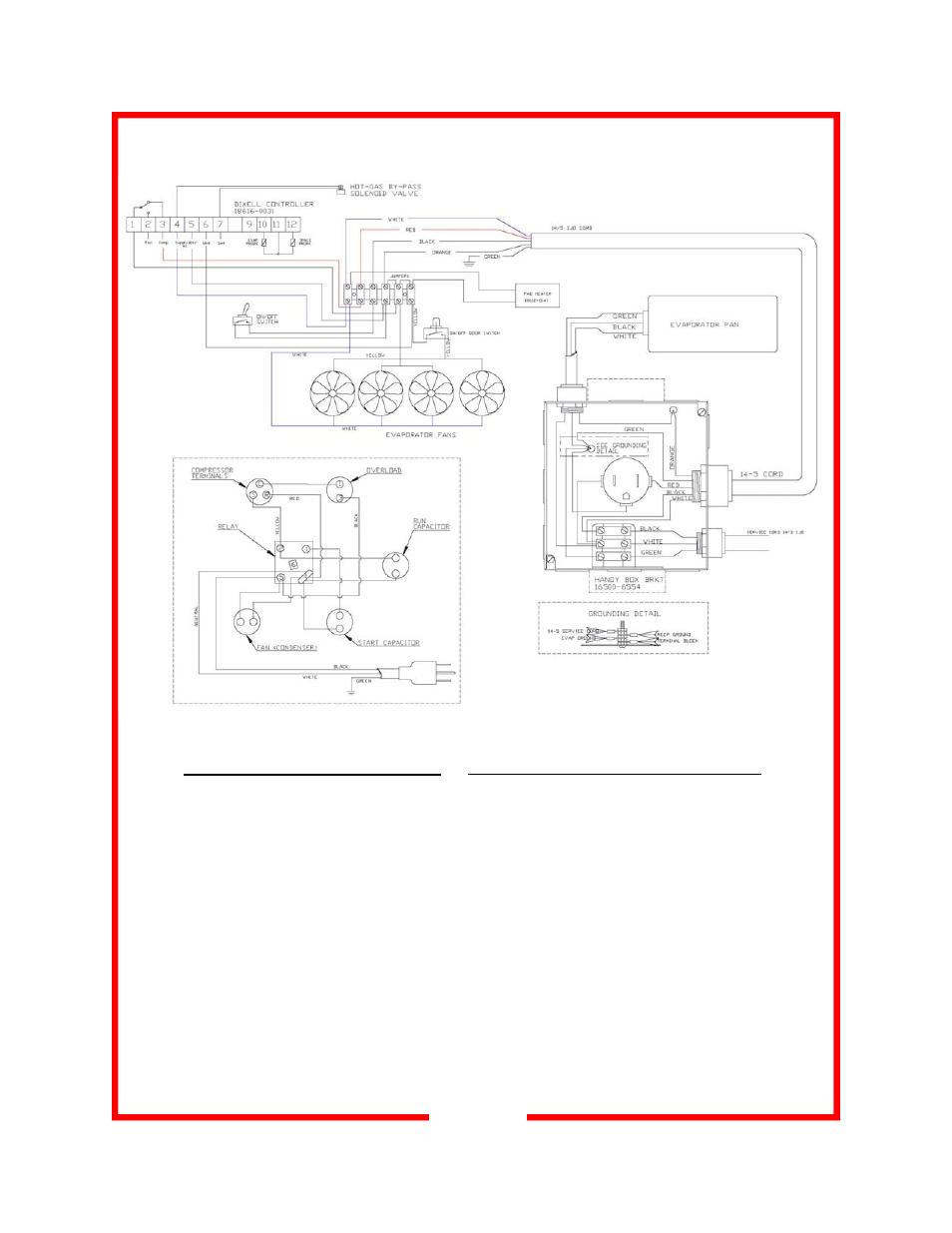

PHB15 WIRING DIAGRAM & PARTS LIST
Part Number Description
18614-0051 Accumulator 5/8 Suct.
16002-5194 Push handle assembly
18614-0282 Blade, fan evaporator
18602-0031 Boot, toggle switch
29034-0050 Breaker strip, grey
18301-6214 Swivel caster, no brake
18301-6215 Swivel caster with brake
18614-0278 Evaporator coil, #5575
18612-5063 Condensing unit R134a 3/4 HP
18614-0095 Condensate evaporator 120v
18605-0017 Cord with plug 14/3 HSJO, 5-20P
16503-2999 Evaporator cover
29038-4053 Tempered glass door
18614-0063 Filter drier C-052-S
29038-4129 Gasket for glass door
16505-5704 Front grill
18303-0080 SST Flush pull handle
16090-2525 Door hinges
16505-5703 Side vent panel
Part Number Description
18302-0050 Magnetic door latch, chrome offset
18302-0048 Magnetic door latch, locking, chrome offset
18614-0242 Evaporator motor, 120v
18302-0054 Door strike, SST #R25
18602-0013 Push button door switch
18602-0030 Toggle switch, 30A
18616-0031 Digital controller
18616-0013 Digital controller probe
18614-0093 Expansion valve, EFJ-1/2-C 3x4 SAE 30”
16503-5504 Door hold open retainer bracket
18305-0076 Rubber door stop bumper
18141-0030 Mounting rivet for 18305-0076 bumper
16001-1621 Bottom left pan slide duct
16001-1622 Top left pan slide duct
16001-1623 Bottom right pan slide duct
16001-1624 Top right pan slide duct
18614-0028 HGBP Solenoid, 120v
18612-0147 Pad Heater
120v, 13.5 running amps
Standard Electric
