4

+

+

+

+

I N P U T

+

Connect the leads with the red
bands to the red (+) speaker
terminals on the amplifier and
BassCase, and the unmarked
leads to the black (-) terminals.

Note: Connecting all speaker wires
identically assures that the speakers
operate “in-phase” (their cones move in
and out together). While doing no damage,
“out-of-phase” connections can muddy the
stereo effect, and sounds like solo voices
that should appear to come from a point
between the satellites will sound “split”
between them.

To connect satellite speaker wires to
amplifier, push back on spring- loaded
tab above or beneath each connector,
insert bared end of wire, then release
tab to lock wire in place.

To connect the

BassCase, push down on

spring-loaded connectors, insert bared wires
into holes, then release connectors.

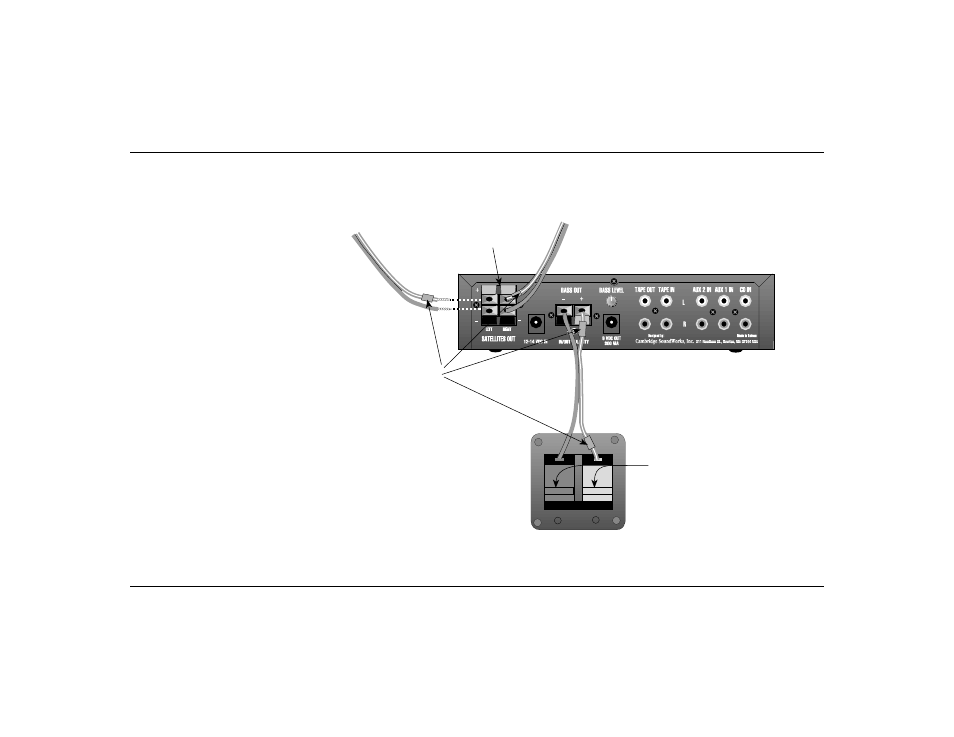

Amplifier rear panel

Right satellite
speaker wire

Left satellite
speaker wire

BassCase
speaker connector

BassCase
speaker wire

As shown in the diagram at

right, connect one end of the
unattached speaker wire to the
speaker terminals on the side
of the

BassCase and the other

to the amplifier’s Bass Out
terminals. Attach the leads
with the red tabs to the “+”
terminals and the unmarked
lead to the “–” terminals.
