■ Product Summery

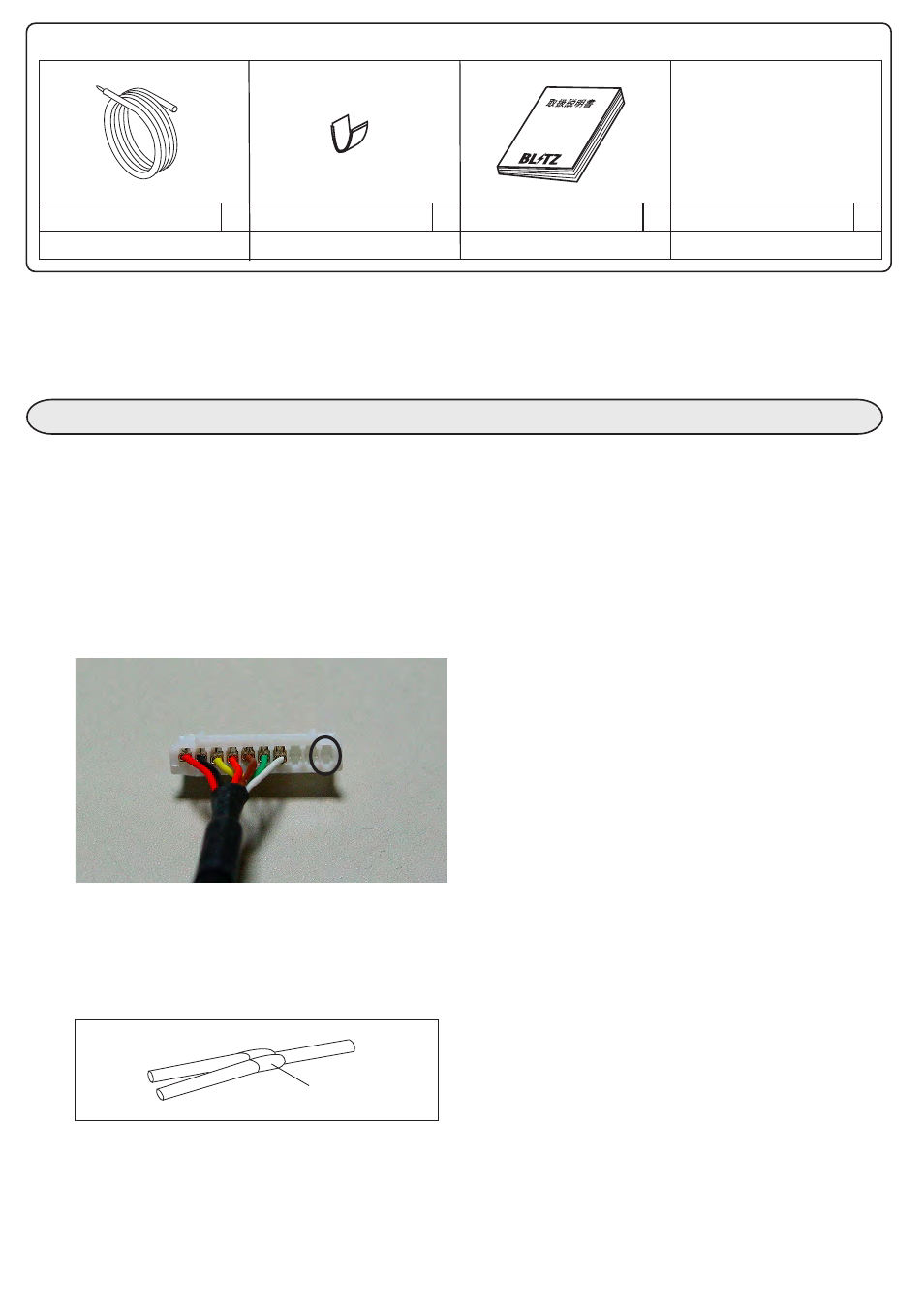

Parts List (Please check before installation)
- Installation -
This is an optional product for the Blitz Throttle Controller. It returns the control of the throttle con-
troller back to stock while reversing.
Main Harness
Code No. 14996
Installatioin Manual Splice
(1) Install the Throttle Controller
Please follow the installation procedures of the Throttle Controller Installation Manual.
(2) Check the operation of the product.
Redo the installation procedure if it does not operate properly.
(3) Install the “Reverse Cancel Harness” to the 10th pin of the controller.
Remove the “10 Pin connector” from the controller and insert the “Reverse Cancel Harness”
all the way in to the open 10th pin. (See location circled from the picture)
※Double check that the pin is all the way in and locked in place.
The colors of the wires are from left:
Red, Black, Yellow, Orange, Brown, Green and
White.
The “Reverse Cancel Harness” (Pink) is installed to
the “Reverse Lamp Switch”. Do not connect the
“10 Pin Connector” until the installation procedure
is finished.
(4) Connection to the “Reverse Lamp Switch”
Install the other end of the “Reverse Cancel Harness” that was installed in step (3) to the
“Reverse Lamp Switch” using the supplied “Splice”. (See below figure)
※ Install to a +12V power supply when the trans-
mission is selected in reverse. Check the vehicle
manual. Make sure to tighten firmly the splice.
(5) Operational Check
The installation is finished by connecting the “10 Pin Connector”.
Double check the operation before driving.
10 Pin Connector
Splice
4
After installing the “Reverse Cancel Harness”, the
display will not change even when the vehicle is in
reverse.
