The Optional Harness is not included with SBC iD

1. Explanation of the harness

The harness consists of 3 signal conductors and 1 ground wire.
BROWN wire is used for input DATA 1
YELLOW wire is used for input DATA 2
GRAY wire is used for input DATA 3
BLACK wire is used for ground.

2. Installation

The SBC I-D can read voltage between 0-16 volts. The numeric voltage reading can be displayed
on DATA 1, 2, 3. The data can be obtained from the ECU output or additional sensor outputs such
as the "Blitz" Air Fuel analyzer. You may connect the yellow, brown, or gray data wires to the
output signals with the splice or the wire tap set. Use the ground eyelet for the black ground wire.

* Please consult the factory service manual for the ECU signal output.

3. EXAMPLES of some vehicle readings

[ water temp. ]

LOW ( V )

1.20

[ intake air temp ]

LOW ( V )

0.50

FIT

80.00

FIT

0.00

HIGH ( V )

3.50

HIGH ( V )

3.40

FIT

20.00

FIT

80.00

[ throttle ]

LOW ( V )

0.50

[air flow ]

LOW ( V )

0.20

FIT

0.00

FIT

0.00

HIGH ( V )

4.20

HIGH ( V )

4.50

FIT

100

FIT

16.00

Here are some examples of the Blitz Air Fuel Analyzer readings. The Blitz A/F Analyzer is an
optional 5 wire wide band O2 unit used for tuning vehicle air fuel mixtures.

0-5 ( V ) Lambda Readings

0-16 ( V ) Air Fuel Ratio Readings

LOW ( V )

2.50

LOW ( V )

0.00

FIT

8.00

FIT

0.00

HIGH ( V )

5.00

HIGH ( V )

16.00

FIT

16.00

FIT

16.00

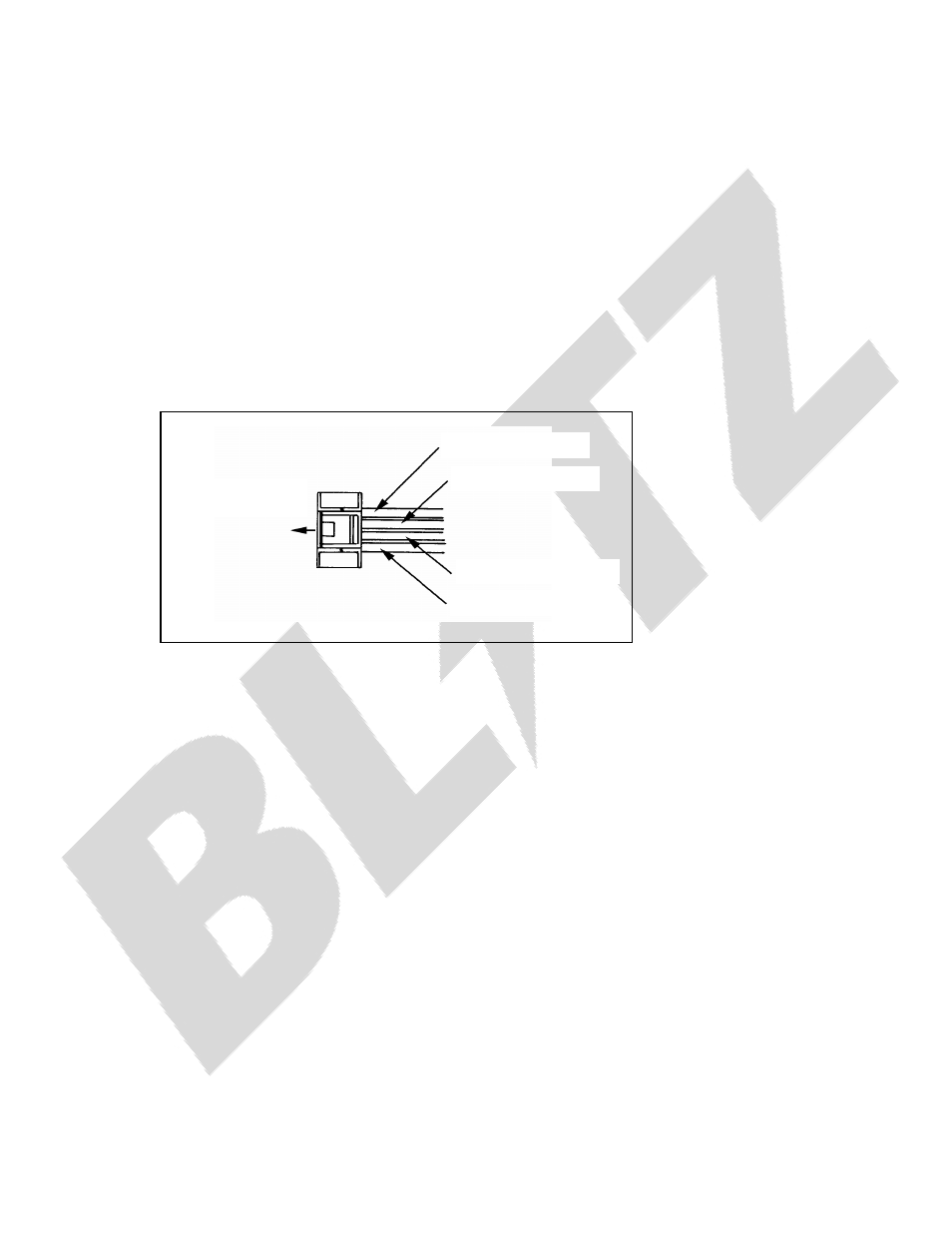

To SBC I-D
control box

Black wire - ground

Grey wire - DATA 3

Yellow wire - DATA 2

Brown wire - DATA 1
