BLITZ FATT Advance Plus - Manual (Page 2)

Equipment parts list
※Size is roughly estimated. Also Contents may change without notice.
Controller ×1（ Harness 1.4m)
（Installation Procedure）
①
Disconnect the battery before the installation.
② Connect the BLITZ optional harness between the Key cylinder and vehicle harness.
③ Connect the BLITZ Optional Harness and the main harness. (※1）
④ Connect the GND harness(Black) to the ground.
⑤ Connect the Parking signal input harness (Purple) to the parking signal harness at vehicle side.
⑥ In case the boost sensor (Available Separately) is used, connect the sensor harness and the boost sensor set.
⑦ When the boost sensor is connected, select the MODE SWITCH to 1. If not, please select to 2.
⑧ Connect the controller and the main unit.
⑨ Place the controller and the main unit on the body by using the double side adhesive.
⑩ Connect the battery.
１ ２
DISPLAY MODE
Main Unit ×1（ Main Harness 1.0m)
（Sensor harness 0.4m)
3P Cross harness x 1（0.1m)
Attachment set ×1
（ Tie band/ Electro tap/ Double side adhesive) Instruction manual ×1
Specification
This device is for the purpose of protect engine by after idling. Optional harness is required when installing. (Available separately)
■ Slim and compact design are used on the controller.
■ Matt black body color for premium look. Also TN LCD is used for the better visiblity.
■ Enable various display by combined with 7 Segments display and a bar graph. Simple operation with 3 buttons.
■ Separate type body are used for flexible installation.
●AUTO MODE： Installed new developed algorithm for calculating the after idle time automatically. 3 types of mode「High/Standard/Low」 can be selected.
●MANUAL MODE: 2CH are available for setting up the MANUAL MODE. Enable to set maxmum 600 sec(10 Min) of the after idle time
●SAFETY Function： Safety kill switch is originally installed. In case that the hand brake is released during the after idling, the function kills the Engine by compulsion.
●OPTION： By adding the boost sensor set BS-01( Available Separately), enable to work as a boost gauge .
Standard options for displaying the battery voltage, digital boost pressure. as well as the peak hold and warning function

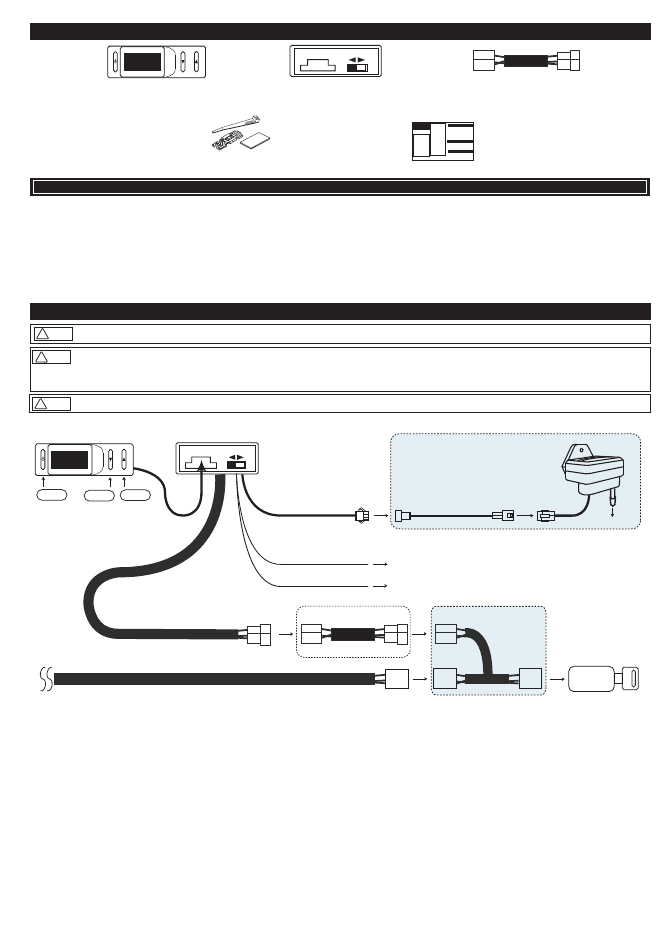

Installation
Controller
１ ２
DISPLAY MODE
Main Unit
Sensor harness
MODE SW
P button UP Down
※MODE１：When boost sensor is connected
※MODE２：When boost sensor is not
connected.
To the intake manifold.
Boost Sensor Set (Available Separately)
Parking Signal input (Purple)
To the parking signal harness
GND Line（Black ） To the Body Ground Main Harness
※ Red ：12V BATT
※ Green ：ACC
※ Blue ：12V IGN
To the BLITZ Optional Harness
（Available Separately)
Key Cylinder
Vehicle Harness
3P Cross Harness
Use this when ※1 is occured
※（１） Some vehicle may have an engine stall during the count down due to the faint signal. If it is happen, please connect the 3P cross harness between the main harness
and the BLITZ Optional Harness.
By using 3P Cross Harness, the timer may start counting down when engine is started. However, it is not malfunction.
If above sympton is not occured, 3P Cross Harness are not used. Please connect the main harness to the BLITZ optional harness directly.
Danger ！
Warn ！
Caution ！
■ Please work at a factory with mechanic who has special knowledge of the installation.
■ Please connect to the Parking brake signal harness. If ignore, it may cause of malfunction and (or) serious accident.
■ Do not install the product at a location where is interferred the driving or Air Bag.
■ Do not install the product at a location where it would be highly heated or at the heater exit.
It may cause of mulfunction and (or) breakage to the electronic components.
■ Do not leave this device at a location where is get more than 60℃ or less than 0℃ for long time.
■Please use insulating tape for unused connector.
−２−
