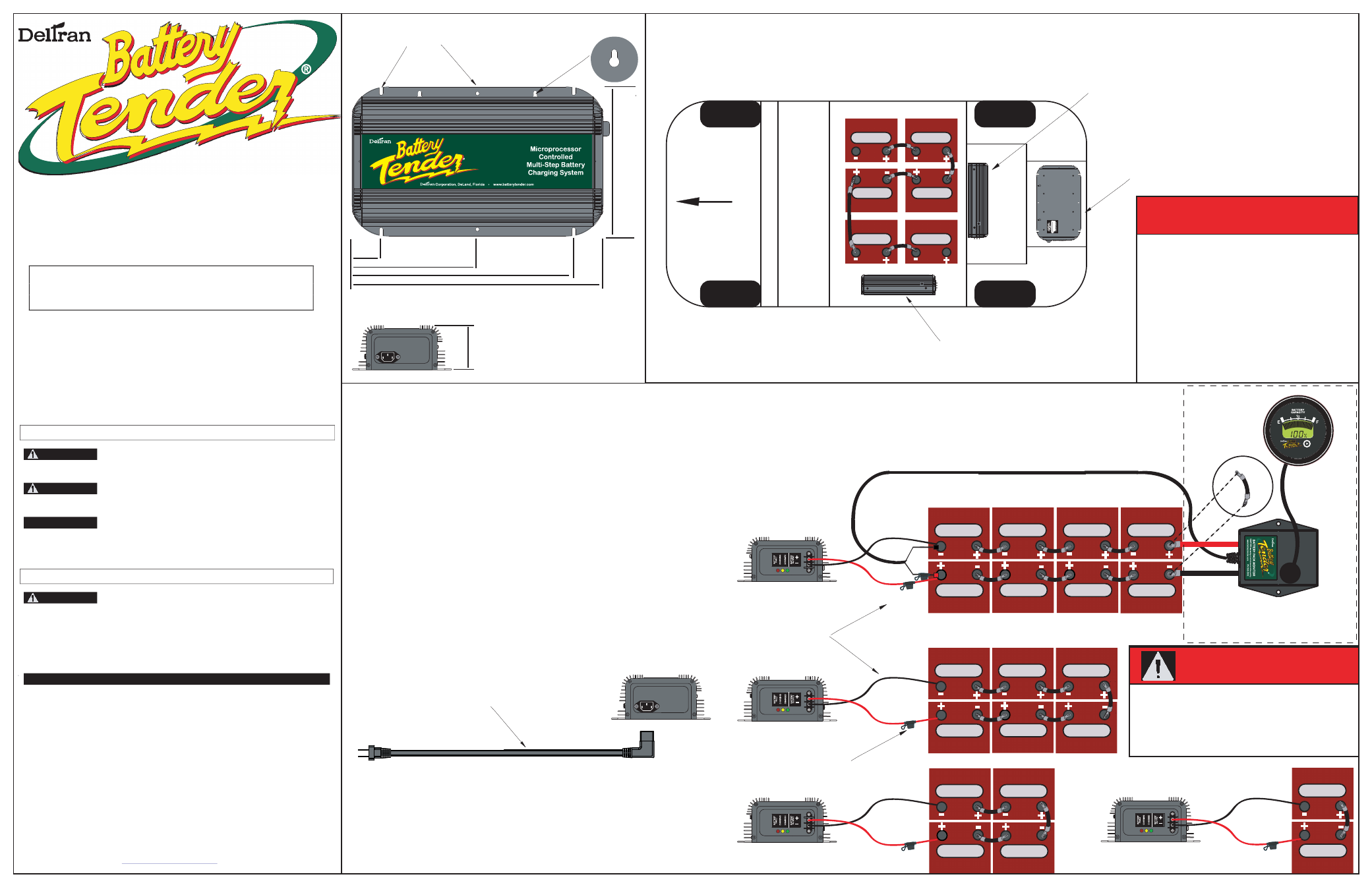

Battery Tender High Frequency On Board Battery Charger 48V @ 10A (PN 022-0170-1) Installation - Manual

DELTRAN CORPORATION
801 International Speedway Blvd.
DeLand, Florida 32724
Phone 386-736-7900 FAX 386-736-0379
www.batterytender.com
2 1 3
6 5 4
1 2
4 3
Suggested Permanent Mounting Locations.
CAUTION
Charger must be mounted in a location
that has at least four inches of clearance
between the heat sink fins and golf cart,
and is not in direct contact with rain or
splashing water.
Mounted underneath
rear seat (if equipped)
Mounted on 90 degree bracket
next to batteries.
Mounted on tub above
rear axle.
Supplied AC Cord
Supplied DC
Output Leads
or 12AWG Wire
24 or 48 volt
36 or 48 volt
48 volt
WARNING
Verify that the voltage of the charger matches
the voltage of the battery pack that the
charger is being connected to. Using the
improper charger may result in damaged to
charger and/or batteries.
Wiring Instructions for SMT Golf Car Charger:
1. Verify that the battery pack voltage matches the chargers voltage, if uncertain check battery pack with a volt meter.
2. Mount the charger in a location that is not in direct contact with rain or splashing water, and has at least 4 inches
of clearance for the cooling fins to function properly.
3. Connect the DC output leads small ring terminals to the charger, red wire to positive, and black wire to negative.
4. Connect the DC output cables large ring terminals to the battery pack, red wire to
the positive wire of the battery pack, and black wire to the negative.
5. Install (optional) Battery Capacity Gauge according to instructions
supplied with the optional products.
6. Connect AC cord to charger. Plug into grounded wall
outlet when batteries need charging.
P A R T N O . 0 2 2 -0 1 6 9 -1
IN P U T : 1 0 0 -1 2 0 V ~ , 11 A , 5 0 /6 0 H z
O U T P U T : 3 6 V , 1 5 A
M a d e i n C h in a
2 1
3 4
5 6
Front
Golf Cart
3 4
6 5
2
7
1
8
Black
Red
Battery Capacity
Gauge
(Optional
Equipment)
Refer to Battery Capacity
Gauge instruction manual
for installation of gauge.
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS :
This manual contains important
safety and operating instructions for the Battery Tender Battery Chargerâ
High Frequency SMT Golf Car Chargers. CAREFULLY READ THESE
INSTRUCTIONS BEFORE USING THE BATTERY CHARGER.
WARNING AND CAUTION LABEL DEFINITIONS:
WARNING
WARNING indicates a potentially hazardous situation, which, if
not avoided, could result in serious injury or death.
CAUTION
CAUTION indicates a potentially hazardous situation, which, if
not avoided, may result in minor or moderate injury.
CAUTION
CAUTION used without the safety alert symbol indicates a
potentially hazardous situation that if not avoided, may result in
property damage.
GENERAL PRECAUTIONS
WARNING
Battery posts, terminals and related accessories contain lead
and lead components, chemicals known to the State of
California to cause cancer and birth defects or other
reproductive harm. Always wash your hands after handling
these devices.
High Frequency SMT Golf Car Charger
Battery Tender Battery Chargerâ Models:
12 Volt 20 Amp, 24 Volt 20 Amp, 36 Volt 15 Amp, 48 Volt 10 Amp
WARNING – RISK OF EXPLOSIVE GASES
WORKING WITH LEAD ACID BATTERIES AND BATTERY CHARGERS:
All lead acid batteries have the potential to emit gasses that may combine into a
combustible or explosive mixture. In many cases, it is possible that lead acid
batteries will emit these gasses during normal discharge and charging operations.
Because of this potential danger, it is important that you follow the precautions
recommended by both the battery and battery charger manufacturers before using
either one.
USING MANUALS: Study all of the battery manufacturer's precautions and
specific recommendations for safe operation such as not removing cell caps while
charging and the recommended rates of charge (charger output current ).
Installation Instructions for Permanent
Vehicle Mounting
1
2
12 volt
Mounting holes diameter
3/16" use #10 hardware. Mounting hole
diameter 11/64"
use #8 hardware
7.75"
13"
1.5"
6.5" 11.5"
3.5"
25A Fuse
