Making the connections
You can connect one transmitter and up to eight receivers for each LIFESTYLE ® system.
The transmitter and receiver each use one of the two supplied Bose ® link A cables, which are
7 feet (2 meters) long. Each unit also connects to power using one of the two supplied power
packs.
Note: Instructions for use with a non-Bose tuner/receiver vary slightly from those below. For
details, refer to “Instructions for non-Bose or older Bose
® products” on page 8.
For the transmitter
1. Connect one end of a Bose link A cable to the jack labeled Bose ® link INPUT on the
transmitter connection panel.
2. Connect the other end of the cable to the Bose link speaker jack, below the Main
Speaker jack, on the LIFESTYLE
® media center connection panel (Figure 3).

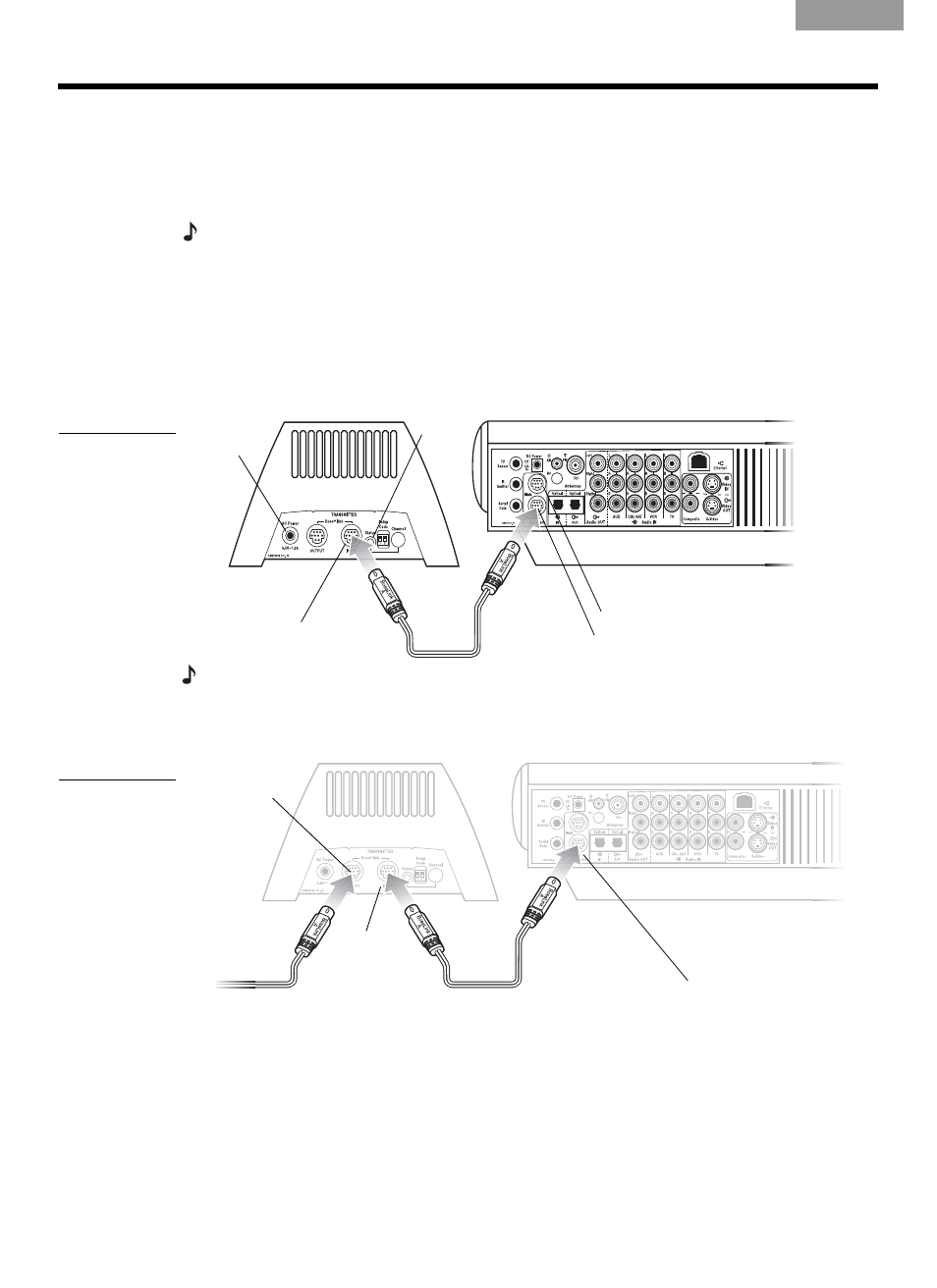

Figure 3
Transmitter
connecting to a
LIFESTYLE
®
media center
Bose link Speaker jack
Transmitter
AC
Power
Bose ® link
INPUT
LIFESTYLE ® media center
Bose link
A
cable
Status
LED
Main Speaker jack
Note: If another product is already connected to the Bose link Speaker jack on the media
center, disconnect it there. You can use the wireless audio link to replace this wired connection.
Or, to continue using this connection, reconnect the cable to the jack labeled Bose link OUTPUT
on the transmitter connection panel (Figure 4).
Figure 4
Transmitter and
another product
connecting to a
LIFESTYLE
®
media center
Transmitter LIFESTYLE ® media center
Transmitter connection
Bose ® link
INPUT
Bose link
OUTPUT
Other product connection
Bose link Speaker jack
See “Connecting to power” on page 7 to complete your setup of the transmitter.
