Artograph Light Tracer Elite Light Box - Manual (Page 2)

2838 Vicksburg Lane North, Plymouth, MN 55447 USA
Tel: 888-975-9555 Fax: 763-553-1262
[email protected] www.artograph.com
PARTS LIST:
Elite Viewing Surface ..................................... 151-735
8-watt Fluorescent Lamp ............................... 106-049
Elite II Viewing Service .................................. 151-785
15-watt Fluorescent Lamp (2) ....................... 106-050
The fluorescent lamp is available from any hardware supply store or directly from Artograph via our toll-free number at
1-888-975-9555, or online at www.artograph.com.
MAINTENANCE:
CLEANING: Clean the plastic and aluminum surfaces with a soft cloth and nonabrasive cleaner. Do not apply cleaner directly
onto light box as it may seep inside the unit.
LAMP REPLACEMENT:
Caution: Be certain that the light box is unplugged before
replacing the lamp.

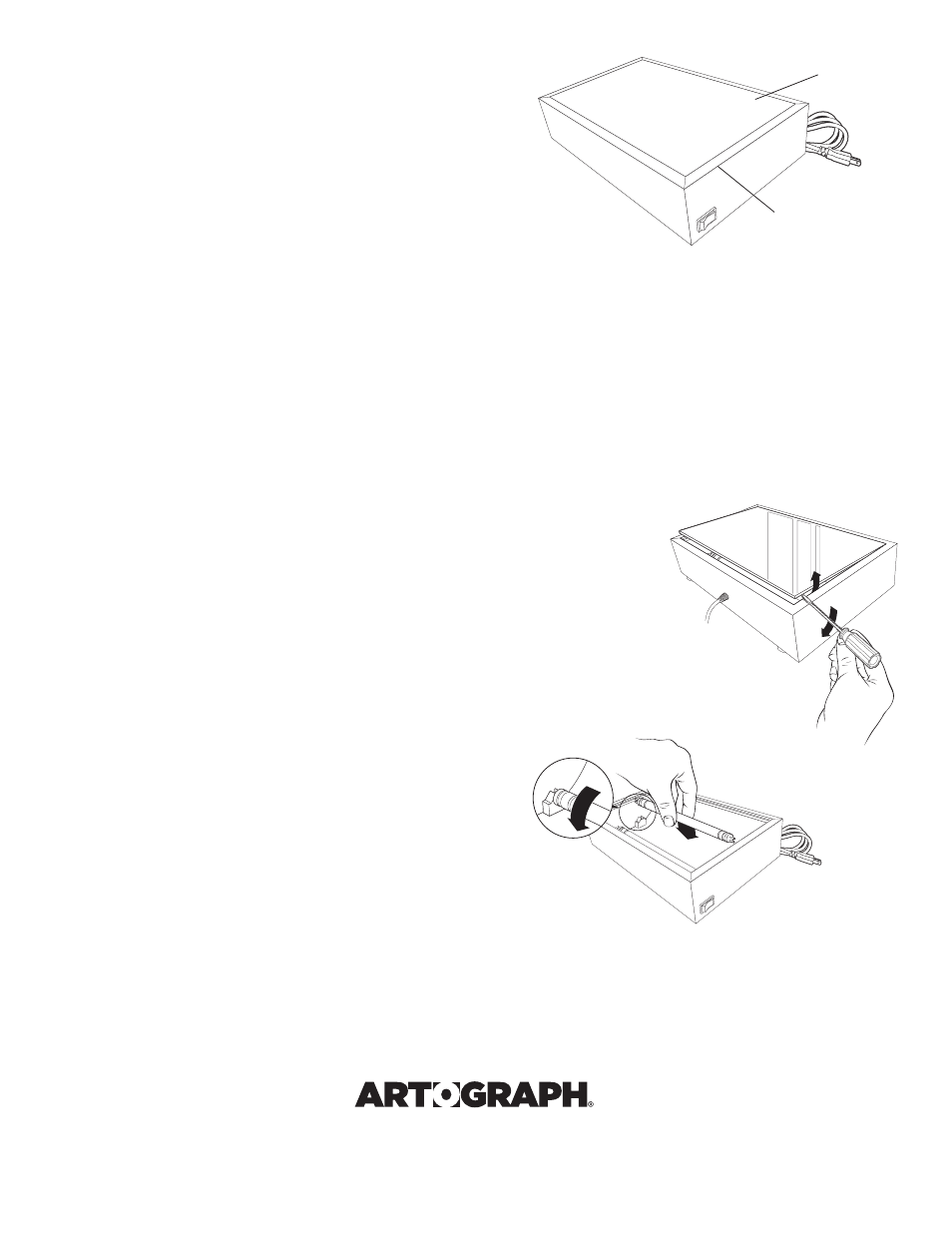

To Remove Lamp: (Figure 1)
1. Pry open the top edge of the acrylic viewing surface by
placing a screwdriver in the small hole located at the back left
corner of the light box. Press the tip of the screwdriver
up to release the acrylic. Grasp the loosened corner of the
acrylic and lift out of remaining corners to remove.
2. Grasp lamp with both hands and turn it approximately
¼ turn towards you until the tension releases in each socket.
Lift and remove the used lamp.
To Reinstall Lamp: (Figure 2)
1. Insert both ends of the lamp with the prongs vertical into
the lamp socket.
2. Turn the lamp approximately ¼ turn until you feel it lock into
place.
3. Snap acrylic surface back into place by inserting one
side first and then the other. Using slight pressure, press
on all four sides to ensure that it is locked in place.
Figure 1
Figure 2
Acrylic Viewing Surface
Daylight Fluorescent
Lamp (inside)
OTHER ARTOGRAPH PRODUCTS:
Artograph manufactures a full-line of opaque art projectors, light boxes, spray booths and Open Studio furniture.
Please visit us at www.artograph.com for more product information.
