PG-2000 Digital Pressure Gauge
APG
Automation Products Group, Inc.
®
■
Ordering Information
PG-2000 – – PSI –
–
–
–
–
–
– – P0 –
–
Range
20.00
100.0
160.0
200.0
250.0
500.0
1000
2000
Pressure Type
G
▲
Gauge
G2
High resolution gauge
Auto Off
A0
▲
No auto off
A4
16 minute auto off
Zero Adjustment
Z0
▲
Cover screw
Z1
Z knob
Port
F0
▲
Bottom
F1
Rear
F6
Rear port with panel bracket
F7
Bottom port with rubber boot
Operation
L0
▲
9V battery
L4
External power
Electrical Connection
E0
▲
No connector
E2
1/8 in., 3-conductor external power
Electrical Cable Length
W0
0 ft. (Use with E2 (no cable) connections)
W1-W5
Use with E2 connections. (See Electrical Cable Length chart for details)
Accuracy (see Linear Accuracy Chart for details)
N0
▲
±0.25%
N1
±0.25% with NIST certification
N3
±1%
N4
±1% with NIST certification
Materials
M0
▲
15-5 SS
M1
316L SS
▲
This option is standard.
Accessories
Please order separately, by part number. When ordering a flange or boot as an accessory, they
will not be installed on the gauge.
Description
Part Number
Panel mount flange (rear port only)
512598
AC to DC external power supply (includes E2 mating connector)
511641
Rubber boot
512625
■

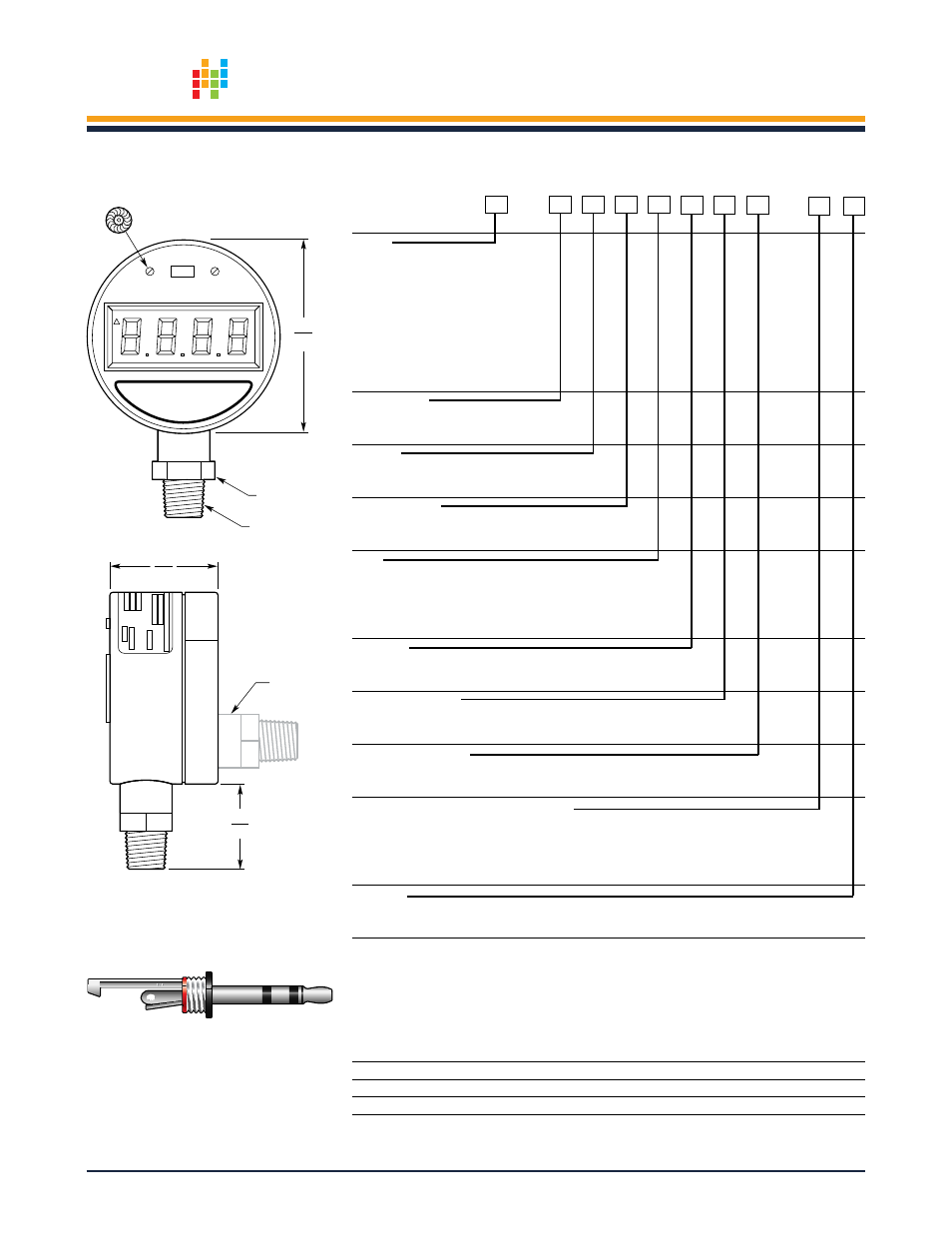

Dimensions — in./mm
Body
Center
Tip
(Note: Not to scale)
External Power Plug
Mfg.
Date:
Accuracy:
ring:
OPTIONAL
REAR PORT
1.20
30.5
1.50
38.1
Z
Automation Products Group
Logan, Utah 84321
PSI
S
3/4 HEX
1/4 NPT
2.66
67.6
OPTIONAL ZERO
ADJ. KNOB
Mfg.
Date:
Accuracy:
ring:
OPTIONAL
REAR PORT
1.20
30.5
1.50
38.1
Z
Automation Products Group
Logan, Utah 84321
PSI
S
3/4 HEX
1/4 NPT
2.66
67.6
OPTIONAL ZERO
ADJ. KNOB
