DCR-WEB Ultrasonic Web Controller
APG
Automation Products Group, Inc.
®
■
Controller Specifications
Performance
Range:
Electrostatic (DCR-1047, DCR-1057) —
6 to 120 in. (15 to 300 cm)
Ceramic (DCR-2017, DCR-2067) —
12 to 120 in. (30 to 300 cm)
Digital Inputs: Invert Switch (analog output),
Program Switch (save two program settings)
Digital Outputs: Relay: (2) programmable;
Isolated to 1500 Vrms; (2) SPST - 5 A @
250 VAC
Analog Outputs: 0-10 VDC isolated
Electrical: Isolation exceeds 2500 Vrms
Resolution: 0.1 in. (2.54 mm)
Accuracy: ±0.25% of range
Repeatability: 0.05% of full scale
Sample Rate: 40 to 120 msec, programmable
Display: 2 lines x 8 char. LCD alphanumeric
Adjustments: 4 button key pad – mode up,
mode down, number up and number down
Temperature Compensation: Internal, enabled
with ceramic transducers
Electrical
Supply Voltage:
AC —100/120/200/240 VAC; 50/60 Hz.
DC — 10–30 VDC
Total Current Draw: 50 mA max
Physical
Sensor Connector: coaxial “F” connector
Electrical Connector: terminal strips
Material: PVC housing with Screw Cover
Dimensions, Overall: 7.0 x 7.0 x 3.0 in.
(178 x 178 x 75 mm)
Rating: IP65/NEMA 4X
Mounting: Surface by means of (4) screws
Weight: 2 lb. approximately
Environmental
Operating Temperature: 32 to 140°F
(0 to 60°C)
Maximum Pressure: 15 psig at 68°F (20°C)
(1 bar)
Specifications are subject to change without
notice.
■
Transducer Specifications
Sensor: Electrostatic or Ceramic Piezo
Range:
Electrostatic (DCR-1047, DCR-1057) —
6 to 120 in. (15 to 300 cm)
Ceramic (DCR-2017, DCR-2067) —
12 to 120 in. (30 to 300 cm)
Material:
Electrostatic: Stainless Steel and Gold
Kapton
® Film
Ceramic: ABS or PVC
Dimensions:
Electrostatic: 3.5 x 2.5 x 1.5 in.
(89 x 64 x 38 mm)
Ceramic: 3 x 2 in. dia. (76 x 51 mm dia.)
Rating:
Electrostatic (DCR-1047, DCR-1057) —
NEMA 12
Ceramic (DCR-2017, DCR-2067) —
NEMA 4X
Mounting:
Electrostatic: (2) screw flange
Ceramic: (4) screw flange or 2 NPT
Operating Temperature: -4 to 140°F
(-20 to 60°C)
Maximum Pressure: 20 psig at 68°F (20°C)
Weight:
Electrostatic (DCR-1047, DCR-1057) —
0.5 lb. (0.2 kg) approximately
Ceramic (DCR-2017, DCR-2067) —
1.0 lb. (0.45 kg) approximately
Specifications are subject to change without
notice.
■

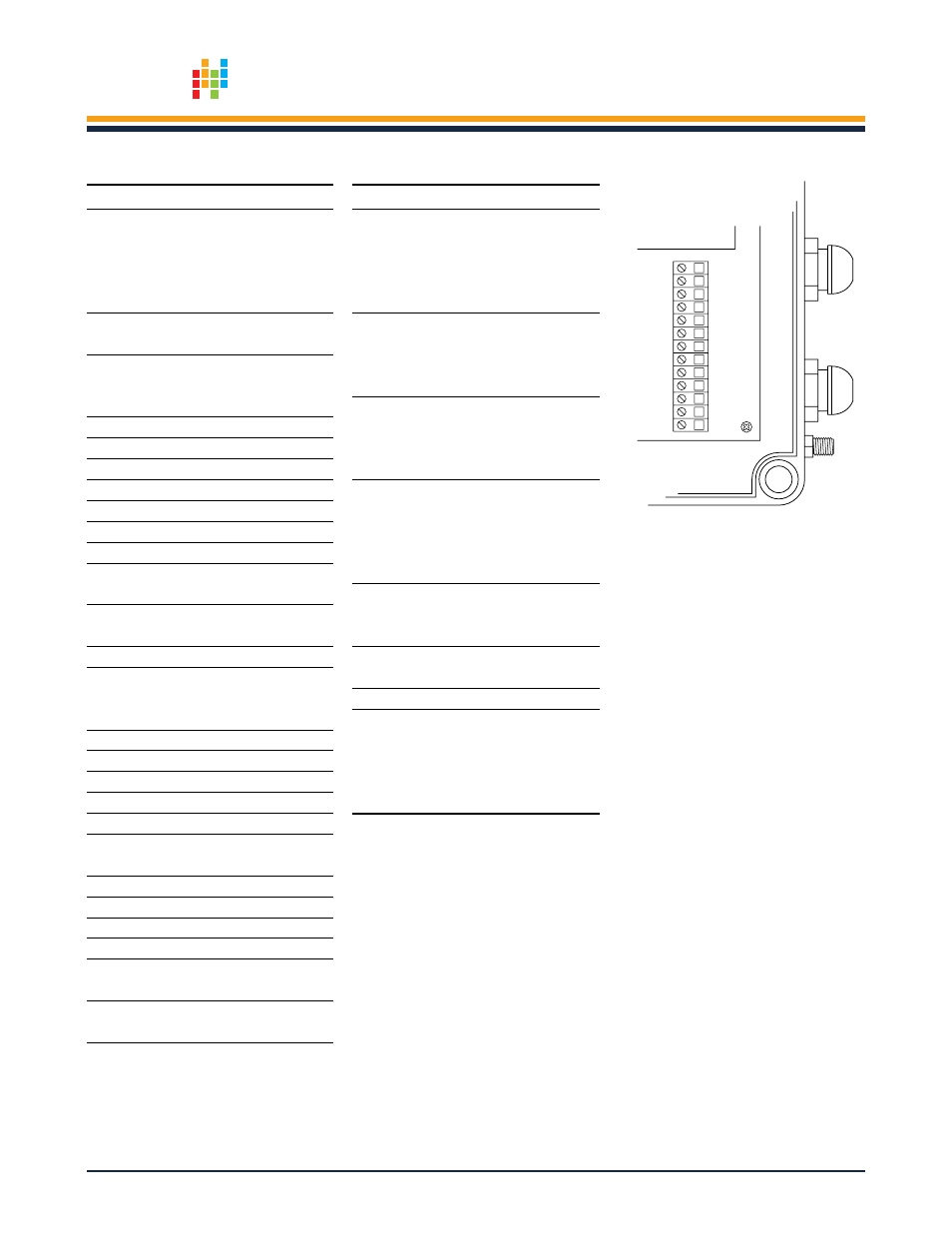

Wiring
L1
L2
GND
V out
Analog Gnd
Relay 1
Relay 1
Relay 2
Relay 2
Invert Sw
Invert Sw
Ap Sw
Ap Sw
