Options
Part Number: MPX - _____ _____ - _____ _____ - _____ _____ _____ - L_____
A B C D E F G H
APG
Automation Products Group, Inc. www.apgsensors.com
tel. 888.525.7300 [email protected]
3
A. Stem Type
□
E 0.5 in. diameter
□ R 1 in. diameter
B. Output
□ 1 Modbus RTU w/ temperature sensor
□
2 4-20 mA (loop powered, 2 wire)
□ 3 Dual 4-20 mA (loop powered, 3 wire)
C. Float 1
MPX-E (0.5 in. stem)
□ A 2 in. Round 316L SS (0.65 SG)
□ B 2 in. Round 316L SS (0.92 SG)
□ C 1.38h x 1.63d in. Cylindrical 316L SS (0.61 SG)
□
D 1.38h x 1.63d in. Cylindrical 316L SS (0.92 SG)
□ E 1.75h x 1.87d Buna-N (0.65 SG)
□
F 2.19h x 1.46d in. Oval 316L SS 3A (0.5 SG)
MPX-R (1 in. stem)
□
Z 5.5h x 3d in. Red Polyurethane (0.65 SG)
□ Y 5.5h x 3d in. Blue Polyurethane (0.94 SG)
□
X 5 in. Round 316L SS (0.52 SG)
□ W 5 in. Round 316L SS (0.92 SG)
□
V 6h x 3d in. Oval 316L SS (0.58 SG)
□ U 6h x 3d in. Oval 316L SS (0.94 SG)
□ T 3 in. Round 316L SS (0.60 SG)
□ S 3 in. Round 316L SS (0.94 SG)
□ R 5.5h x 2.8d in. Red Polyurethane (0.59 SG)
□
P 5.5h x 2.8d in. Blue Polyurethane (0.94 SG)
□ M 5.5h x 2d in. Red Polyurethane (0.57 SG)
□
L 5.5h x 2d in. Blue Polyurethane (0.94 SG)
D. Float 2 (optional)
Refer to float options in section C or
□ N None
E. Mounting Option and Size (ex. F2.5)
□ F Flat Face ANSI Flange 150# (size-2, 2.5, 3,
4, 5, 6 in.)
□ R Raised Face Flange 150# (size-2, 2.5, 3, 4,
5, 6 in.)
□
S 3A Sanitary ferrule (size-2, 2.5, 3, 4 in.)
□ P NPT Plug (size-1.5, 2, 2.5, 3, 4 in.)
□
N None
F. Mounting Adjustment
□
W Welded (fixed)
□ S Slide with Compression Fitting (adjustable)
G. Stem Material
□
A 304 SS (MPX-E)
□ B 316L SS (MPX-E, MPX-R)
H. Total Stem Length in Inches
□ MPX-E Min. 12 in. - Max. 153 in.
□ MPX-R Min. 24 in. - Max. 300 in.

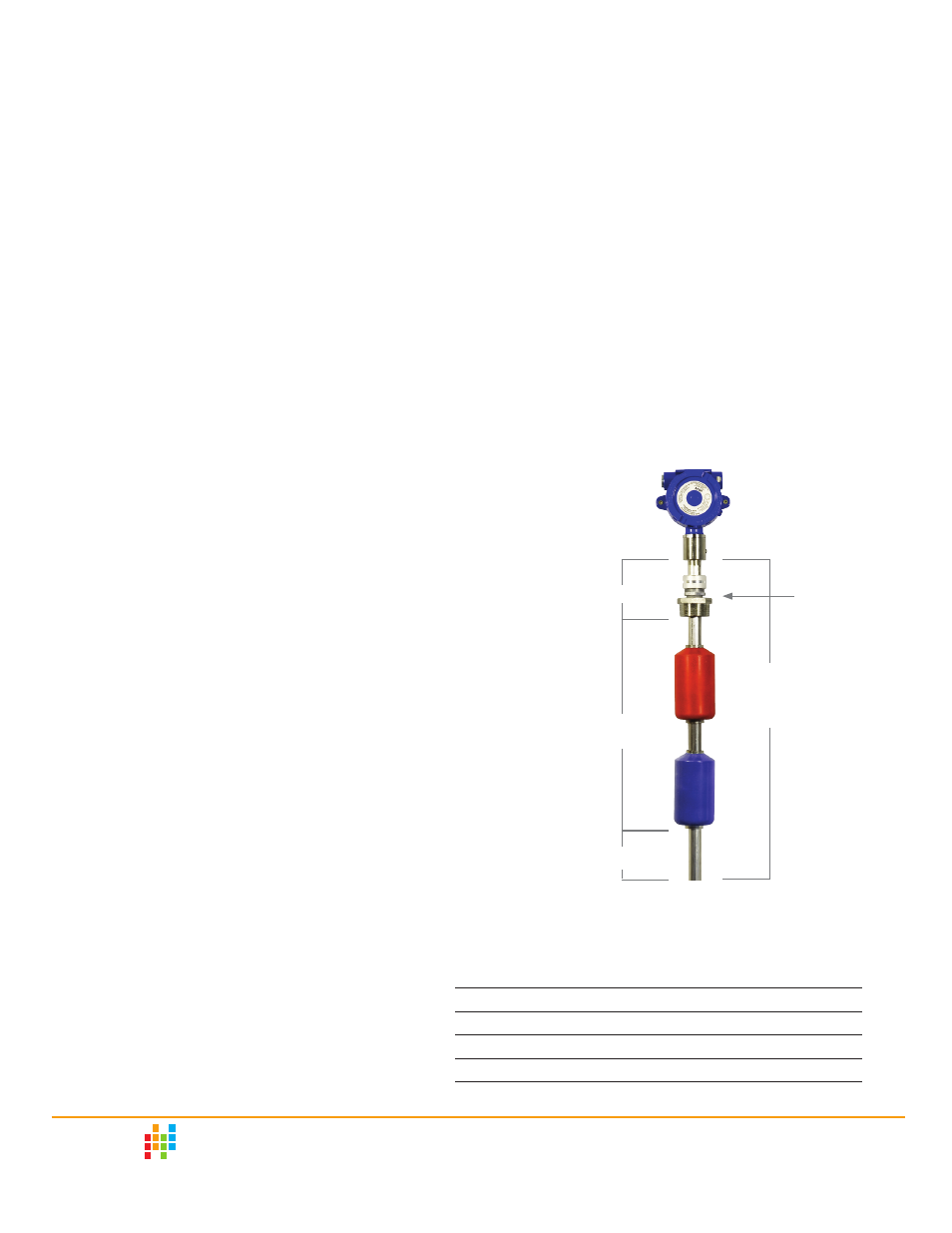

*Measurable length = stem length - top deadband - bottom deadband:
Top Deadband: MPX-E: 6 in.; MPX-R: 10 in.
Bottom Deadband: MPX-E: 1.5 in.; MPX-R: 8 in.
Top Deadband
Total Length
Measurable
Bottom Deadband
Slide with Compression
Fitting Pictured
MPX Accessories
Please order separately, by part number.
Description Part Number
Programming Module
RST-6001 (Modbus: MPX-x1)
125734
RST-4100 (4-20mA: MPX-x2, MPX-x3) 125759
*sold with 6 ft USB cable
For custom configurations call 1.88.525.7300
